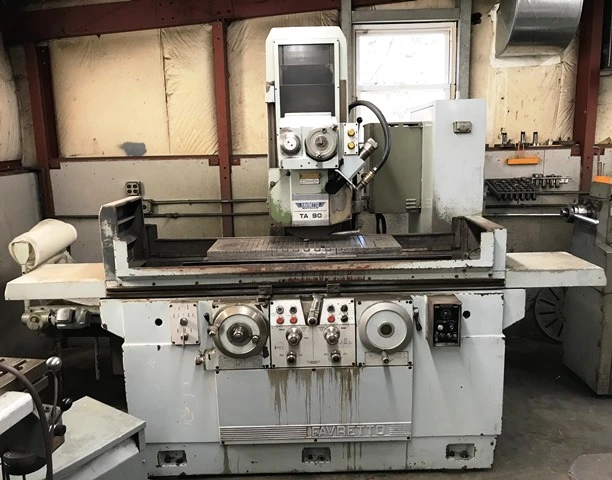

Favretto TA90 12" x 36"

35.4"
13.8" Grinding Width, 13.8" Grinding Height Over Table, 79 –
14" Grinding Wheel, 8Hp Spindle Motor, 12" x 36"
Neutrofier, Over The Wheel Dresser,
New 1973.

Max.
grinding length…………………………………… 35.4"
Max.
grinding width……………...…………………….. 13.8"
Max.
grinding height (over table)….…………………… 13.8"
Table
working surface………………………….. 35.4" x 11.8"
Max.
longitudinal travel………………………………… 38.6"
Stepless
speed…………………………………. 79 – 1380 ipm
Standard
grinding wheel………………………... 14" x 5" x 2"
Max.
cross travel………………………………………... 11.8"
Automatic
cross feed steps………………………. 0.04" – 0.4"
Automatic
continuous cross feed………………… 4 – 237 ipm
Spindle
motor…………………………………………… 8 Hp
Hydraulic
motor………………………………………… 3 Hp
Dimensions
(approx.)………………… 111"W x 53"D x 85"H
Weight
(approx.)…………………………………….. 7,600 lb.

12"
x 36" Walker electromagnetic chuck
Neutrofier
Over
the wheel dresser
Coolant
system with paper filter
