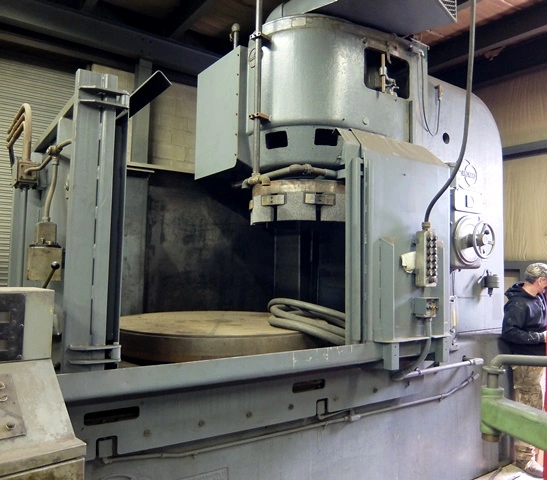

60" Magnetic
~30" Under Wheel, Segmented Wheel Chuck, 60Hp/3/60 440
Wheel Dresser, 4 Chuck Speeds, External Electric Box, Remade
Base is filled with Concrete, New in 1957, Reconditioned in
2016.
Magnetic
chuck size.......................................................... 60"
diam.
Wheel
chuck size ..............................................................
36" diam.
Max.
swing inside guards............................................................
78"
Max.
height under new wheel.....................................................
29"
Chuck
life (approx.)...................................................................
5/8"
Motor.......................................................................
60hp/3/60/440v
Weight
(approx.)............................................................... 60,000
lb.
Segmented
wheel chuck (8 segments)
Recently
scraped and slip sheeted(Turcite) table bearing surface
Recently
replaced guards
Recently
replaced electrical wiring
Concrete
filled base with channels for coolant wash-through
