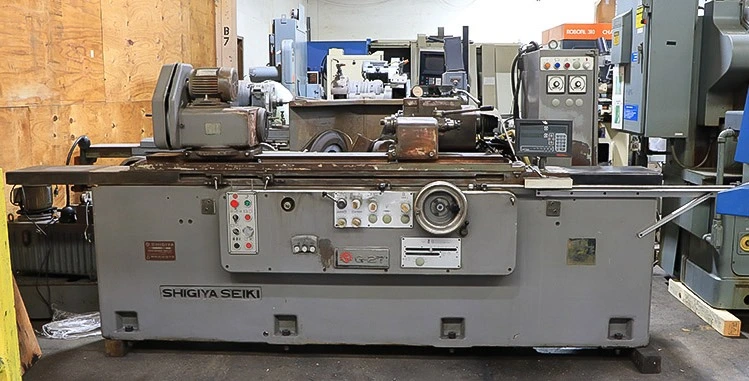

Shigiya GUA27-100 10.6" x 39"
Overview
Description
Sparkout & Timers, Plunge Grinding, Motor Driven
Tailstock, DRO, New 1984.
Specifications
Swing over table……………..…. 10.6"
Distance between centers…….… 39"
Wheelhead
Spindle
speed……………….… 1660/1880 RPM
Maximum
stroke………………... 8.5"
1 Revolution of
handwheel…….. 0.04"
Automatic infeed
Longitudinal
grinding (in/stroke). 0.00004 – 0.004
Plunge
grinding
(in/min)…….…. 0.0008 – 0.06
Wheel size……………………..… 14" x 1"-2" x
5"
Worktable swivel range(total)….... 7
Longitudinal table speeds……..…. 2 - 120 ipm
Workhead speeds (9)…………..… 20 - 380 rpm
Workhead swivel range(total)……. 120
Workhead spindle taper………..… #4 MT
Handle infeed rate
One
revolutuion…………...……... 0.04"
By
microfeed…………………….. 0.0001"
Tailstock quill taper………….….... #4 MT
Wheelhead motor……………......... 5hp/3/60/230/460
Workhead motor………………...… 0.4hp/3/60/230/460
Dimensions (approx.)……………... 150"L x 68"W x
61"H
Weight (approx.)……………….….. 9,250 lb.
Equipped With
Full automatic cycle
Independent sparkout timers for infeed and plunge
Adjustable table dwell
Optional coarse/fine infeed position control knob
Rapid wheel head advance/retract
Plunge grinding
Motorized workhead with dual live/dead spindle
and
hydrostatic
bearings
Digital readout
Automatic lubrication
Coolant system
Presently wired for 3/60/220
