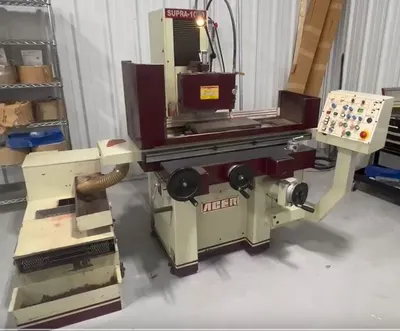

Acer Supra 1020AHD Hydraulic

10" x 20"
Incremental Down Feed, Over-the-Wheel
Coolant System, New 2001, VIDEO
AVAILABLE.

Capacity;
  Max.
grinding
length……...…………………...... 20"
  Max. grinding
width…………………………...... 11"
  Max.
distance
spindle center to top of table… 22.75"
  Max.
longitudinal
travel (hydraulic)………….. 23.2"
  Max.
longitudinal
travel (manual)…………..... 24.8"
  Max.
auto. cross
travel……………………...… 10.6"
  Max.
manual cross
travel…………………….. 11.75"
Table;
  Table
size……………………………..….. 10" x 20"
  Table
speed
(infinitely variable)………. 16 – 80 fpm
  Auto.
cross feed
increment…………….. 0.02" – 0.5"
  Cross
travel per
hand wheel revolution……….. 0.2"
  Cross
travel per
hand wheel graduation…….. 0.001"
Wheel head;
  Auto.
infeed……………………...
0.00005" – 0.002"
  Step
feed…………………………………... 0.00005"
  Rapid travel
(approx.)………………... 150 mm/min
  Slow travel
(approx.)………………..….. 6 mm/min
  Vert.
travel per
hand wheel revolution………... 0.05"
  Vert.
travel per
hand wheel graduation……... 0.0005"
  Grinding
wheel
size………………... 12" x 1.25" x 3"
Spindle motor…………………….. 5Hp/3/60/220/440
Dimensions (approx.)…………. 95"W x 57"D x
69"H
Weight (approx.)……………………………. 3,916 lb.


10" x 20" Fine line permanent magnet chuck
Incremental Down Feed
Coolant system
Over-the-wheel dresser
Hydraulic system
Work light
Manuals
