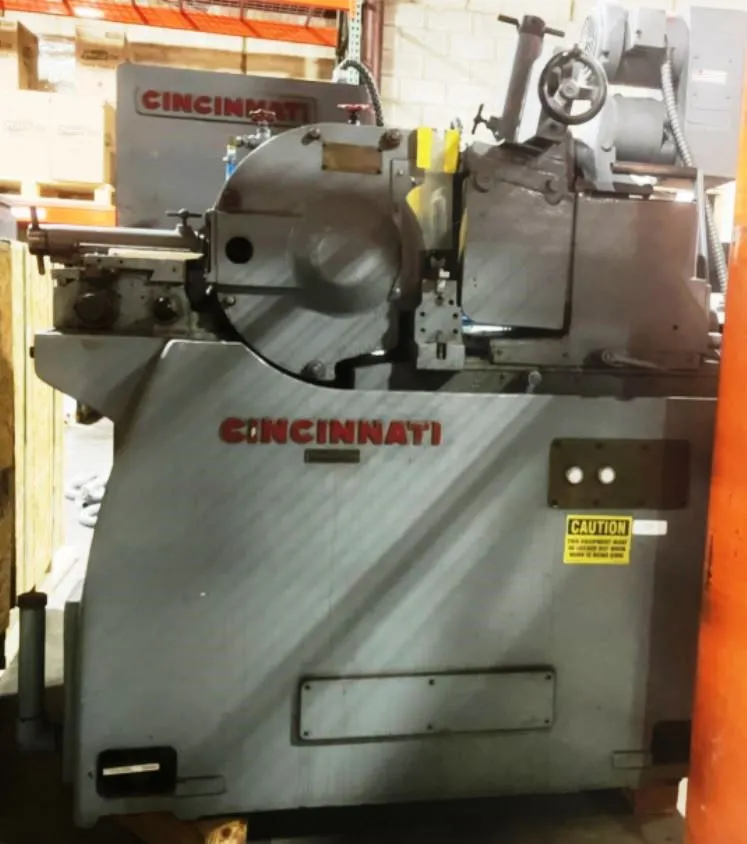

Cincinnati No.1 Centerless Grinder, New 1954

12" x 4" x 10" Wheel 7-1/2 Hp, Manual
Through-feed Workrest, Variable-speed
New 1954..

Capacity w/ std thrufeed & infeed work
rests... 0 – 1-1/2"
Grinding wheel –

Diameter……………………………... 12"min./16"max.

Width………………………………………….............. 4"

Hole..............................................................................
10"
Regulating wheel

Diameter………....................................…. 7"min./9"max.

Width……………………………………...........… 4"max.

Hole……………………………………...……… 4" diam.
  Recessed both
sides……………….... 5-1/2" diam. x 5/8"
Grinding wheel
motor............................................ 7-1/2 Hp
Regulating wheel motor………………………...… 1/2 Hp
Regulating wheel speed (infinitely variable).. 0
– 500 rpm
Electrics..................................................................
3/60/208
Dimensions
(approx.).............................. 63" x
61" x 50"H
Weight
(approx.).....................................................
4,560 lb.

Manual straight grinding wheel dresser
Manual straight regulating wheel dresser
Through-feed work rest
Variable-speed regulating wheel
