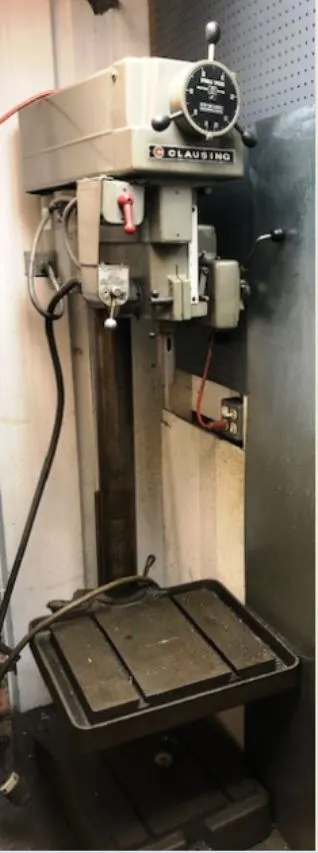

Model 2276, 1-1/8" Capacity in Cast Iron (7/8" in
Variable Speed, 150 2000 RPM, 1.5/.75 Hp 2-Speed Motor,
15.5" x 18" Height Adjustable Tee-slotted Table,
Procunier Tapping Head, New 1973.
Clausing model number…………………………………….. 2276
Drill capacity (C.I./Mild Steel)…………………….. 1.125"/.875"
Column to spindle center……………………………………... 10"
Spindle diameter……………………………………………. 1.74"
Spindle nose……………………………………………….. #3 MT
Spindle travel………………………………………………… 6.5"
Spindle speeds (variable, in 2 ranges)……..……. 150 – 2,000
rpm
Spindle to table (max.)…………………………………… 33.125"
Spindle to base (max.)…………………………………… 43.375"
Adjustable table surface……………………………… 15.5" x
18"
Base surface………………………………………….. 13" x 15.5"
Table & base tee-slots (2)………..…………………….. 1/2" @
9"
Motor…………………….. 1.5-.75Hp/3/50-60/208-220/1725/850
Dimensions (approx.)……………………… 22"L x 36"W x
69"H
Weight (approx.)………………………………………….. 717 lb.
Infinitely variable spindle speeds, in 2 ranges
Power spindle feed
Height adjustable table with oil trough
Hand crank for table elevation
Procunier 3/4" tapping head
