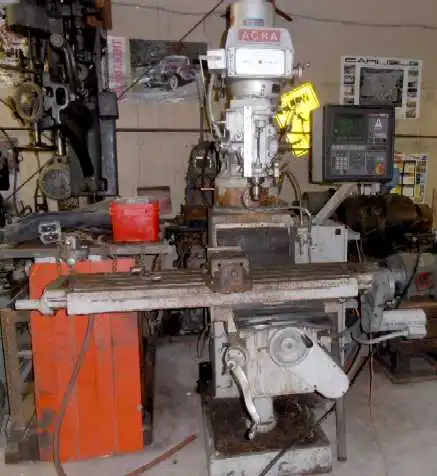

Acra CK 1-1/2 HK CNC Mill

Anilam
10" x 54" Table, 3HP, 33" Longitudinal
22" Vertical Knee Travel, 70-4200 RPM, 4" Riser Block,
Bridgeport 6" Vise, Glass Scales, Way Covers.

Table size…………………………………...... 10" x 54"
Longitudinal travel (X axis)………………..… 33"
Cross travel (Y axis)………………………… 16"
Quill travel (manual)……………………….…. 5"
Head swivel (left/right)……………………….. 90 deg.
Spindle to table top………………………..…... 0" -
22"
Spindle speeds……………………………….... 70-500 & 600-4200
rpm
Spindle motor………………………………… 3hp/3/60/220/440
Weight (approx.)……………………………... 5,100 lb.

Anilam Crusader Series M 2-axis CNC control
4" Riser Block
Way Covers
Miscellaneous toolholders
Bridgeport 6" vise
Coolant pump w/o tank

Please Note:
Head rebuilt 2017
Z Axis DRO built into CNC Control – NOT FUNCTIONING.
X Axis Servo Feed is welded but works fine.
