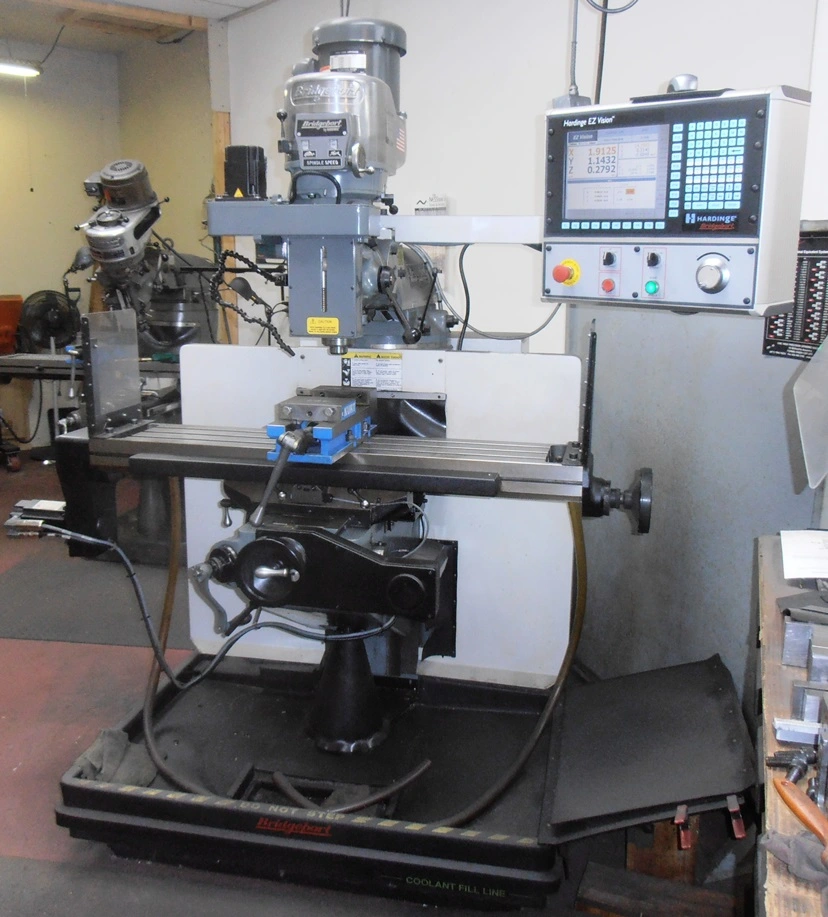

Bridgeport by Hardinge EZ Vision

Hardinge EZ Vision 3-Axis CNC

12"Y, 4.5"Z, 9" x 48" Table, 60 – 4,200 RPM Infinitely Variable
2 Hp Head, R8 Spindle, Miscellaneous Tooling,
Chrome ways, Coolant System, Ethernet Port, New
2006.

Table travel (X-axis)………………………………… 30"
Saddle travel (Y-axis) ……………………………. ... 12"
Quill travel (Z-axis)………………………………… 4.5"
Ram travel…………………………………………… 12"
Throat distance (min/max)………………....
6.75"/18.75"
Table to spindle nose (min/max)…………….
2.5"/18.25"
Table size…………………………………….…. 9" x 48"
Weight of workpiece (max)..………………..…… 300 lb.
Spindle taper……………………………………….… R8
Spindle speeds (low range)……………..… 60 – 500 rpm
Spindle speeds (high range)……………. 500 – 4200 rpm
Power quill feed drilling capacity…………………... 3/4"
Milling capacity (mild steel)………………………... 3/4"
Boring capacity (mild steel)…………………….... 6" dia.
Feed rate (X,Y)……………………………... 0 – 100 ipm
Spindle motor…………......... 2Hp/3/60/208/220/230/460
Floor area (approx.)……...……..… 98"W x 64"D x
82"H
Weight (approx.)……………………………….. 2,340 lb.

Hardinge EZ Vision CNC control with Ethernet port
Chrome ways and gibs
Miscellaneous tooling with collets
Automatic lubrication
Splash back
Rear way cover
Coolant system with pan
