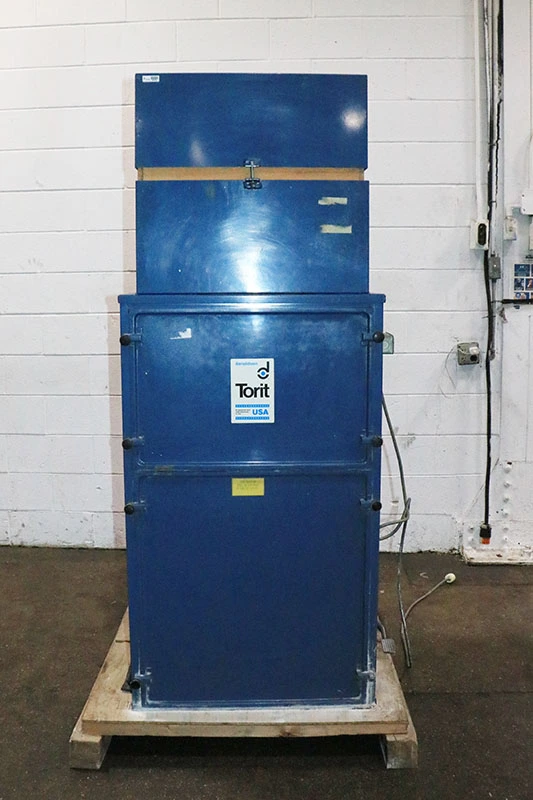

1Hp, Single Phase, 400 – 580
4" – 3-1/2" x 7-13/16"Inlet/Outlet Size, Foot-operated Shaker,
Silencer.
Nominal air
flow....................................
400-580 cfm
External static pressure (W.G.)………....
5.50"-4.70"
Velocity……......................................4528-6666 fpm
Standard inlet-outlet sizes.......... 4"-3 1/2"
x 7 13/16"
Motor.......................................... 1
Hp/1/60/115/230v
Filter cloth
area............................................. 150 sq ft
Dust storage
cap................................................ 2 cu ft
Dimensions (approx.)................. 29"L x
29"D x 48"H
Weight
(approx.).............................................. 340 lb.
Foot-operated shaker
Bags
Silencer
