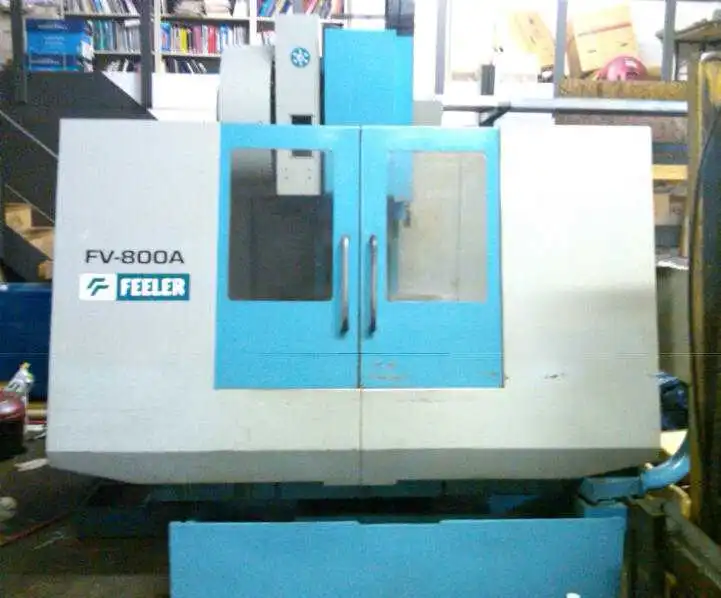

Feeler FV-800A Vertical Machining Center, New 1996
Overview
Description
31.5"-X, 17.5"-Y, 20"-Z,
Fanuc 0MC Control, 10HP High Torque
8,000 RPM, 20 ATC, CAT40 Taper, Rigid Tapping,
New 1996.
Specifications
Longitudinal travel
(X-axis)..................................... 31.5"
Cross travel
(Y-axis)................................................. 17.7"
Vertical travel
(Z-axis).............................................. 19.9"
Throat depth
(approx.).................................................. 19"
Maximum feed
rate............................................... 394 ipm
Rapid traverse X&Y.............................................
945 ipm
Rapid traverse
Z.................................................... 700 ipm
Table
size...................................................... 37.4" x
16.7"
Max. table load.....................................................
1,100 lb.
Spindle
taper........................................................... CAT40
Spindle
speed..................................................... 8,000 rpm
Spindle
motor……………......................................... 10hp
Dimensions (approx.)....................... 91"W x
94"D x 95"H
Weight
(approx.)................................................. 10,000 lb.
Equipped With
Fanuc 0MC CNC Control
New spindle with approximately 200 hours
Rigid tapping
Extra work offsets and background edit
20 Station swing-arm type automatic tool changer
Miscellaneous toolholders
2 Kurt vises
High torque motor
Coolant system
