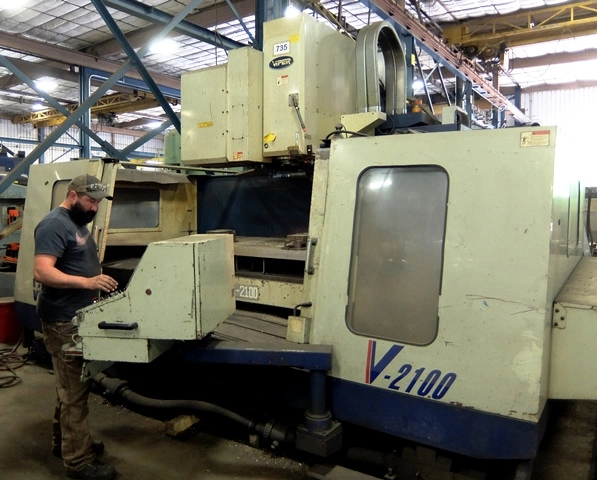

81"X, 41"Y,
CAT-50 Taper, 6,000
30 ATC, Dual Chip Conveyors, 30 Hp Spindle Motor, Geared Head,
Oil Chiller, Probe Receiver, Coolant Through
New 2000, VIDEO
AVAILABLE.
Table working surface……………………….… 41" x 83"
X-axis travel……………………………………..…… 81"
Y-axis travel………………………………………... 41.3"
Z-axis travel………………………………………….. 42"
Distance spindle centerline to column………….….…..41"
Max. table load (evenly distributed)………….… 6,600 lb.
Spindle taper…………………………………..… CAT-50
Spindle speed (max.)………………………….. 6,000 rpm
Cutting feed rate (max.)………………….……… 276 ipm
Rapid traverse rate………………….…………… 590 ipm
Spindle motor……………………………………… 30 Hp
Electrics………………………… 3/50-60/200-220/40kva
Floor area (approx.)…..…………………. 216"W x 200"D
Weight (approx.)…….………………………… 52,800 lb.
Mitsubishi "Magic 64" (KWS-980A) CNC control
Remote manual pulse generator
30 Station side-mount automatic tool changer
Geared head
Rigid tapping
Box ways
42.5" x 82.5" Sub-table
High volume coolant through spindle
Probe receiver (no probe)
Dual chip conveyors
Chiller
Work light
Manual
