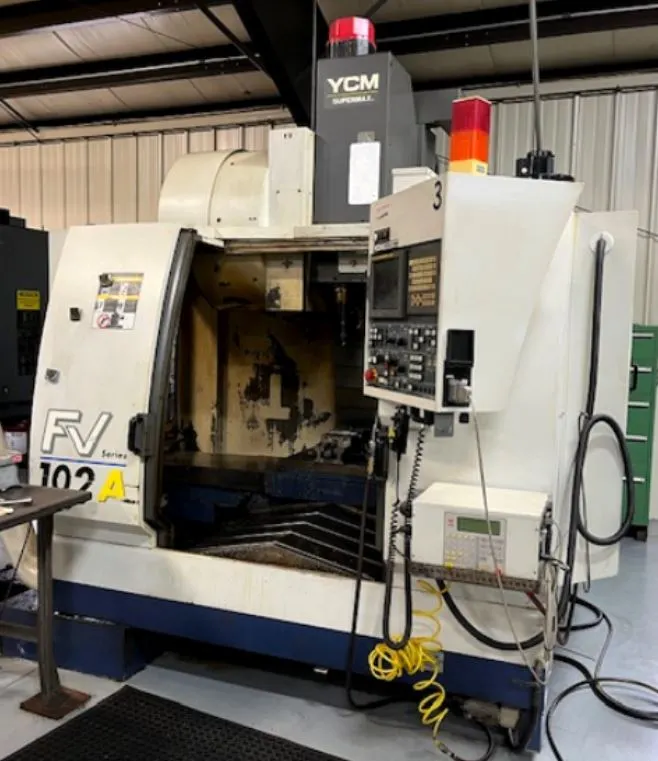

YCM FV102A CNC Vertical Machining Center
Overview
Description
40.2"X, 20.4"Y, 21.2"Z, CAT-40 Taper, 10K RPM,
24 Station Side-mount ATC, 5C Indexer with Servo Control, Chip
New 2003.
Specifications
Table size……………………..… 44" x 20.4"
Table capacity…………………...…. 1,100 lb.
X-Axis travel………………………..…. 40.1"
Y-Axis travel……………………….….. 20.4"
Z-Axis travel…………………………... 21.2"
Spindle nose to table top……..…. 4.7″ – 25.9″
Spindle center to column front………… 22.8″
Spindle taper……………………..… CAT-40
Spindle speed…………………… 10,000 rpm
Spindle motor…………………………. 20 Hp
Electrics……………………………. 3/60/220
Dimensions (approx.).. 114"W x 136"D x 115"H
Weight (approx.)…………...……… 11.800 lb.
Equipped With
Fanuc MXP-200i CNC control with RS232C
Ethernet
ports
and Remote MPG
24-Station side mount automatic tool changer
Rigid tapping
Yuasa 5C indexer with servo control
Spindle oil chiller
Chip auger
Mist collector
Coolant pan with oil skimmer
VISES SHOWN IN PHOTOS ARE NOT INCLUDED
