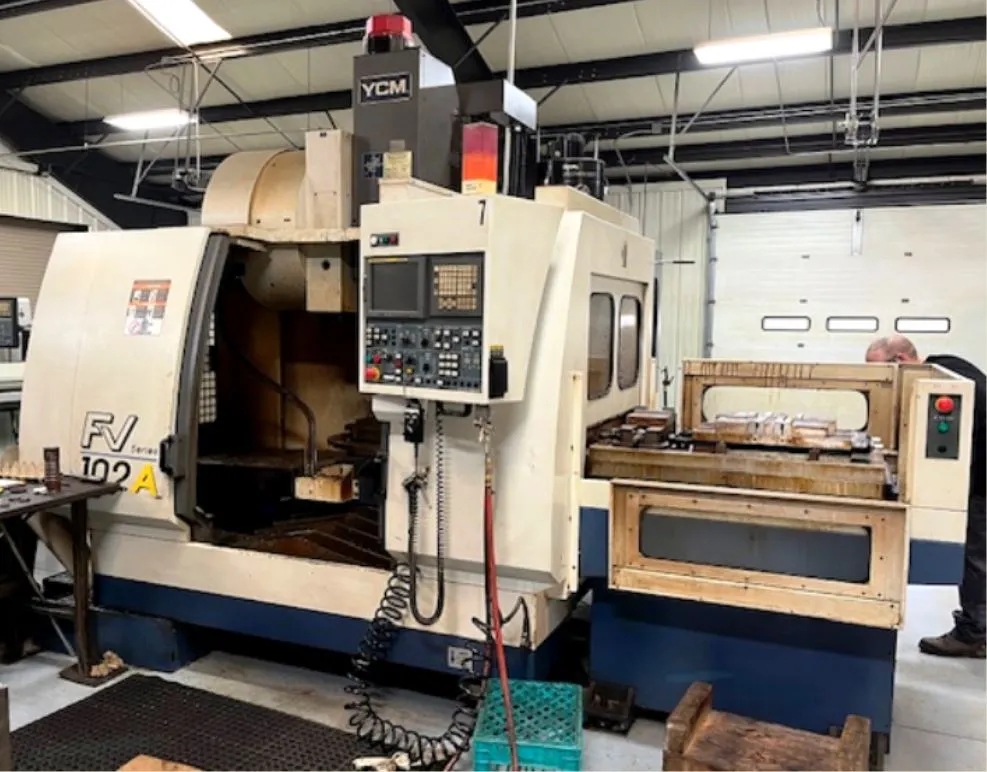

YCM FV102A CNC Vertical Machining Center
Overview
Description
40.2"X, 20.4"Y, 21.2"Z, CAT-40 Taper, 12K RPM,
24 Station Side-mount ATC, Pallet Changer wih Two 18.75" x 39"
Rigid Tapping, Chip Conveyor, New 2004, VIDEO
AVAILABLE.
Specifications
Table size……………………..… 44" x 20.4"
Table capacity…………………...…. 1,100 lb.
X-Axis travel………………………..…. 40.1"
Y-Axis travel……………………….….. 20.4"
Z-Axis travel…………………………... 21.2"
Spindle nose to table top……..…. 4.7″ – 25.9″
Spindle center to column front………… 22.8″
Spindle taper……………………..… CAT-40
Spindle speed…………………… 12,000 rpm
Spindle motor…………………………. 20 Hp
Electrics……………………………. 3/60/220
Dimensions (approx.). 174"W x 136"D x 115"H
Weight (approx.)…………...……… 15.500 lb.
Equipped With
Fanuc MXP-200i CNC control with RS232C
Ethernet
ports
and Remote MPG
24-Station side mount automatic tool changer
Pallet Changer
(2) 18.75" x 39" Pallets
Rigid tapping
Spindle oil chiller
Chip auger
Mist collector
Coolant pan with oil skimmer
VISES SHOWN IN PHOTOS ARE NOT INCLUDED
