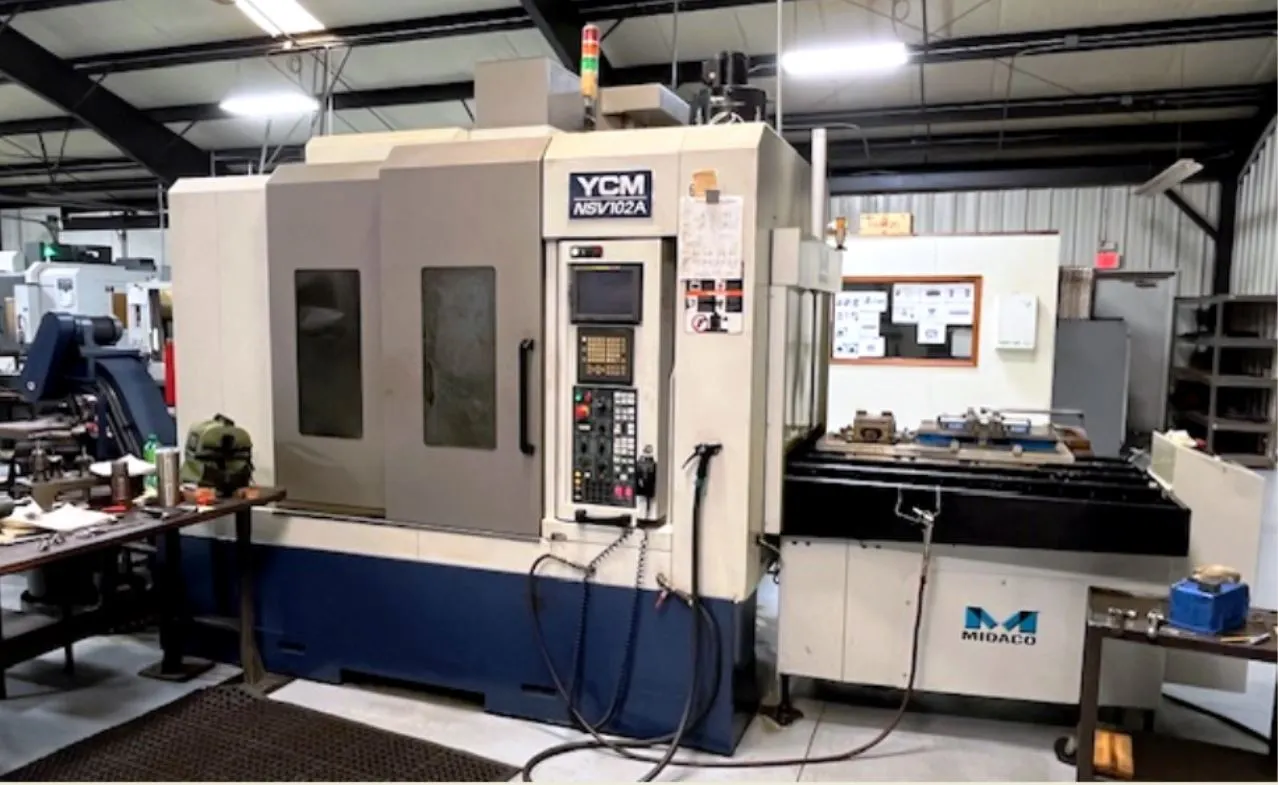

YCM NSV102A CNC Vertical Machining Center, New 2006
Overview
Description
40.16"X, 23.62"Y, 23.62"Z, Midaco Pallet
CAT-40 Taper, 12K RPM, 30Hp, 30
Chip Conveyor, New 2006, VIDEO
AVAILABLE.
Specifications
Table size………………… 41.06" x 20.59"
Table capacity………………...…. 2205 lb.
X-Axis travel………………………. 40.16"
Y-Axis travel………………………. 23.62"
Z-Axis travel……………………..... 23.62"
Spindle taper……………………... CAT-40
Spindle speed………………… 12,000 rpm
Spindle motor………………………. 30 Hp
Electrics…………………………. 3/60/220
Weight (approx.)…………....…... 20,000 lb.
Equipped With
Fanuc MXP-200i CNC control with RS232C &
Ethernet
ports
Remote MPG
30-Station side mount automatic tool changer
Midaco ModelA40SD pallet changer
(2) 19" x 40" Pallets
Rigid tapping
Spindle oil chiller
(2) Chip augers
Chip conveyor
Coolant pan with oil skimmer
VISES SHOWN IN VIDEO AND PHOTOS ARE NOT INCLUDED
