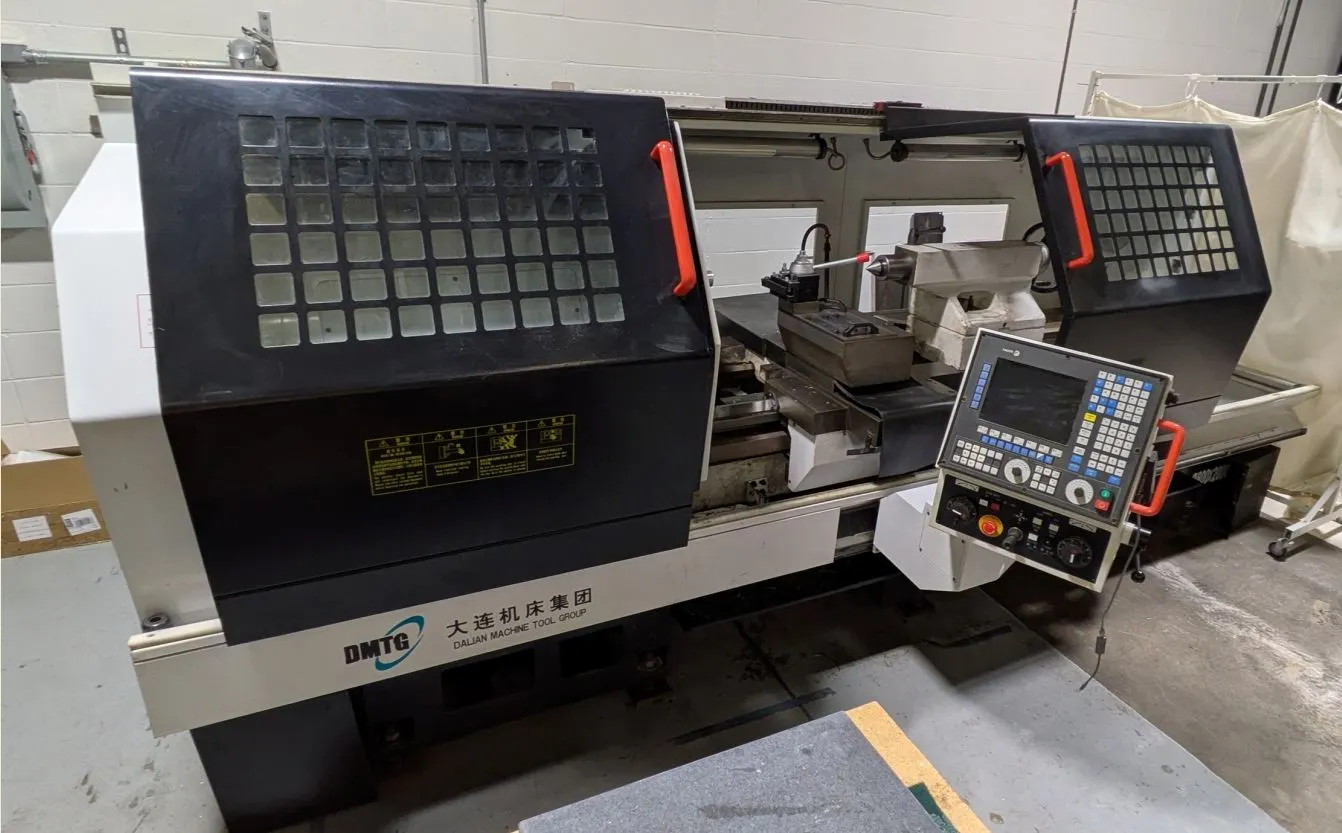

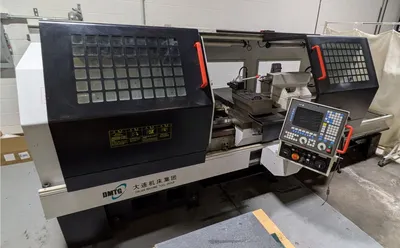

DMTG 31 x 79 CKE6180Z Flat Bed CNC Lathe, New 2011.
Overview
Description
40 – 1,000 RPM, 15 Hp, 16" 3-Jaw Chuck, 20"
Quick Change Tool Post, 6-Position Vertical Turret, Tail
Steady Rest,
Manual, 3.9" H.I.S. Extended X-axis, New 2011.
Specifications
Swing over
bed........................................ 31.5" (800mm)
Max. length of workpiece.....................
78.7" (2000mm)
Swing over cross
slide............................. 19.3" (490mm)
X-travel
(approx.)....................................... 18" (457mm)
Z-travel..................................................
70.5" (1790mm)
Spindle
nose.............................................................. C11
Spindle
bore............................................... 3.9" (100mm)
Spindle speeds (inf variable in 4 steps)... 40 –
1,000 rpm
Spindle
motor........................................................... 15 Hp
Rapid traverse (X/Z).................... 157/315
ipm (4/8 mpm)
Turret tool changing
time.......................................... 3 sec.
Tailstock quill
travel.................................... 9.4" (240mm)
Tailstock quill
taper................................................... #5MT
Dimensions (approx.)……............. 178"W x 80"D
x 75"H
Weight (approx.)……………………………........ 13,420 lb.
Equipped With
Fagor 8055TC CNC control
with RS232
16" 3-Jaw chuck
20" Face plate
Shars model 444 tool post (Aloris-style)
6-Position vertical turret (currently off machine)
Tail stock
Steady Rest
Coolant System
Manual
