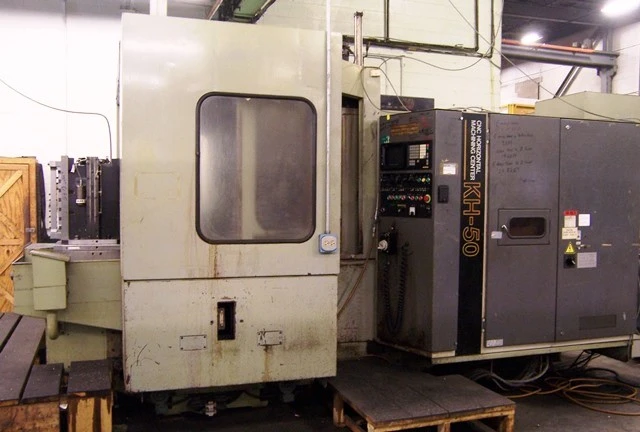

Kuraki KH-50 CNC Horizontal Machining Center, New 1987

Fanuc 11M CNC Control, 4.33" Spindle Diameter,
23.6"Y,
Twin 19.7" x
1 Degree Indexing Table,
6,000 RPM Spindle, 60 Station Automatic Tool
10 Hp, Spider Cool Programmable Coolant Nozzle, Rigid Tapping,
New 1987, VIDEO
AVAILABLE.

 Longitudinal table travel
(X-axis)……………………………… 28.3"
Vertical spindle head travel (Y-axis)……………………………
23.6"
Cross column travel (Z-axis)…………………………………… 23.6"
Table working surface………………………………….. 19.7" x
19.7"
Min. table index angle………………………………………….. 1 deg.
Spindle centerline to table top
(min/max)…………..…….
1.9" / 26.5"
Spindle nose to table center (min/max)………………..….
5.9" / 25.6"
Max. table load…………………………………….………… 1,760 lb.
Spindle taper………………………………………………….. CAT-50
Spindle speeds……………………………………….... 30 - 6,000 rpm
Cutting feeds……………………………………..….… 0.04 - 197 ipm
Rapid traverse………………………………………………… 590 ipm
Max. tool size (diam / lgth)……………………………….. 4.3" /
15.7"
Max. tool weight………………………………………….……... 44 lb.
Spindle motor (cont./50% ED)…………………………………. 10 Hp
Electrics………………………………….….. 3ph/60Hz/220v/60KVA
Dimensions (approx.)………………………. 144"W x 236"D x
118"H
Weight
(approx.)……………………………………………. 22,000 lb

Fanuc 11M CNC Control w/ internal RS-232-C
& Remote
MPG
60 Station automatic tool changer
Twin pallet changer
Spider Cool programmable coolant nozzle
Rigid tapping
Dual chip augers (front & back)
Chip pan with oil skimmer
Enclosure
Manuals
