NEW SOITAAB LINEATECH
Overview

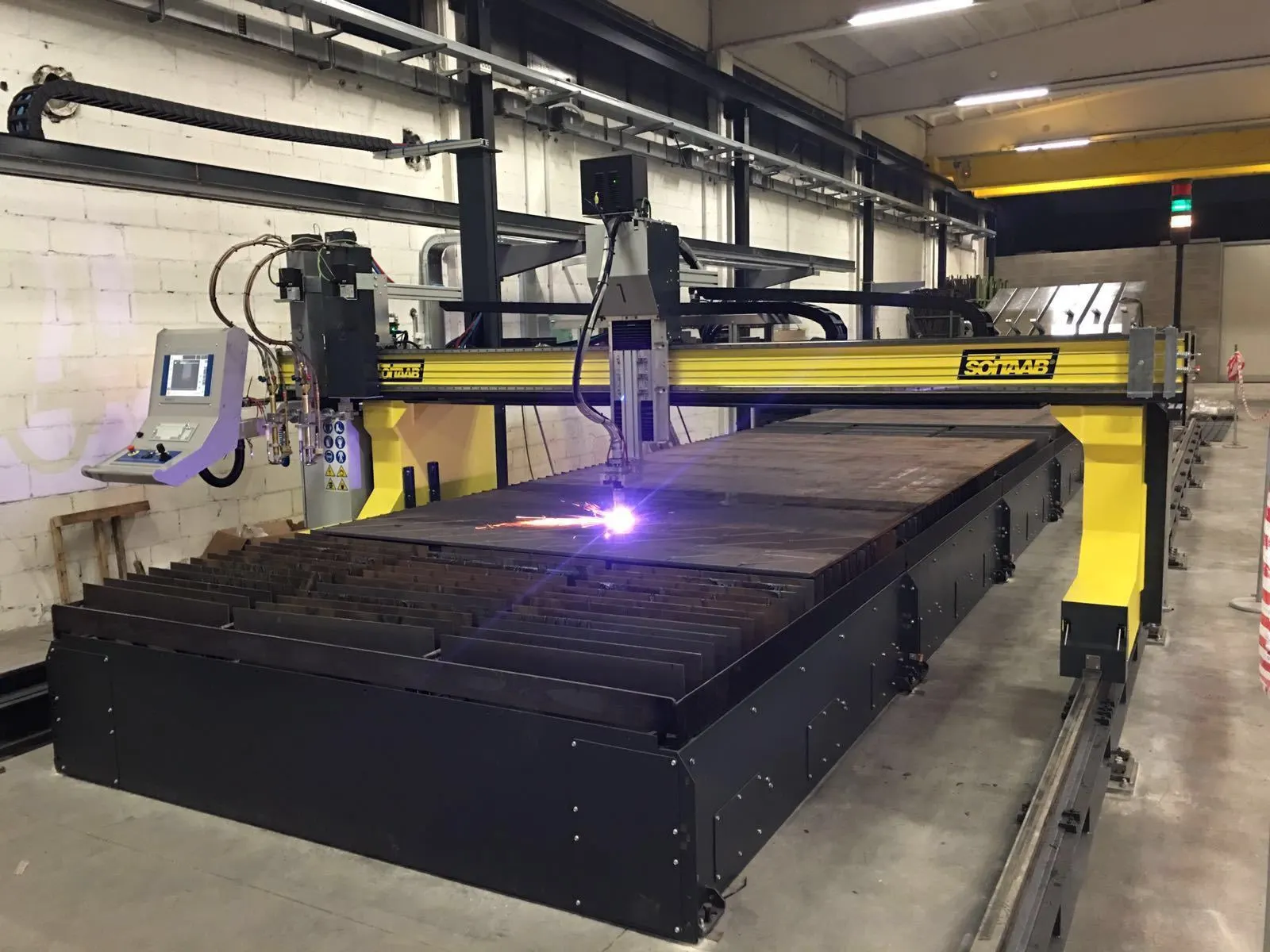

The LineaTech RED model consists of double beam structure and a front transverse slide through carriages on two linear guides complete with a rear reinforcement.
LineaTech RED offers a wide range of applications such as flame cutting, plasma cutting, marking, and an integrated drilling station to pre-drill start holes on thicker materials.
LineaTech RED has dual-side drives with brushless motors and digital drives in an absolute coordinate system. The systems movement is achieved by mating rack and pinion and floating device with a preloaded spring to assure high accuracy positioning with minimum backlash.
MAIN FEATURES
• Can be equipped with up to 6 oxyfuel and 2 plasma stations
• Total beam width of up to 5.5 m, and depending on the number of work stations, covers a useful cutting width up to 4.5 m
• Automatic oxyfuel gas distribution via 3 fully proportional valves controlled by CNC
• Optional high-definition plasma cutting with automatic gas control make LineaTech RED ideal for cutting complicated shapes, holes of small diameters, slots, and fine details
• The CNC II can be enhanced with a database for plasma cutting parameters
• Library of 30 shapes with fixed cutting parameters expandable to 78 shapes
• LCD control panel with 15 in TFT color touch screen
Specs
Rail span (min-max): 9.8 ft up to18 ft (3.0 m up to5.5 m)
Machine length: 6.5 ft (2.0 m)
Machine use length with 4 m rails: 6.5 ft (2.0 m)
Longitudinal rails beam support: HEB - STD 4.75 in. (120 mm)
Transversal beam construction: Double
Transversal guides: Roller-bearing guides
Rack: Vertical teeth
Longitudinal drive motor: Dual side drive
Displacement speed: 787 ipm (20 m/min)
Quality standard: ISO 9013 e EN DIN 28 206
Max no. of master carriage: 2
Max no. of slave carriage (plasma): 1
Max no. of slave carriage (oxy): 6
Double master: 2 plasma (or 1 plasma + 1 oxy)
Gas distribution (oxy): Automatic
Max cutting thickness (oxy): 10 in. (250 mm)
Gas for oxy flame: Oxygen, propane, methane, acetylene
Max plasma power: Up to 400 amps
Bevel plasma: Yes
Bevel oxy: MR + -90°
Drilling unit type: ISO 30 for pre-hole
Changing tools type: Manual, pneumatic
Tubocut type: Manual lifting
Pipe diameter: 3 in. - 20 in. (76 mm - 500 mm)
Absolute coordinate: Optional
CNC type: Soitaab II
Parametric shape library: Standard 30 (Optional 78)
Database (oxy + plasma): Optional
