USED 1996 SCOTCHMAN FI5109-14M
Overview

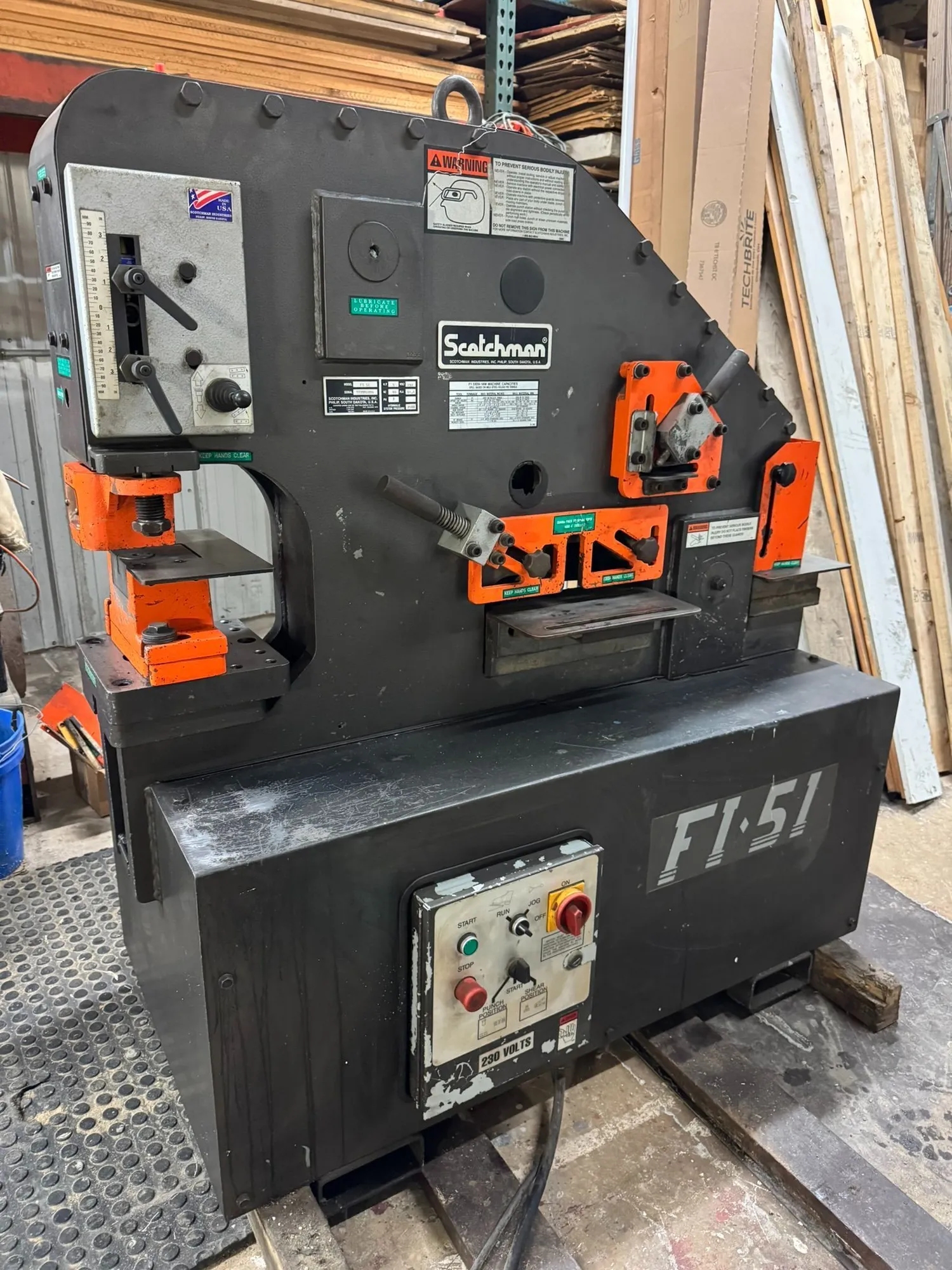

For sale: Used Scotchman 51-ton hydraulic ironworker, model FI5109-14M, from 1996. Features 51-ton punching capacity, 9" throat depth, and shear capabilities for flat bar and angles. Includes adjustable stripper, remote foot pedal, and more.
Specs
Brand: Scotchman
Model: FI5109-14M
Specifications (Capacities & specifications rated on 65,000 PSI Tensile)
Throat depth: 9”
Punching capacity: 51 ton, 1-1/32” thru 5/8” (1-1/4” maximum diameter)
Flat bar shear: 14” length
1” x 6”
3/4” x 10”
5/8” x 12”
3/8” x 14”
Angle shear @ 90°: 5” x 5” x 3/8” and 4” x 4” x 1/2”
@ 45°: 4” x 4” x 1/2”
Rectangle Notcher: 2-1/2” x 5” x 5/16” (2-1/2” x 2-1/2” x 3/8” vee by rotating material)
Strokes per minute: light gauge 37, 14 under full load
Hydraulics: 2,500 PSI
Motor: 5 H.P.
Voltage: 230 / 440 volt currently wired 230 volt 3 phase
Dimensions: 28” width x 59” length x 61” height
Weight: 3,150 lbs.
Equipped With
Adjustable stripper on punch
Remote foot pedal
Bar shear support table
Die holder complete w/2” die insert
Adjustable stroke controls w/electric limit switch
Punch table
Machine sold As-Is
