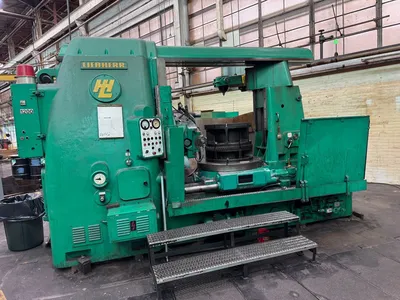

USED 1971 LIEBHERR L-1200
Overview
Description

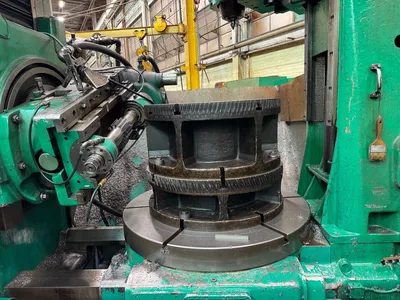

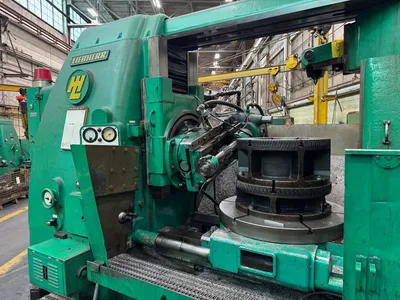

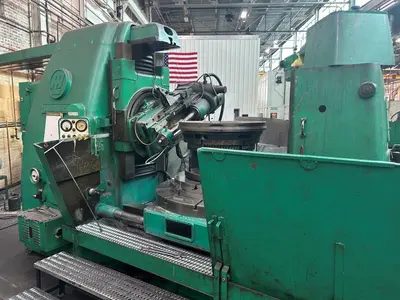

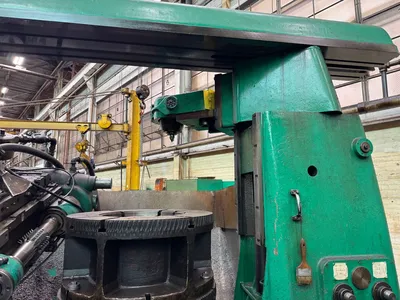

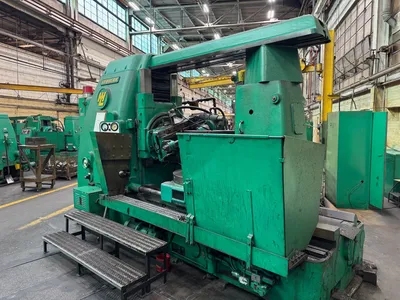

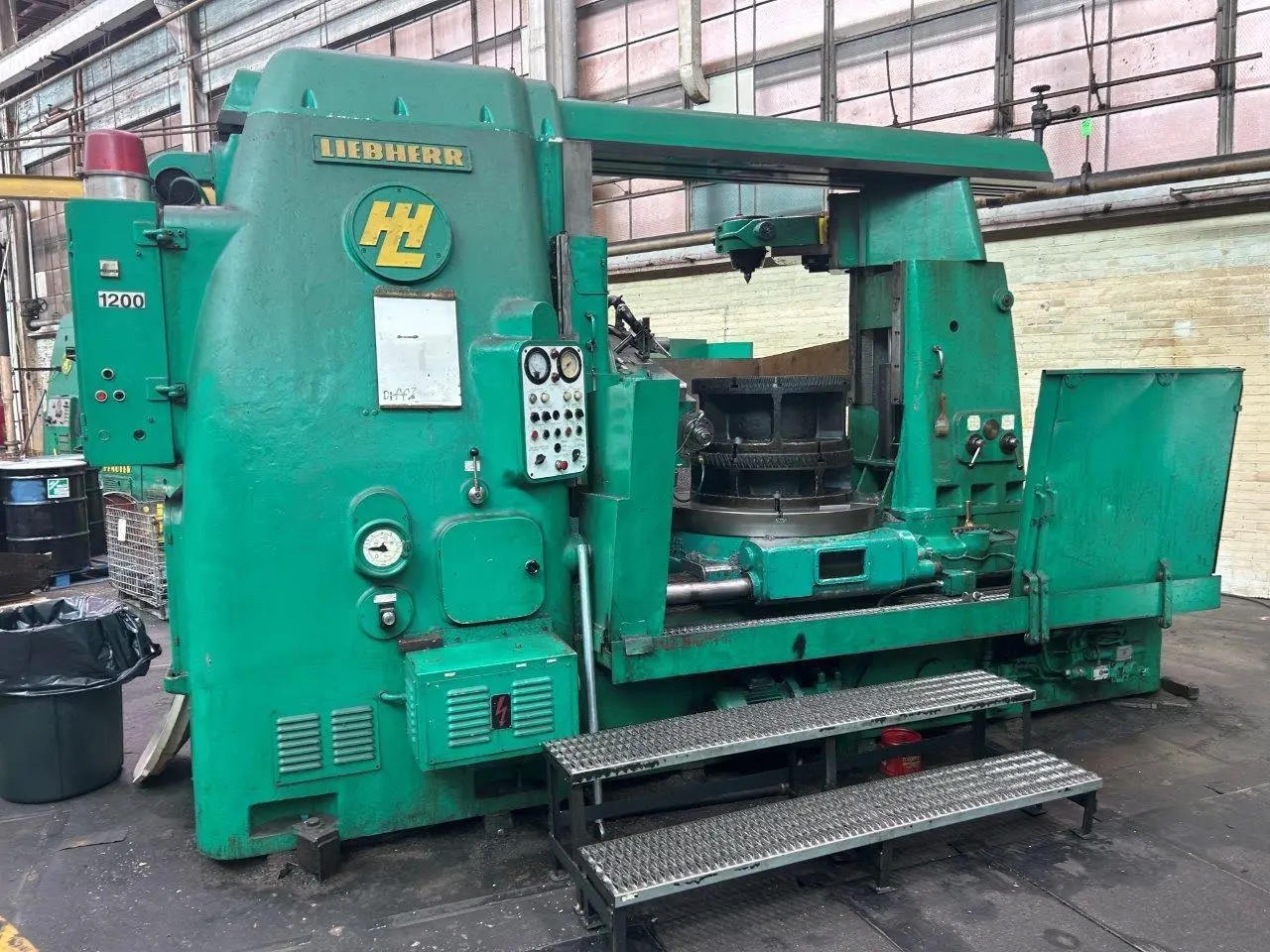

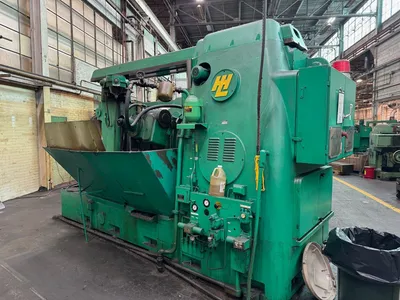

LIEBHERR L1200 Vertical Gear Hobber, 1970 model, for sale. Specs: max workpiece diameter 1200 mm, axial travel 525 mm, hob speed 174 RPM. Equipped with arbor support, coolant, change gears, risers, and more. Ideal for precision gear manufacturing.
Specifications
| Maximum Workpiece Diameter | 1,200 mm | 47.244" |
|---|---|---|
| Horz/Vert | Vert | Vert |
| Maximum Diametral Pitch | 2 | 2 |
| Module | 12 | 12 |
| Axial Travel | 525 mm | 20.669" |
| Maximum Hob Diameter | 240 mm | 9.4488" |
| Hob Arbor Size | 2" | 50.8 mm |
| Hob Speed | 174 RPM | 174 RPM |
| Table Diameter | 1,050 mm | 41.339" |

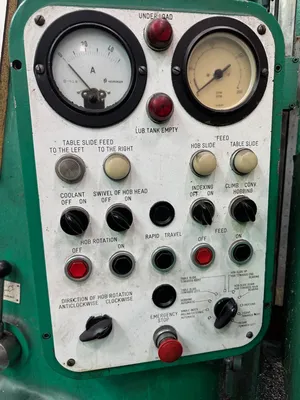

| Control Manufacturer | Conventional | Conventional |
| Dimensions | 190" L x 90.5" W x 114" H | 190" L x 90.5" W x 114" H |
| Weight | 40,000# | 40,000# |
Specifications:
Maximum Gear Diameter: 1200 mm
Maximum Gear Face Width: 525 mm
Maximum Module: 12
Maximum Diametral Pitch: 2
Maximum Hob diameter: 240 mm
Table Diameter: 1050 mm
Equipped With
42" T-Slotted Table
Single Index
Differential
Hob Arbor
Double Cut

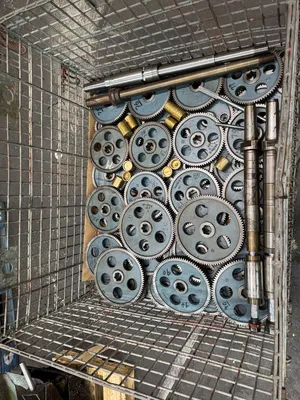

Change Gears
Swing Away Tailstock
Risers
Coolant
