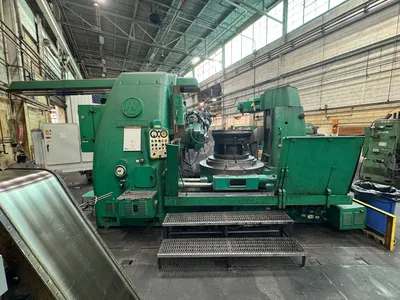

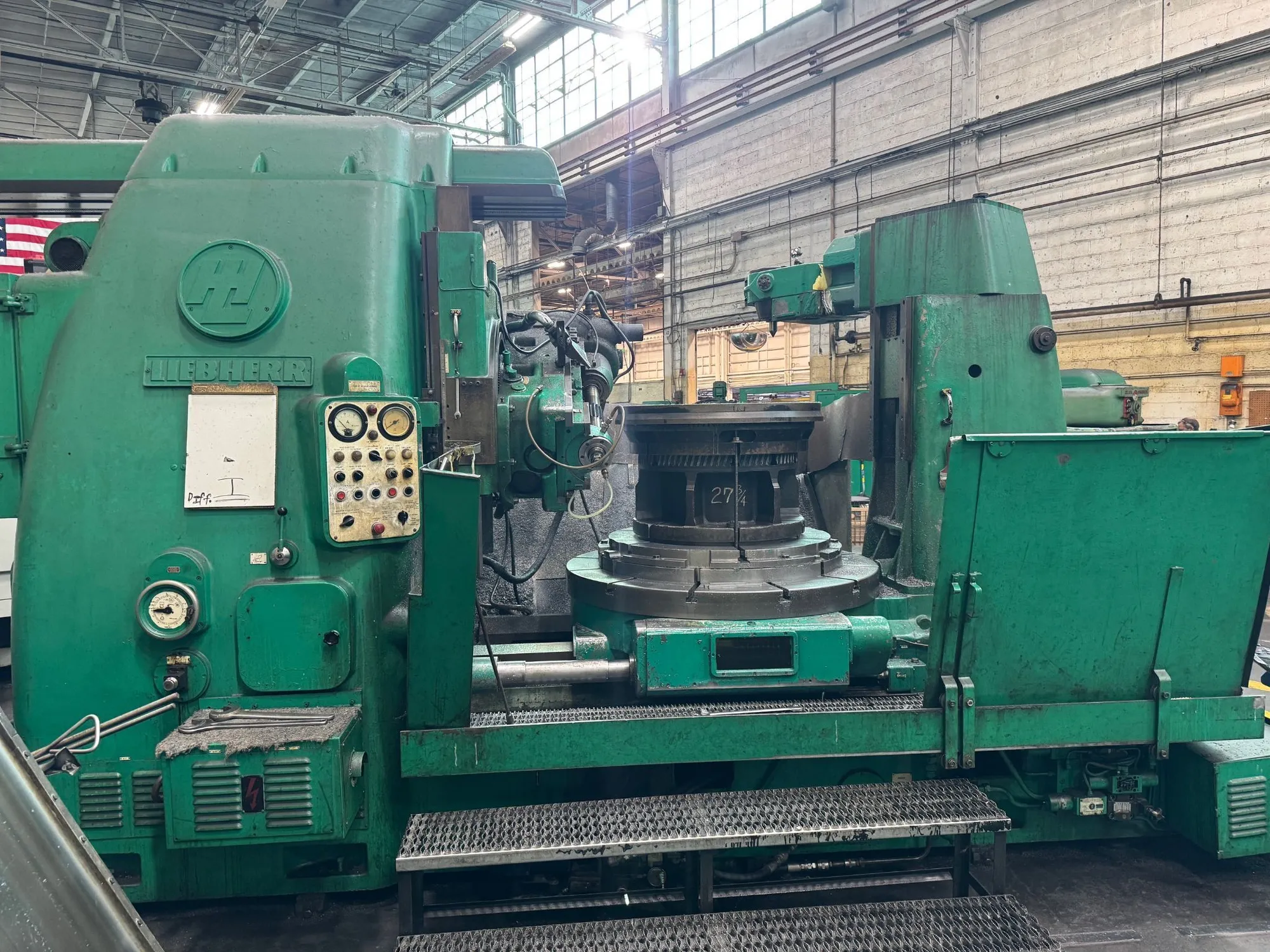

LIEBHERR L1500 Vertical Gear Hobber. Max workpiece diameter 1500 mm, axial travel 575 mm, hob speed 29-174 RPM. Equipped with differential, overarm, coolant system, swing away tailstock, and extra hob arbors. Ideal for precise gear cutting.
| Maximum Workpiece Diameter | 1,500 mm | 59.055" |
| Horz/Vert | Vert | Vert |
| Maximum Diametral Pitch | 2 dp | 2 dp |
| Module | 12 | 12 |
| Axial Travel | 575 mm | 22.638" |
| Maximum Hob Diameter | 250 mm | 9.8425" |
| Hob Arbor Size | 2" | 50.8 mm |
| Hob Speed | 174 RPM | 174 RPM |
| Table Diameter | 1,370 mm | 53.937" |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 190" L x 91" W x 114" H | 190" L x 91" W x 114" H |
| Weight | 45,000# | 45,000# |
Specifications:
Max. Gear Diameter : 1500 mm
Gear Face Width: 575 mm
Max. Module : 12
Table Diameter : 1370 mm
Maximum Hob/Worm Diameter: 245 mm
Centre Distance of spindles min./max. : 95/885 mm
Table bore diameter : 200 H6, MK6 mm
Feeds – axial : 0,6-9 mm/U
Feeds – radial : 0,2-12 mm/min
Feeds – tangential : 0,31-4,5 mm/U
Hob Speed : 29-174 RPM

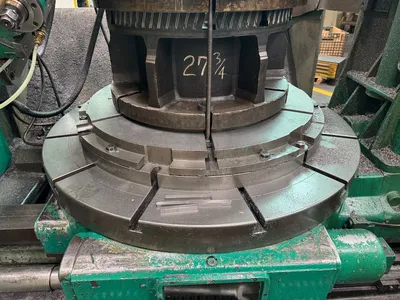

54" T-Slotted Table
Single Index
Differential
Hob Arbor
Risers
Change Gears
Swing Away Tailstock W/Center
Overarm
Copy Hobbing
Hydraulic System
Coolant System
Levelling Pads
460-3-60 Electrics
