22" x 16" x 17", 40 Taper, Fanuc MXP200 CNC
| size | 22" x 16" x 17" | 22" x 16" x 17" |
| X Travel | 22.05" | 560.07 mm |
| Y Travel | 16.14" | 409.96 mm |
| Z Travel | 17.72" | 450.09 mm |
| # ATC | 40 | 40 |
| Taper | 40 | 40 |
| Table-W | 16.54" | 420.12 mm |
| Table-L | 27.56" | 700.02 mm |

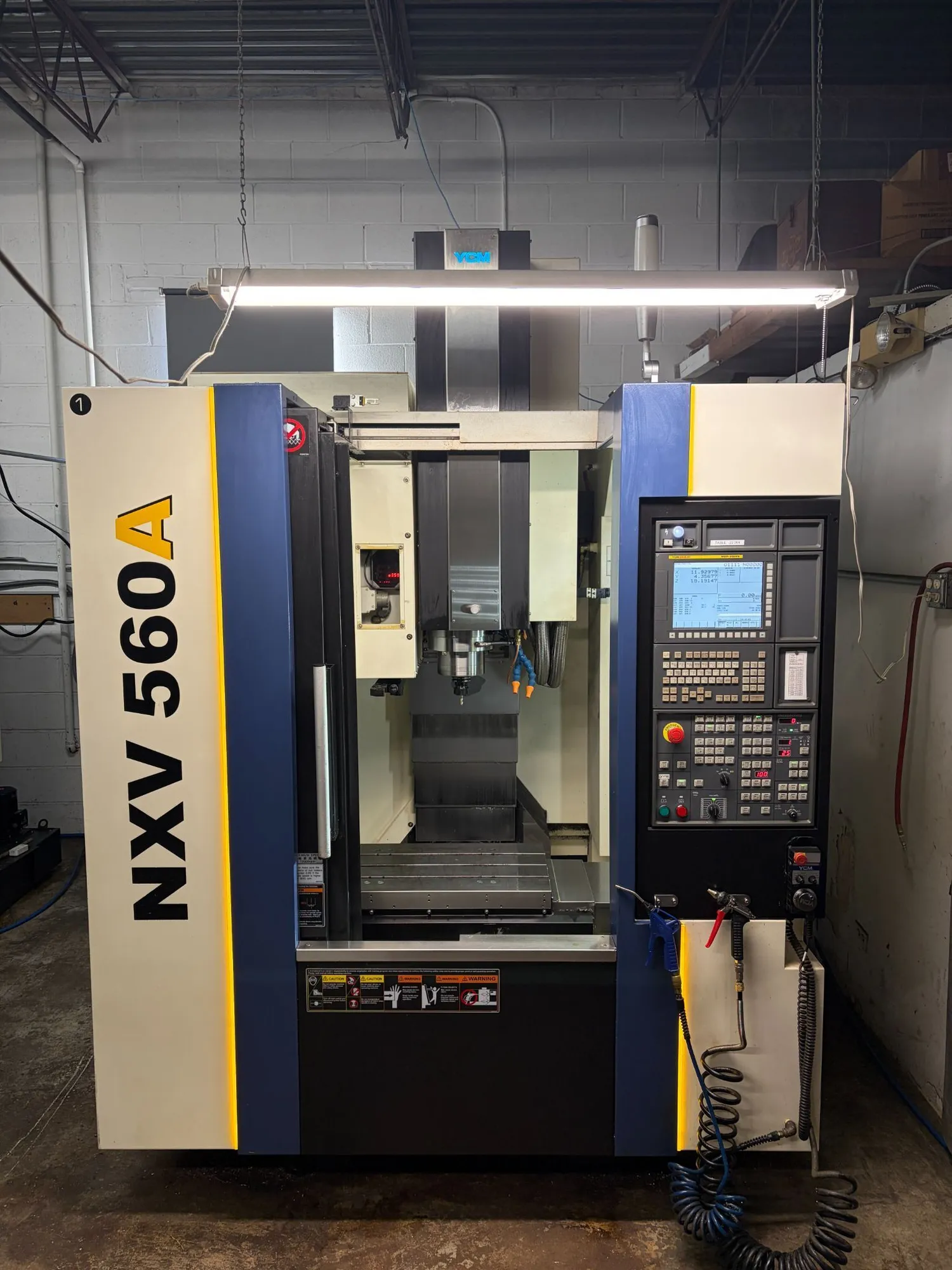

YCM NXV 560A Vertical Machining Center (2016)
Table Size: 22.05" x 16.14"
X-Travel: 22.00"
Y-Travel: 16.10"
Z-Travel: 17.70"
Rapid Traverse: 1890 IPM
Cutting Feed Rate: 787 IPM
Spindle
Spindle Taper Type: CAT#40
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Spindle Nose to Table Top: 0.98-18.7"
Fanuc MXP200FX CNC
40 Position Side Mount Tool Changer
Built November 2016 / Purchased and Installed in 2017
Job Shop Environment / Ran some steel and aluminum
