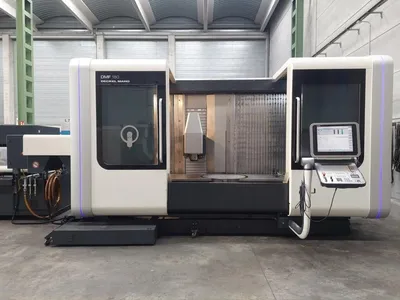

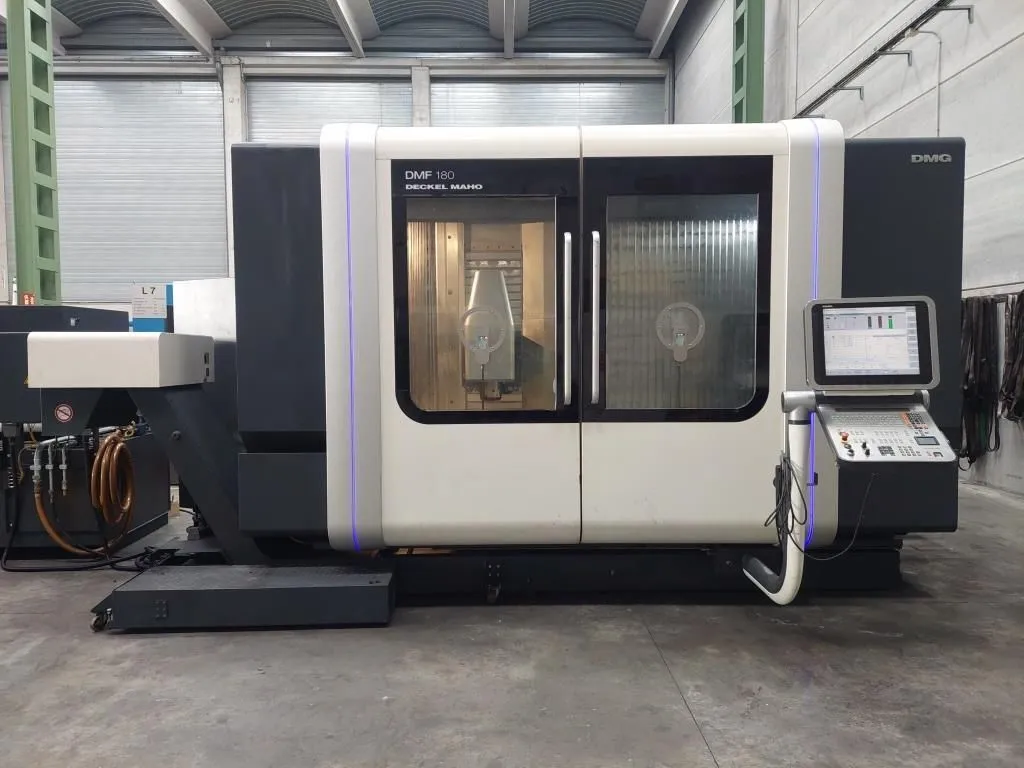

USED 2010 DMG MORI DMF 180
Overview
DECKEL MAHO machining centers are highly renowned throughout Europe. This German brand has been manufacturing both machining centers and lathes for many years and is well established in the railway and aerospace industries, as well as in the mould, die-making, and general machining sectors. DECKEL has always delivered machines with proven German reliability and a well-established reputation.
This machining center is equipped with a HEIDENHAIN 530 control and was manufactured in 2010. It is in excellent working condition and available for immediate delivery.
Specs

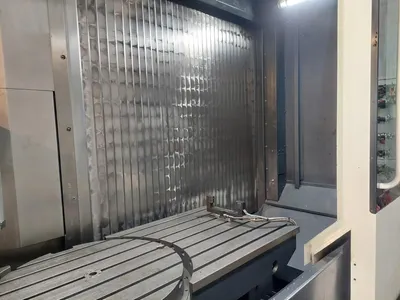

Fixed table surface: 2100 x 700 mm
Max. load on fixed table: 1500 kg

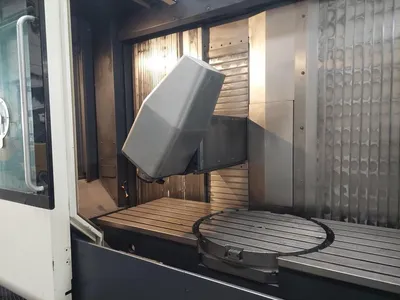

Rotary table dimensions: Ø 750 mm (C axis), integrated in the center of the work area
Rotary table rotation (C axis): 360°
Max. load on rotary table: 500 kg
X-axis travel: 1800 mm
Y-axis travel: 700 mm
Z-axis travel: 700 mm
Spindle taper: ISO 40
Spindle speed range: 20–18,000 rpm
Main motor power: (40%–100%) 35–25 kW
Rapid traverse (X, Y, Z): 40 m/min
Feed rate (X, Y, Z): 40 m/min
Approx. machine weight: 14,000 kg
Machine dimensions: 5553 x 3420 x 2693 mm
Year: 2010
Equipped with:

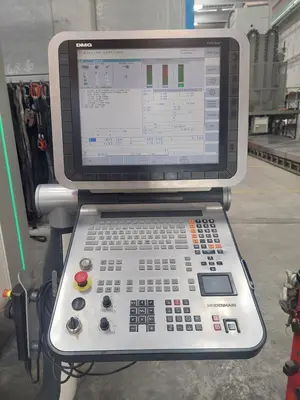

Control: HEIDENHAIN iTNC 530
Tool magazine: 60 tools
Through-spindle coolant with 40 bar high-pressure pump and 600 L tank: Yes
Chip extractor: Yes
Fully enclosed cabin: Yes
2 rotary windows: Yes
Tool measuring system: Blum laser
Workpiece probe: HEXAGON
3D quickSET tool kit: Yes
Wash-down gun for chip removal: Yes
Equipped With
Equipped with:
Control: HEIDENHAIN iTNC 530
Tool magazine: 60 tools
Through-spindle coolant with 40 bar high-pressure pump and 600 L tank: Yes
Chip extractor: Yes
Fully enclosed cabin: Yes
2 rotary windows: Yes
Tool measuring system: Blum laser
Workpiece probe: HEXAGON
3D quickSET tool kit: Yes
Wash-down gun for chip removal: Yes
