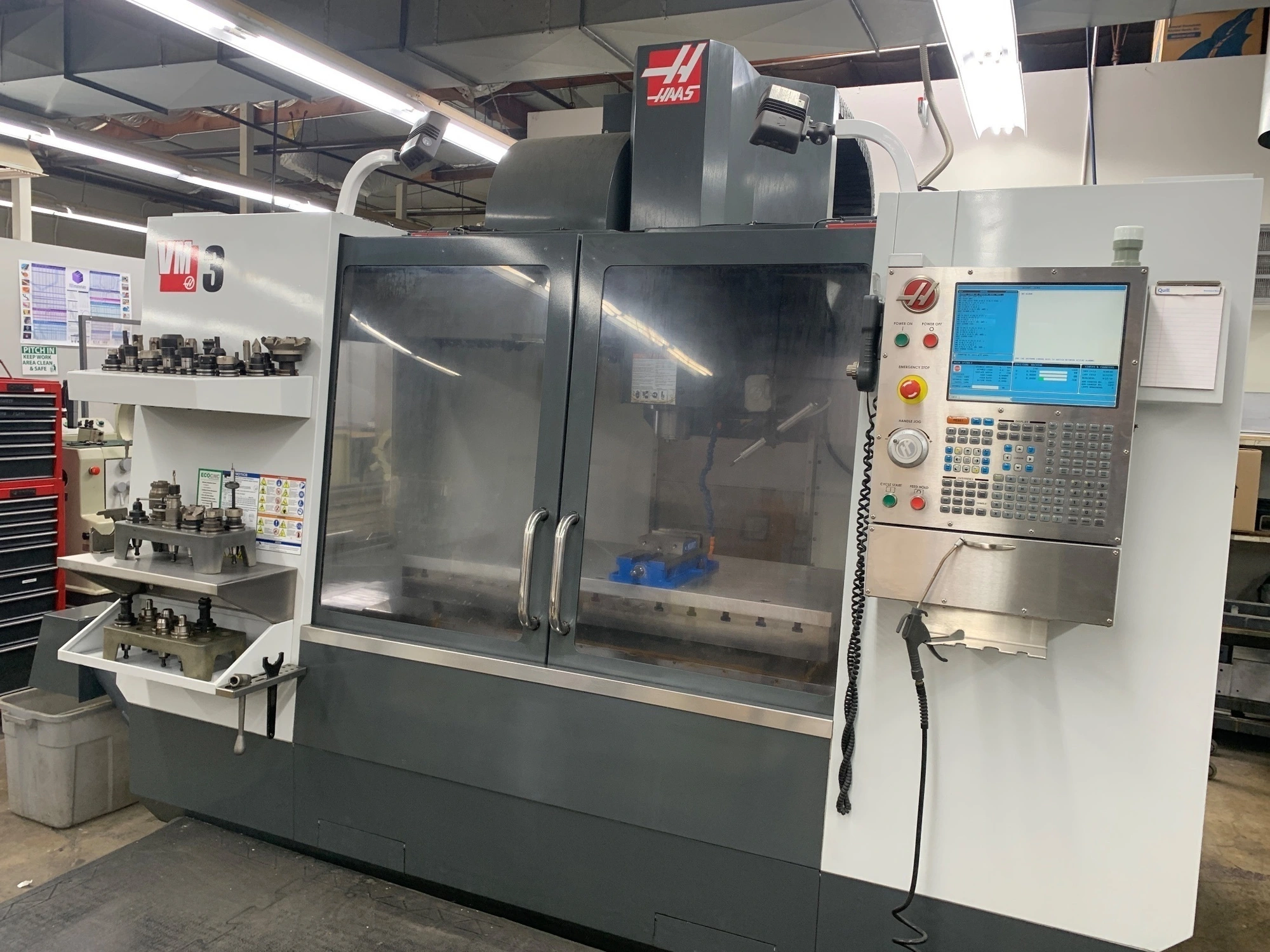

Used Vertical Machining Center: 40x26x25" travels, 30 hp, 12,000 RPM, CT 40 taper, 24 ATC. Features include wireless probing, programmable coolant, high-intensity lighting, and 4th axis ready. Equipped with Haas HRT 210 Rotary, KURT Vise, and more.
| X | 40" | 1,016 mm |
| Y | 26" | 660.4 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT 40 | CT 40 |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
X 40"
Y 26"
Z 25"
Power 30 hp
RPM 12,000 RPM
# ATC 24
Taper CT 40
Table-W 25"
Table-L 54"
# Axis 3
- Wireless Intuitive Probing
- Programmable Coolant
- High Intensity Lighting
- 4th Axis Ready
- Automatic Airgun
- Toolholders shown in pictures
- KURT Vise shown in pictures
- Fixture plate shown in pictures
- Haas HRT 210 Rotary
- Bison 8" Manual Chuck
- TBS-210-20 The Haas Tooling Block System is made from 6061-T6 aluminum alloy, and can be machined to meet your requirements.
The system includes the aluminum tooling block, an outboard A-frame support and a steel mounting plate. Tooling block measures
20" (508 mm) long × 4.5" (114 mm) square.
