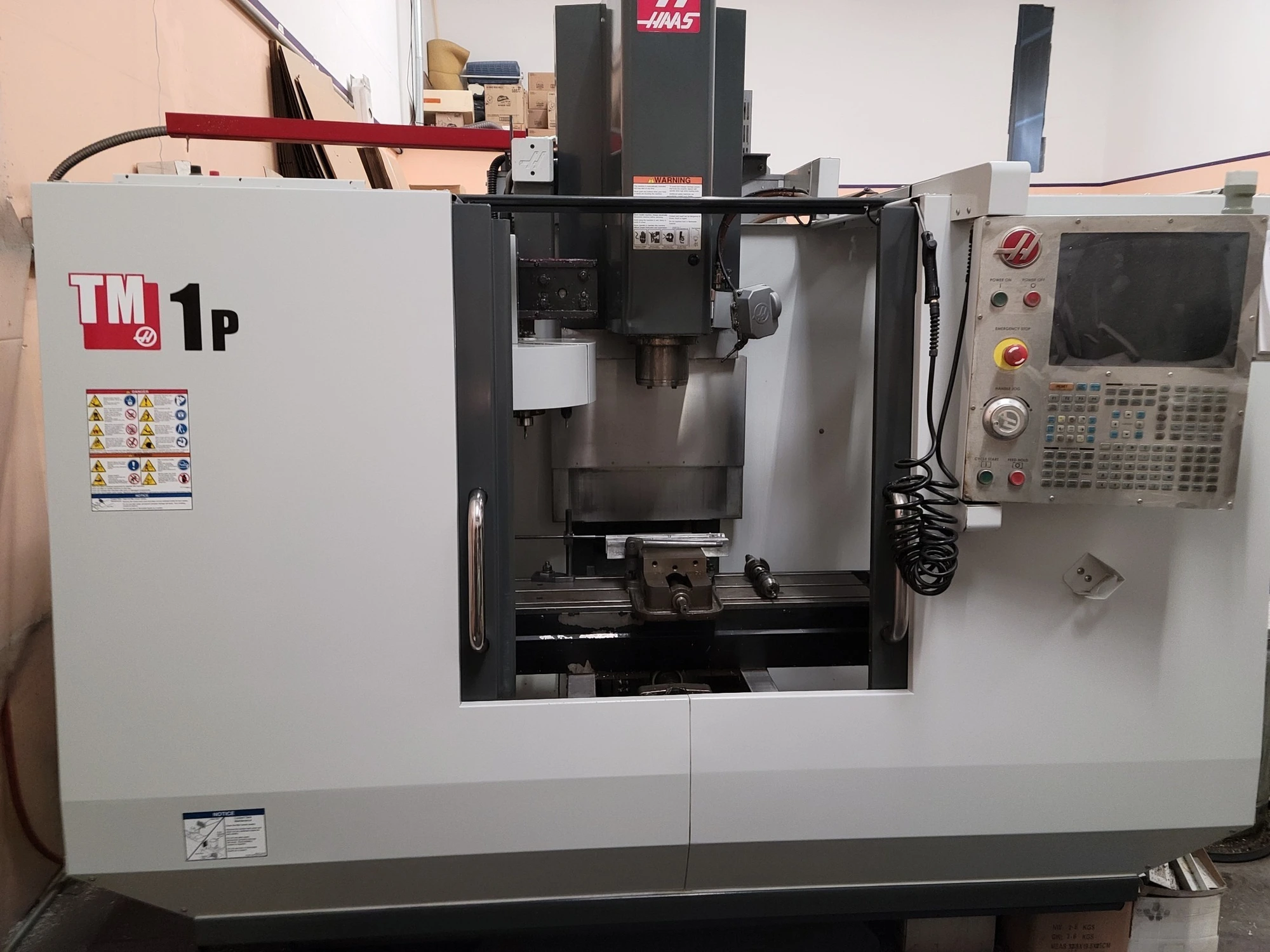

Vertical Machining Center, used, features a 3-axis system, 47.4" x 10.75" table with 300 lbs capacity, and CAT 40 spindle taper at 6,000 rpm. Includes Haas CNC Control, rigid tapping, coolant tank, pump, and intuitive programming.
| X | 30" | 762 mm |
| Y | 12" | 304.8 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CT 40 | CT 40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 47.75" | 1,212.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 100" x 73" x 84" | 100" x 73" x 84" |
| Weight | 6,000 pounds | 6,000 pounds |
# Axis: 3
Table Size: 47.4" x 10.75"
Table Capacity: 300 pounds
X-Axis Travel: 30"
Y-Axis Travel: 12"
Z-Axis Travel: 16"
Spindle Taper: CAT 40
Spindle Speed: 6,000 rpm
Main Motor: 7.5 hp
Tool Changer Capacity: 10 Station
Coolant Thru Spindle: no
Machine Dimensions: 100" x 73" x 84"
Machine Weight: 6,000 pounds
- Haas CNC Control
- Rigid Tapping
- Coolant Tank & Pump
- Programmable Coolant Nozzle
- Intuitive Programming System
- Coolant pump
