USED ABB ABB IRB 4600-40/2.55

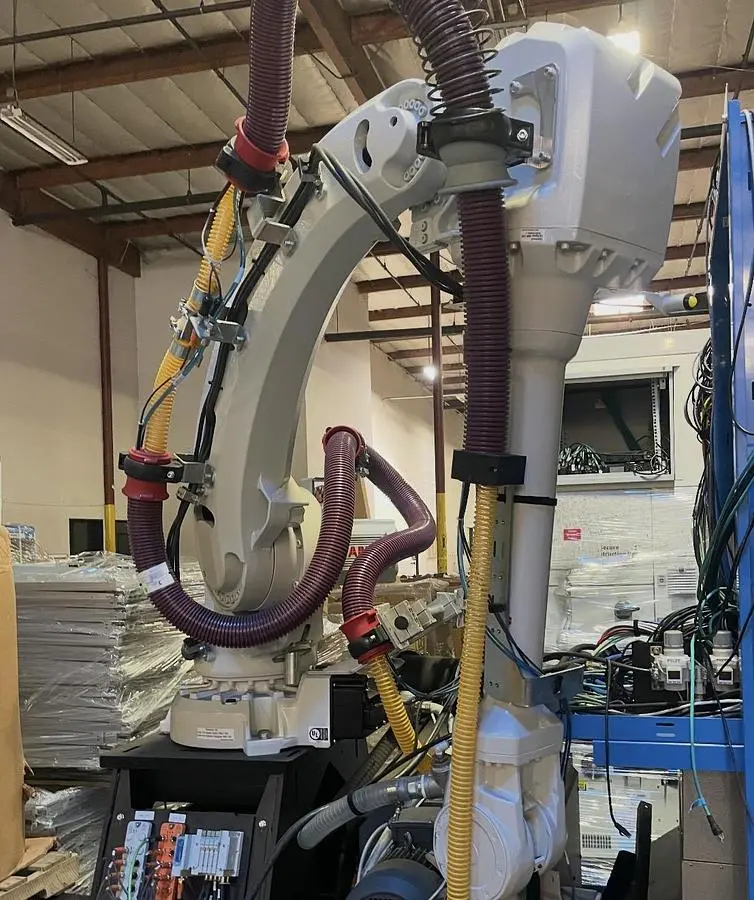

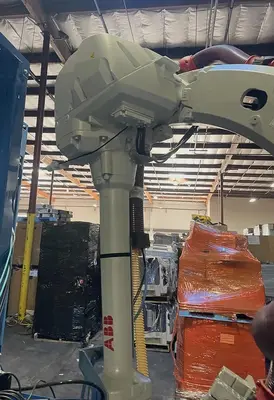

ABB IRB 4600-40/2.55 Robot, IRC5 Control, Used, 2022

This used ABB IRB 4600-40/2.55 (2022) is a robot available from R.A.B. Industries. It is equipped with the IRC5 controller.

1- NEVER IN PRODUCTION ABB IRB 4600-40/2.55 WITH IRC5 CONTROLLER AND CABLES

SERIAL NUMBER: 4600-

DATE OF MFG. 2022

STK#: 105431

HOURS 180

NEWEST ARM DESIGN FROM ABB FOR THE 4600 SERIES
===================================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Number of axes: 6+3 external (up to 36 with MultiMove)

Controller: IRC5

Payload 40 kg

Reach 2550 mm

Axes 6

Repeatability 0.05 mm

Mass 412 kg

Structure Articulated

Mounting Floor, Inverted, Angle

Motion Range:

J1:+180° to -180°

J2:+150° to -90

J3:+75° to -180°

J4:+400° to -400°

J5:+120° to -125°

J6:+400° to -400°

Axis Speeds:

J1:175°/s

J2:175°/s

J3:175°/s

J4:250°/s

J5:250°/s

J6:360°/s

EQUIPPED WITH:

ABB ROBOT ARM MECHANICAL UNIT

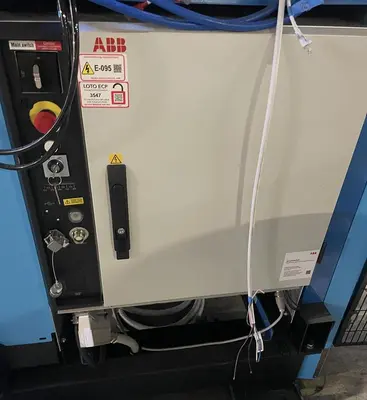

ABB ROBOT CONTROLLER

ABB ROBOT CONNECTION CABLES

ABB VERSION 11 TEACH PENDANT

PER THE OEM:

IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.
