Sioux SF50G, Used, 2022, S/N 2208035
This used Sioux SF50G (2022) is a unit available from R.A.B. Industries. It is equipped with the nan controller.

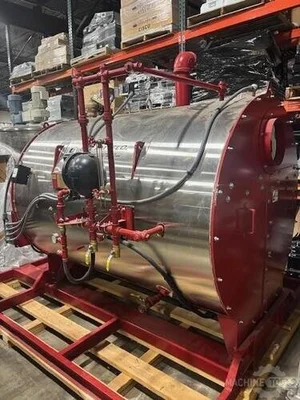

1-NEVER USED SIOUX SF50G STEAM FLO GENERATOR
SERIAL NUMBER 2208035
DATE OF MFG. 10/2022
STK#105432
=============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Steam-Flo Features Include:
• Maximum steam pressure
- 15 PSI
• Maximum steam temperature - 250°F
• Redundant safety controls: auto reset pressure switch, manual reset pressure switch, ASME
pressure relief valve, pressure gauge, water feeder with level switch, manual reset level switch,
check valve, and inlet water screens
• Full steam production within 5-10 minutes of start-up
• Continuous supply of steam
• NEMA 4 electrical enclosure
• Safety Standards: UL-508A/CSA C22.2#14; ASME Section IV, CRN* (CRN not currently available for
all-electric models SF3.8-E & SF11-E)
* Inlet water pressure requirement – Minimum 40 PSI, Maximum 150 PSI
* Inlet water supply should be minimum 1.5X usage
* Maximum inlet water temperature 120°F (49°C)
Electrical & Mechanical Information
Voltage Phase Hertz Operating Current Amps
115 1 60 10
PERFORMANCE:
Boiler HP 50
Heat Input BTU/Hr 2,000,000
Steam Output Lbs/Hr 1,725
Max Steam Pressure PSIG 15
Max Steam Temperature °F 250
CONNECTIONS:
Water Inlet 3/4” Garden Hose
Steam Outlet 4” NPT
Fuel Inlet 1 1/2” NPT
Flue Size 12”
Vessel Details:
Total Boiler Volume 519 Gallons
Operating Boiler Volume 330 Gallons
Heat Transfer Surface 278 sq ft
Fuel Supply
Fuel Type LP / NG 22
Fuel Usage GPH / 2,000 CFH
Weight & Dimensions
Weight 5,086 LBS
Length 112" (2845 mm)
Width 87" (2210 mm)
Height 87" (2210 mm)
