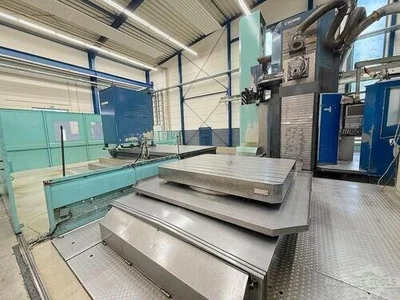

USED 2007 SACHMAN MP 212

HEIDENHAIN 530 CNC ControlAutomatic Head ChangerHead Index Angle 0.02 + 0.02Second Head - Nose Type80 Position Automatic Tool ChangerRotary Table: Dimensions 2,000 x 1,600 mm Table Capacity 15 Ton Infeeding Travel 1,500 mmFixed Table Floor Plate - 4,000 x 2,000 mmElectronic hand wheelSafety protectionChip conveyor

Manufacturer: Sachman
Model: MP 212
Year: 2007
Condition: Used
Stock Number: 5654301
Spindle speeds: 5,000 rpm
X axis travel: 6,000 mm
Y axis travel, vertical: 2,000 mm
Z axis travel, transverse slider: 1,400 mm
Table dimensions: 2,000 x 1,600 mm
Table capacity: 15 Ton
Table stroke: 1,500 mm
Motor power: 37 kW in S1/S6
Taper of boring spindle: ISO 50
Rapid feed: 30 m/min
Machine weight: 70 Ton
