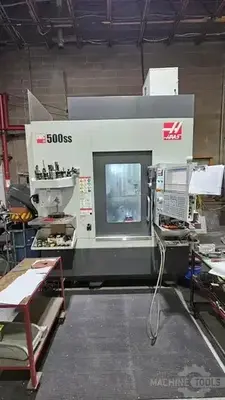

CNC Vertical Machining Center
| X | 24" | 609.6 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 31 | 31 |
| Taper | CT or BT 40 | CT or BT 40 |
Request a Quote
Add to Cart
X-Axis Travel: 24"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Speed: 12,000 RPM
Spindle Taper: BT 40
Tool Magazine Capacity: 50 ATC
Control: Haas CNC
Spindle Motor: 30 HP

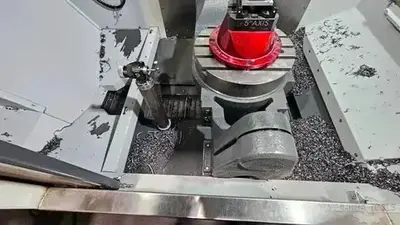

Additional Axis: 5th Axis Trunnion Table
Coolant: 300 PSI Thru Spindle Coolant
Platter Diameter: 15.7"
Max Weight on Platter: 500 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IPM
Chip Removal: Belt Type Chip Conveyor
Mist Away Mist Extractor: Part Pick Up Probe
Wireless Intuitive Probe System: 55 Gallon Coolant Tank
Programmable Coolant Nozzle: Remote Jog Handle
Rigid Tapping: Tool Length Measurement
Chip Strainer: Dynamic Work Offsets & Tool Center Point Control
M-Code
