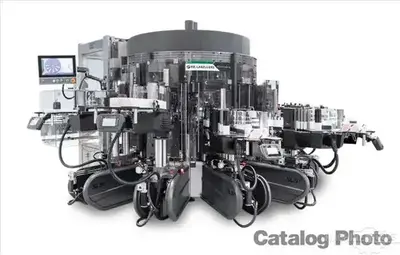

USED 2024 PE LABELLERS SL 1120-24-BL-6P

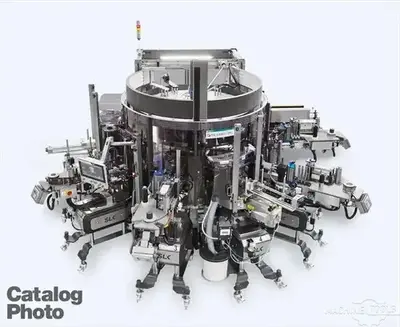

PE Labellers Modular SL 1120-24-BL-6P Rotary Hot Melt (Cut & Stack) Labeler (2 Available)

Machine Architecture
Rotary Carousel Diameter: 44.1"
Number of Quick-Release Bottle Holding Plates: 24
Number of Peninsula-Shaped Stations: 6
Machine Pitch: 5.8"
Number of Starwheel Divisions: 12
Starwheel Diameter: 22.1" P
Labeling Unit Type: 1S-1L (Single Station / Single Label Head)

Installed Labeling Configuration
This machine is configured as a rotary Hot Melt (Cut & Stack) labeling system under P.E.’s BL platform.
Installed Hot Melt Station Includes:
Cut & Stack Label Magazine
Hot Melt Glue Roller & Scraper Assembly
Automatic Glue Delivery System
Integrated Glue Temperature Control

Upgrade Capability
This platform was engineered to accept optional:
Pressure Sensitive Labeling Modules
Roll-Fed Labeling Modules
Optional modules are not currently installed. Integration would require OEM application review and appropriate components.

Container Handling Envelope
Container Diameter Range: 2" - 4.7"
Container Height Range: 4.7" - 14"
Alternate Container Height Range: 8.7" - 17.5"

Label Size Envelope (Hot Melt - Cut & Stack)
Label Length Range: 6.3" - 15.4"
Label Height Range: 1.4" - 7.1"

Speed Capability
Hot Melt Configuration (Installed)
Normal Operating Speed: ~400 BPM
Surge Speed: Up to 700 BPM
Pressure Sensitive Configuration (If Module is Installed)
Non-Oriented Application: Up to 630 BPM
With Orientation: Up to 540 BPM

Originally Configured Container Formats
This machine was originally configured with change parts for the following PET bottle formats:
FORMAT A - 34 oz PET Bottle
Container: 3.5" (D) x 8.8" (H)
Label: 11.2" (L) x 5.9" (H)
Originally Specified Change Parts Included:
Feed Screw
Star Wheels
Center Guide
Self-Centering Quick-Release Bottle Plates
Label Handling & Wiping Components
FORMAT B - 16 oz PET Bottle
Container: 2.9" (D) x 6.86" (H)
Label Option #1: 9.45" (L) × 3" (H)
Label Option #2: 9.24" (L) x 3.4" (H)
Originally Specified Change Parts Included:
Feed Screw
Star Wheels
Center Guide
Self-Centering Quick-Release Bottle Plates
Label Handling & Wiping Components

Electrical
Voltage: 480V - 60Hz
