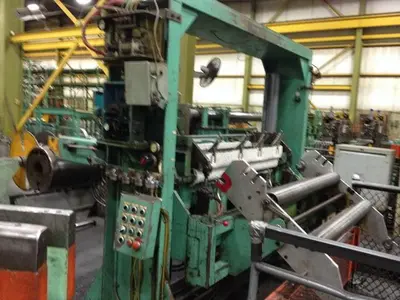

48" x .090" x 30,000# Precision Ruesch Slitting Line
Overview
Specifications
Width: 48 inches
Thickness: .090 inches
Coil Weight: 30000 pounds
Arbor Size: 5.5 inches
Equipped With
This 48″ Precision Ruesch slitting line is rated to .090″ material thickness and 30,000 lb coil capacity.
Thickness Range: .005” Min. to .090” Max.
Max Speed: 1200 fpm
L-Type Entry Coil Car
Coil Weight: 30,000lbs Max

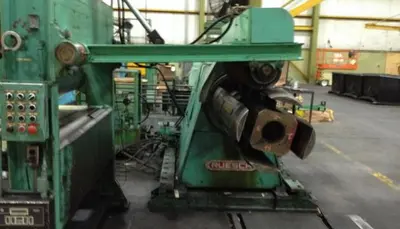

Mandrel Uncoiler
16" to 20" ID
North American Edge Control System
Entry Bridal Roll
Entry Pinch Rolls
Entry Edge Guide Rolls

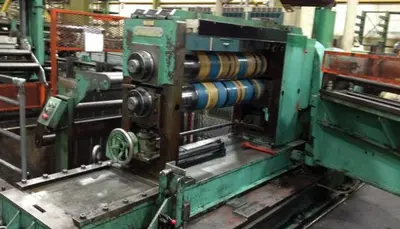

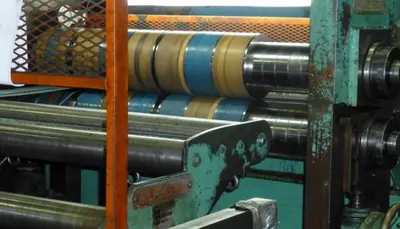

Slitter Head
5.5” Arbors
Shimless Tooling
*Spare Set of Top and Bottom Slitting Arbors
Pit Cross Over Table
Entry and Exit Cascade Rolls
Drag Board Tension Stand

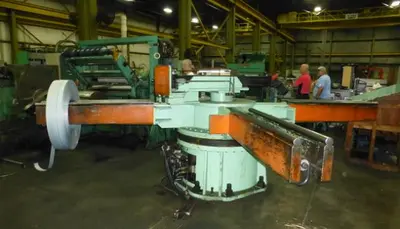

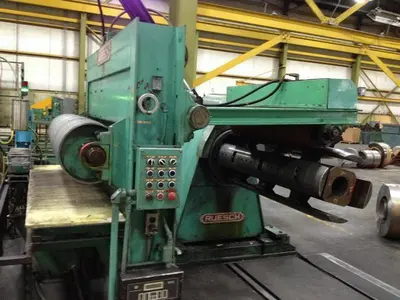

Recoiler with 2 Speed Gearbox
Coil Weight: 30,000lbs
Hydraulic Push-Off
Overarm Separator
75 Hp DC Drive
4 Arm Exit Turnstile
Complete with: Spare Parts, Manuals, Drawings, Hydraulics, Electrics and Controls
Installed and Running Video Available Upon Request
