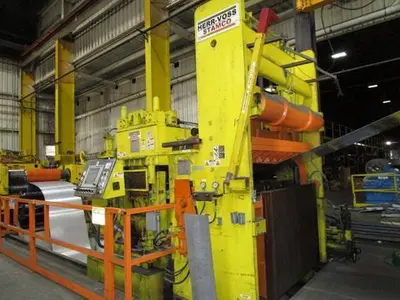

USED STAMCO NOT SPECIFIED

Width: 60 inches
Thickness: .135 inches
Coil Weight: 50000 pounds
Arbor Size: 9 inches

Thickness Range:  .024” - .135” Stainless & .024” - .187” Aluminum Line Direction:  Left to Right

Material:  Stainless, Aluminum, Painted Carbon Coil Width:  24” - 56”

Coil OD:  72”

Coil ID:  20” Entry & Exit

Line Speed:  300 FPM

Minimum Slit Width:  2”

Minimum Side Trim:  1/4”

Complete Line With:

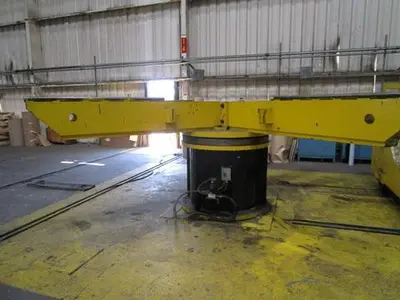

4 Arm Entry Turnstile

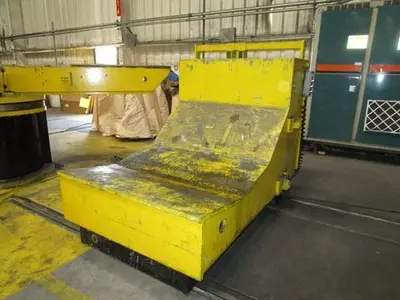

Entry L-Type Coil Car

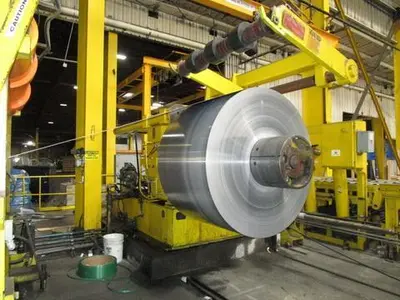

Mandrel Uncoiler

Out Board Bearing Support

Peeler Table

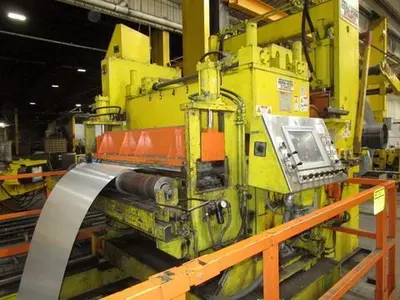

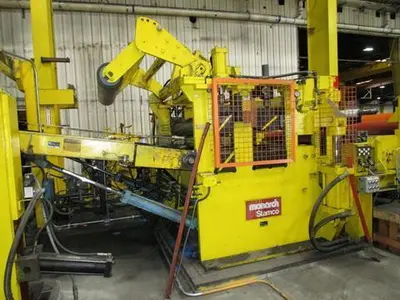

Stamco Entry Section

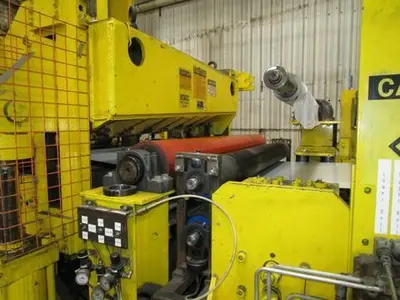

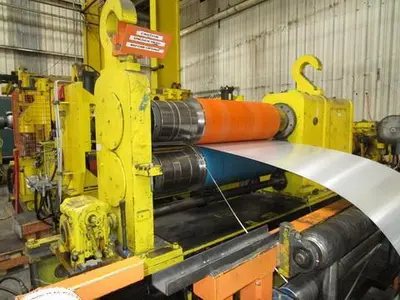

2 Stamco Slitter Heads

9” Diameter Arbors

56” Head and 60” Head

100 HP DC Drive

Scrap Winders

Looping Pit Cascade Rolls

Drag Board Tension

Herr Voss Strand Extensioner (Year 2006/2007)

Model VKSE 72-1.750-19-7-6HI

Shear Deflector Roll Unit with Pinch Rolls

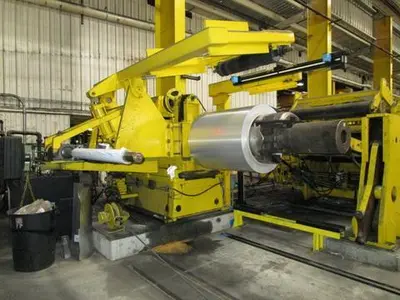

Recoiler

20” Hydraulic Drum

2 Speed Gear Box (34.22: 1 and 68.30: 1 Ratios)

100 HP DC Drive

Exit L-Type Coil Car
