Width: 72 inches
Thickness: .500 inches
Work Roll Diameter: 5.500 inches
Number of Work Rolls: 11
General Specifications:

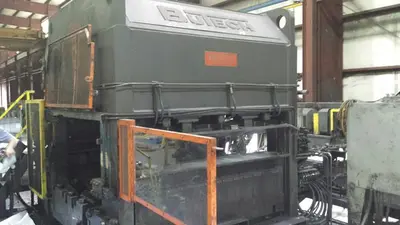

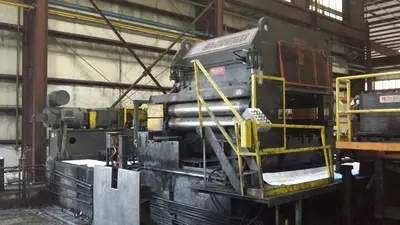

Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness Range: .125"-.500"
Strip Width Range: 24"-72"
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors
(11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .125"-.500"
Many spare parts including work rolls and back up rolls
