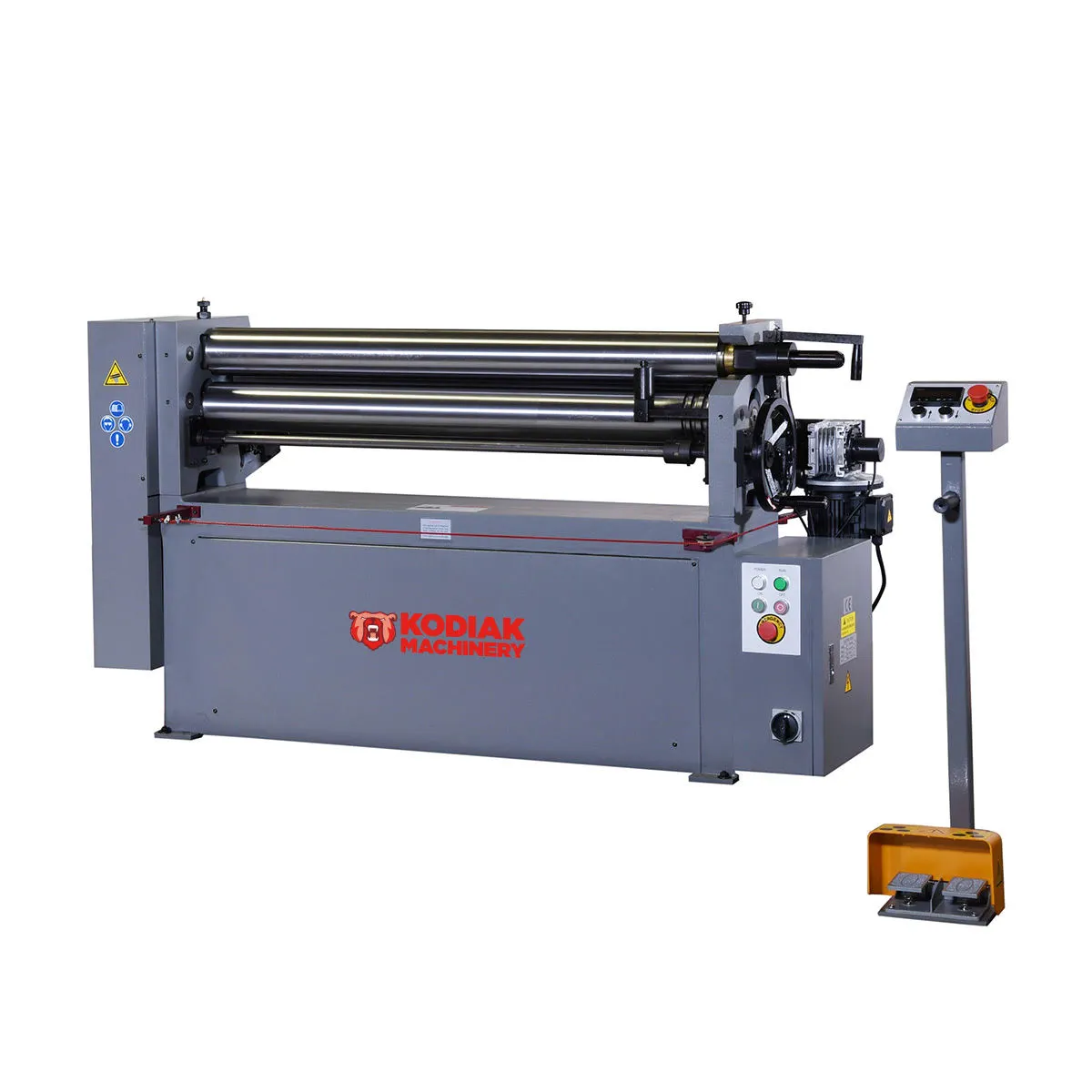

NEW Kodiak KBR-1010E

ISO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll ( E model is powered )
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, ( option: 440V, 3 phase )
One year industrial warranty for parts
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

Capacity
Mild Steel: 10’x10Ga
Capacity
Stainless Steel: 10’x14Ga
Roll Dia.: 6.70″
Min. Bending Dia.: 9″
Pre-bend: 0.12″
Rolls Speed: 17 ft/min
Rolls Opening: 1/2″
Main Motor: 7-1/2HP
Weight: 5,150 lbs
Overall Dimensions: 152″ x 35″ x 56″
