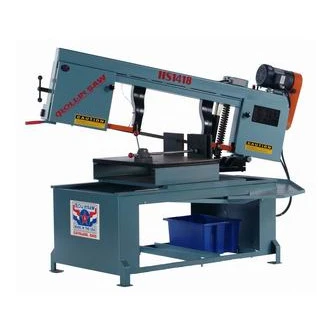

NEW ROLL-IN HS1418

Fast accurate cut on up to 14″ thick material
Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
Built-in coolant system enables faster cuts and extends the life of the saw blades

Feed system: Hydraulic cylinder for controlled feeds
Blade travel: 14″
Cutting capacity at 90º: Round: 14″
Rectangle: 14″ x 18″
Square: 14″
Cutting capacity at 45º: Round: 12″
Rectangle: 12″ x 14″
Square: 12″
Cutting capacity at 60º: Round: 8″
Rectangle: 8″ x 14″
Square: 8″
Miter cut angle range: 0º-60º (saw head swivels 60º in both directions)
Bevel cut angle range: N/A
Capacity under guides: 14″
Blade size (ships with saw): 1″ width x 13′ 10″ length 0.035 thick (bi-metal)
Blade size (accepted widths): 1″
Blade speeds: 70/140/270 sfpm
Table: Precision ground steel table: 24″ x 30″
Table height: 31″ from floor (no casters)
Motor: 2 HP 220/440V three-phase
Saw dimensions: 34.5″ width x 90″ length x 66″ height
Shipping dimensions: 41″ width x 96″ length x 66″ height
Shipping weight: 1,600 lbs F.O.B. Cleveland, Ohio
