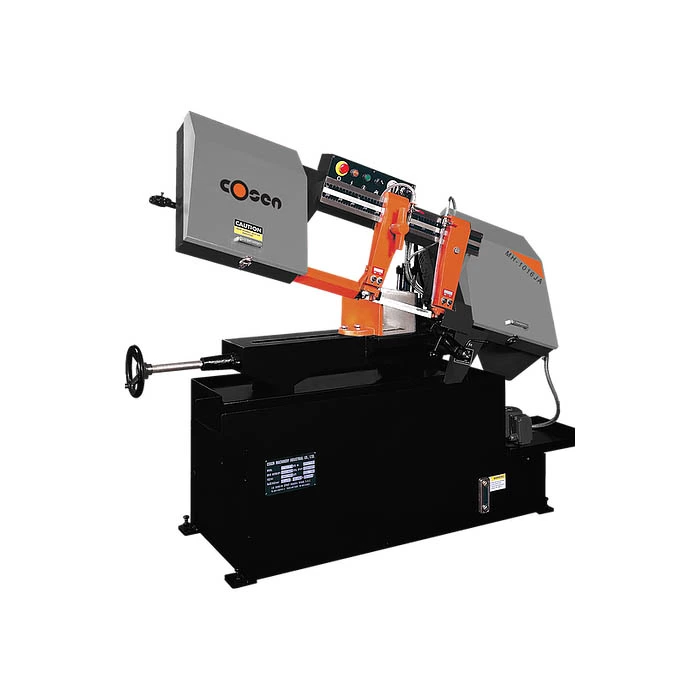

NEW COSEN MH1016JA

The New Cosen Horizontal Band Saw for sale model MH-1016JA comes equipped with a manual vise and adjustable hydraulic down feed. It is an ideal band saw for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and for limited run production work. It is a great machine for cutting square, round, and rectangular solids, as well as tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
9″ x 14.5″ Cosen Horizontal Band Saw Model MH1016JA Features:
Hydraulic cylinder plus precision ground hinge support
Stepless variable blade speed
Adjustable flood coolant system
Direct drive gearbox
Hardened worm gear for durability
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron vise
Vises can rotate to allow a 45 degree cut
Blade cleaning chip brush
Adjustable down feed and cutting pressure control

Maximum Cutting Capacity Round: 10″
Maximum Cutting Capacity Square: 9″
Maximum Cutting Rectangle (H xW): 9″ x 14.5″
Blade Speeds: 60 HZ: 95,150,213,321 FPM
Blade Size: 11′ x 1′ x .035″
Machine Drive Motor: 2 H.P.
Coolant Motor: 1/8 HP
Machine Weight: 1010 lbs.
Workbed Height: 25.6″
Floor Space (LxWxH): 28″ x 69″ x 42.5″
SKU#: 7246
