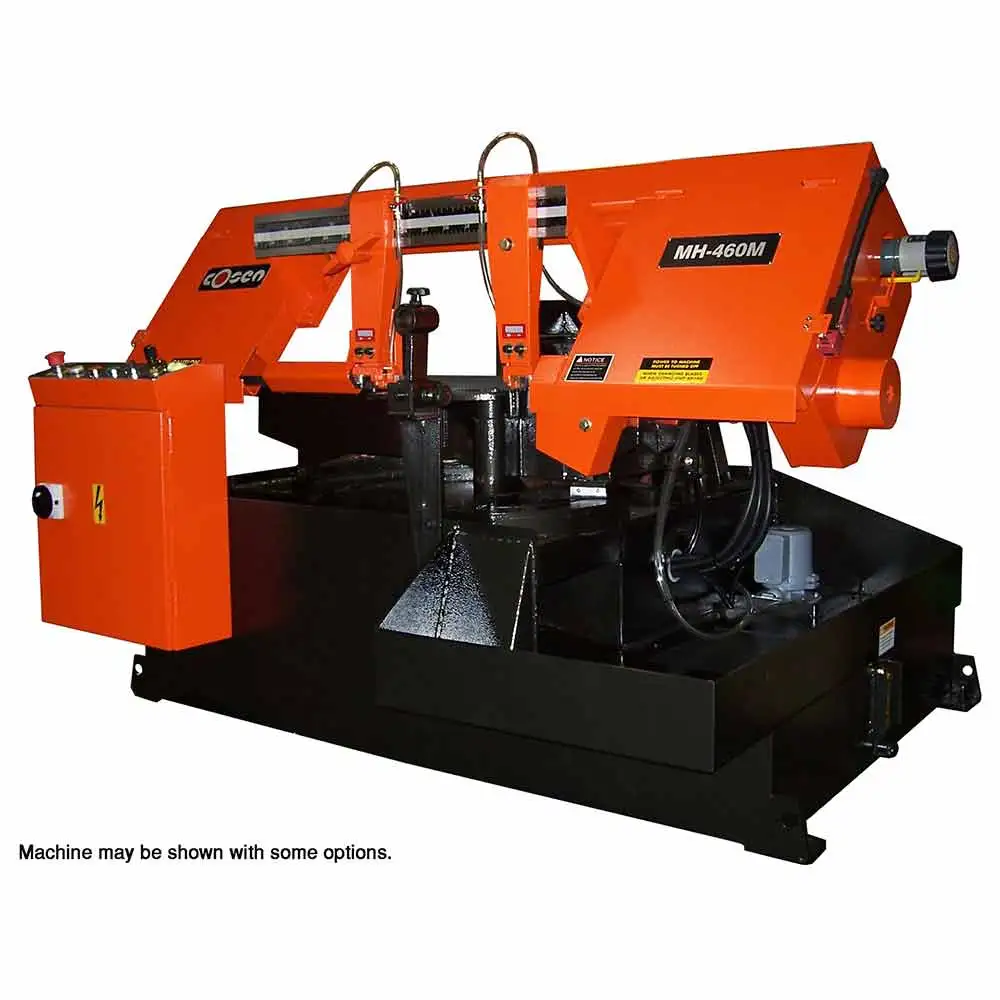

NEW COSEN MH-460M

The New Cosen Horizontal Band Saw Model MH-460M comes equipped with a heavy-duty swivel center frame design, allowing for an easier set up of miter cuts. Key features included on this robust machine allow for efficient use in limited run production environments, as well as for tool room applications. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
9” x 18” New Cosen Horizontal Band Saw Model MH-460M Features:
Hydraulic Cylinder Plus Precision ground hinge support
Heavy-Duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
Adjustable flood coolant system
Carbide blade guides and bearings provides additional blade support
Rigid cast-iron guide arms
Cast-iron vise
Blade Cleaning chip brush
Adjustable down feed and pressure control

Maximum Round Cutting Capacity 0˚: 10″
Maximum Round Cutting Capacity -45˚: 9”
Maximum Round Cutting Capacity -60˚: 4.3”
Maximum Rectangular Capacity (HxW) 0˚: 9″ x 18.1″
Maximum Rectangular Capacity (HxW) -45˚: 9″ x 9″
Maximum Rectangular Capacity (HxW) -60˚: 9″ x 4.3″
Blade Size (LxWxT): 11’6″ x 1″ x 0.035″
Blade Speeds: 95-150-213-321 FPM
Main Motor: 2 H.P.
Coolant Motor: 1/8 H.P.
Machine Weight: 1,320 Lbs.
Workbed Height: 25.4″
Floor Space: 55″ x 74.8″ x 66.9″
SKU: 7185
