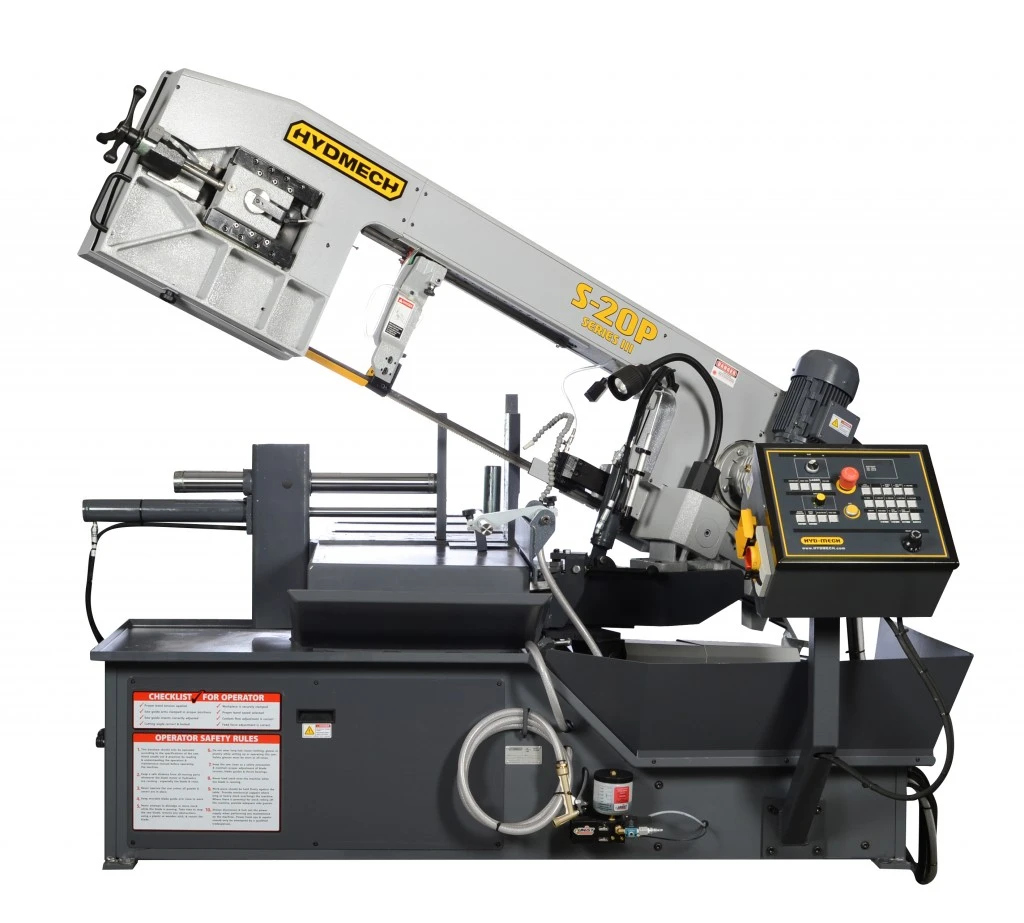

NEW HYD-MECH S-20P

13″ x 18″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-20P Specifications:
13″ x 18″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-20P Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
Full capacity, full stroking hydraulic vise
3 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
36” material in-feed roller table and 19” out feed table
Cast iron band wheels
Swing away semi-automatic operator control panel
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
Gravity fed sawing head with infinite down feed adjustment
Mechanical band tensioning with digital readout
Preset replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
13″ x 18″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-20P Optional Features:
Full capacity hydraulic overhead bundling
Idler conveyors
Work stop – 34″
Single phase – 220 v – VFD
Left hand side control panel
Mist lubrication
Remote operator console
13″ x 18″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-20P Optional Accessories:

90° rectangle (h x w): 13″ x 18″
90° round: 13″
45° rectangle (h x w): 13″ x 10.75″
45° round: 12″
30° rectangle (h x w): 13″ x 7.75″
30° round: 8.5″
Blade Drive: 3 HP VFD
Blade Speed: 45-330 SFM
Blade Size: 1″ x 14′ 10″
Table Height: 31″
Voltages Available: 208, 240, 480, 575 v
Weight: 2,500 lbs
Dimensions (w x l x h): 92″ x 75″ x 52″
Coolant Tank Capacity: 6 gal
Work Load: 5,000 lbs
