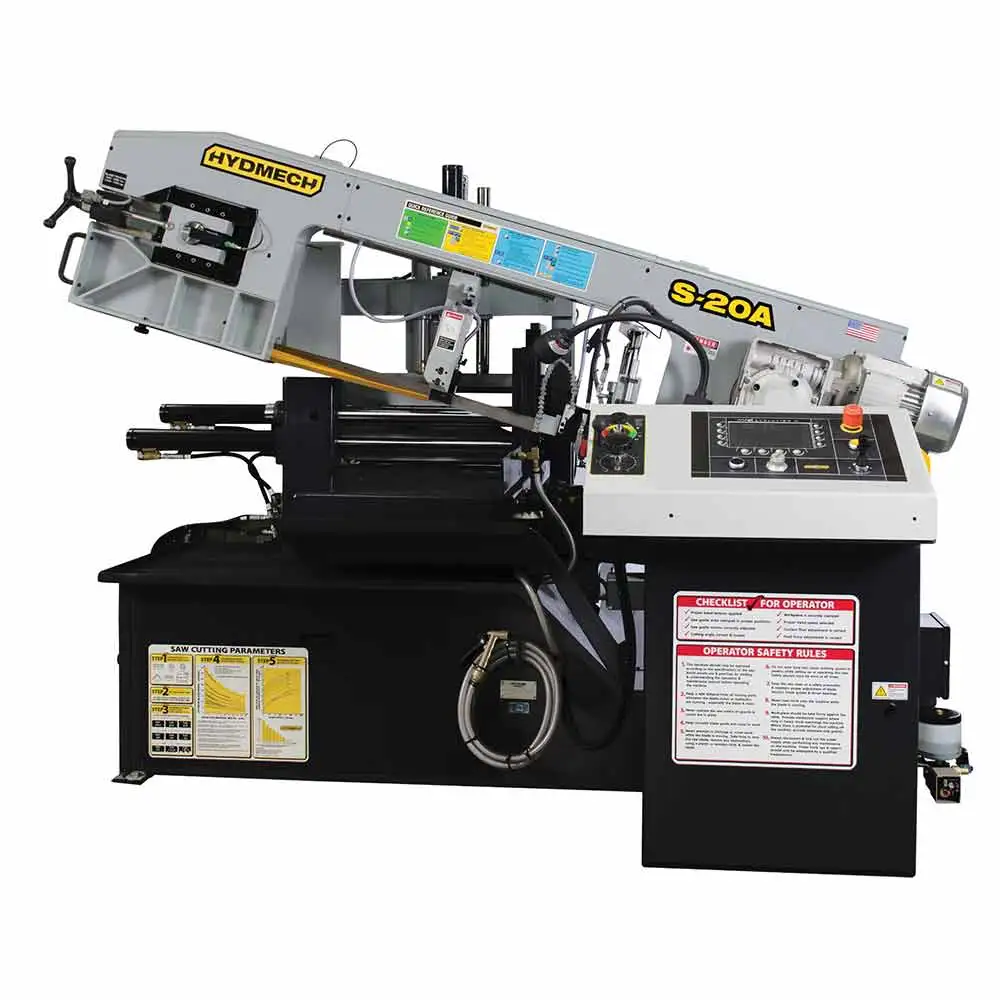

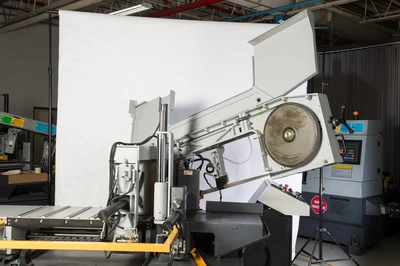

NEW HYD-MECH S-20A

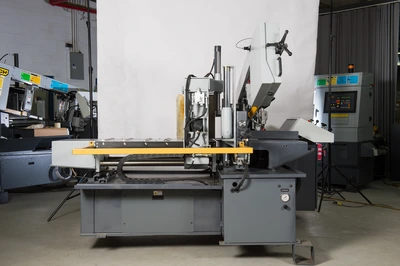

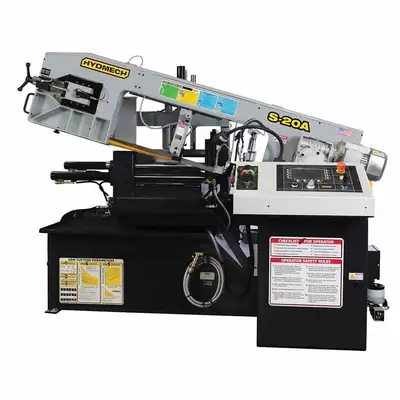

13″ x 18″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-20A Specifications:
13″ x 18″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-20A Standard Features:

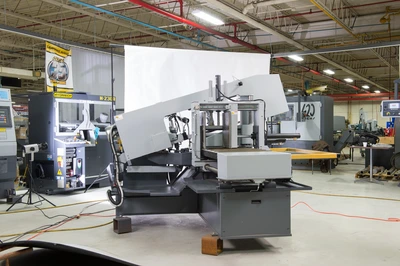

Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees one direction

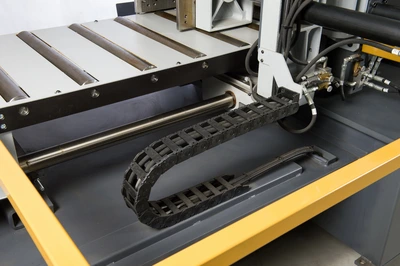

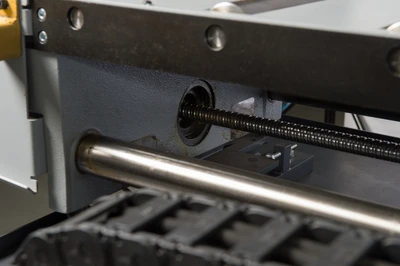

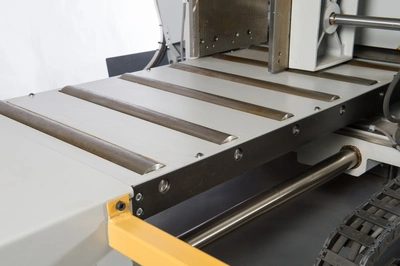

Cast iron material shuttle features automatic multi-indexing up to 27” in a single stroke. Powered by ball screw and stepper motor

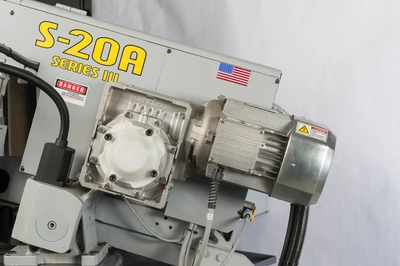

5 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
Blade chamber pulls back material from cut part extending blade life
Cast iron band wheels

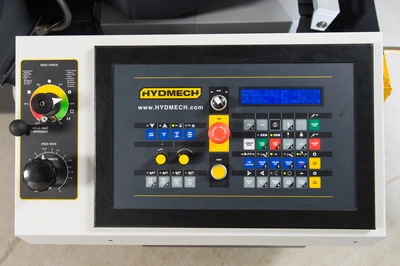

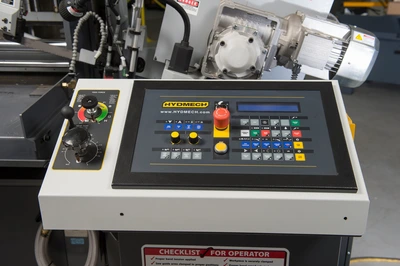

Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

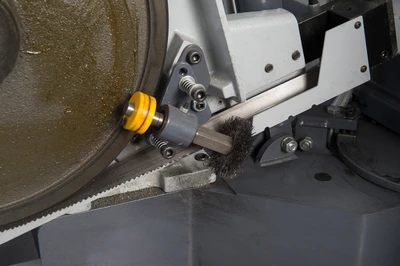

Replaceable blade brush
Robust steel base

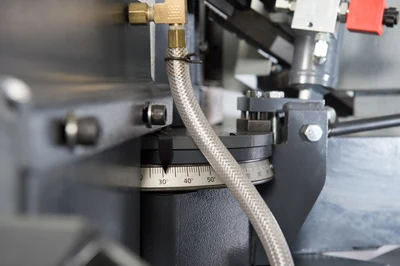

Easy to read angle scale with angle locking mechanism

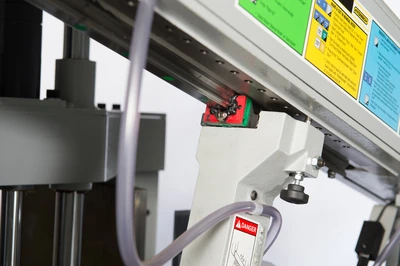

Cast iron saw blade guide arms mounted on linear rails is adjustable for proper spacing.
Easy access electrical panel

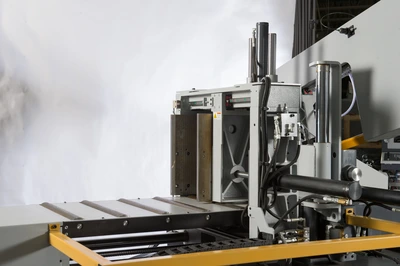

Full capacity, full stroke hydraulic material vises
Out of stock switch

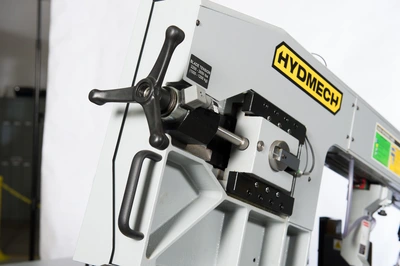

Mechanical band tensioning with digital readout
Hydraulic positive down feed of sawing head
Pre-set replaceable carbide guide inserts
Safety door interlocks

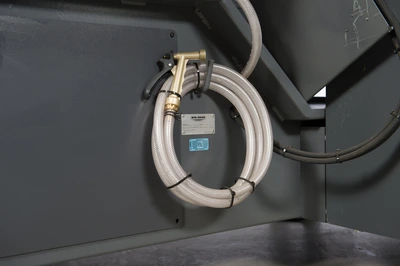

Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
13″ x 18″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-20A Optional Features:
Full capacity hydraulic overhead bundling
Remote console – 10’ cord
Mist lubrication
Idler conveyors
Powered conveyors

13″ x 18″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-20A Optional Accessories:

90° rectangle (h x w): 13″ x 18″
90° round: 13″
45° rectangle (h x w): 13″ x 10.75″
45° round: 12″
30° rectangle (h x w): 13″ x 7.75″
30° round: 8.5″
Blade Drive: 5 HP VFD
Blade Speed: 75-350 SFM
Blade Size: 1″ x 14′ 10″
Table Height: 31″
Voltages Available: 208, 240, 480, 575 v
Weight: 3,800 lbs
Dimensions (w x l x h): 93″ x 86″ x 52″
Coolant Tank Capacity: 12 gal
Work Load: 5,000 lbs
