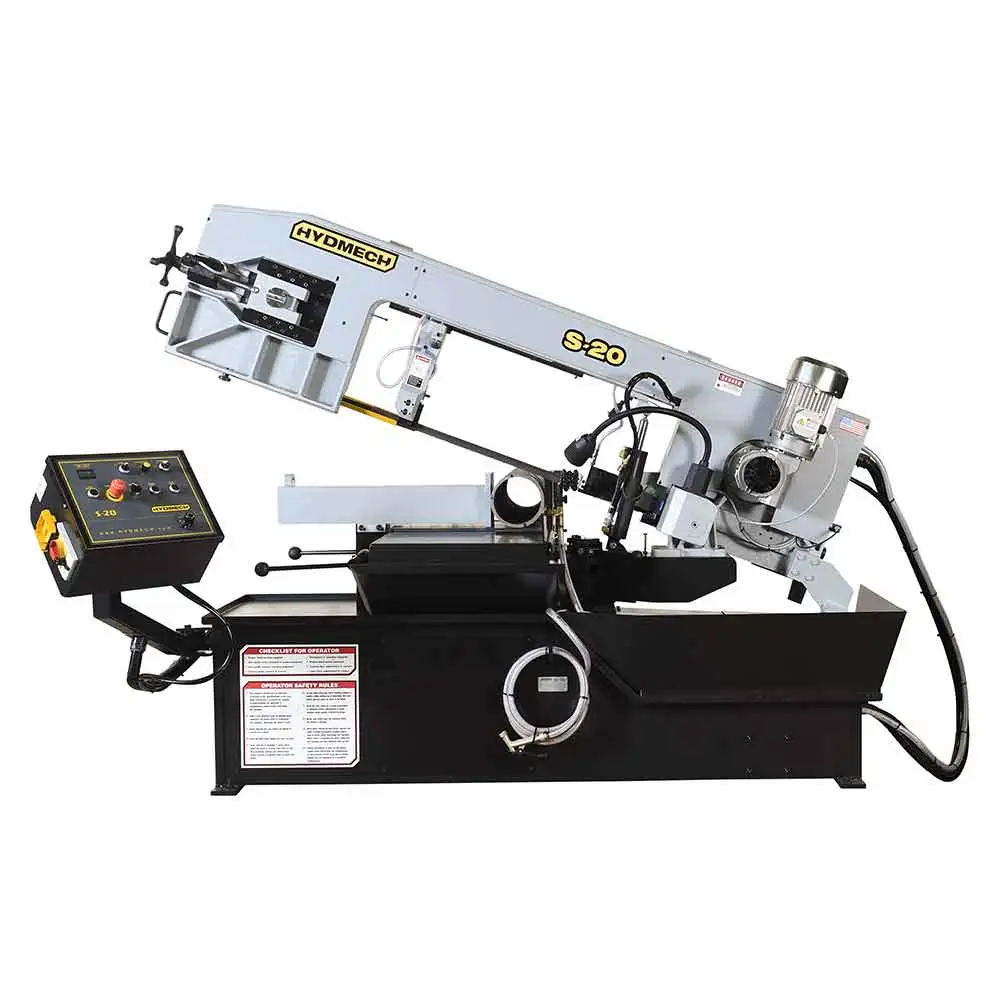

NEW HYD-MECH S-20

13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Specifications:
13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
3 HP true direct blade drive – no belts/pulleys
36” material in-feed roller table and 19” out feed table
Heavy duty, quick adjusting, sliding material vise jaw
Mechanical band tensioning with digital readout
Cast iron band wheels
Swing away operator control panel
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
Gravity fed sawing head with infinite down feed adjustment
Preset replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Optional Features:
Mist lubrication
Idler conveyors
Work stop – 34″
Right hand side control panel – rigid mount
Single phase – 220 v – VFD
13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Optional Accessories:

90° rectangle (h x w): 13″ x 18″
90° round: 13″
45° rectangle (h x w): 13″ x 10.75″
45° round: 12″
30° rectangle (h x w): 13″ x 7.75″
30° round: 8.5″
Blade Drive: 3 HP VFD
Blade Speed: 45-330 SFM
Blade Size: 1″ x 14′ 10″
Table Height: 31″
Voltages Available: 208, 240, 480, 575 v
Weight: 2,200 lbs
Dimensions (w x l x h): 92″ x 75″ x 52″
Coolant Tank Capacity: 6 gal
Work Load: 5,000 lbs
