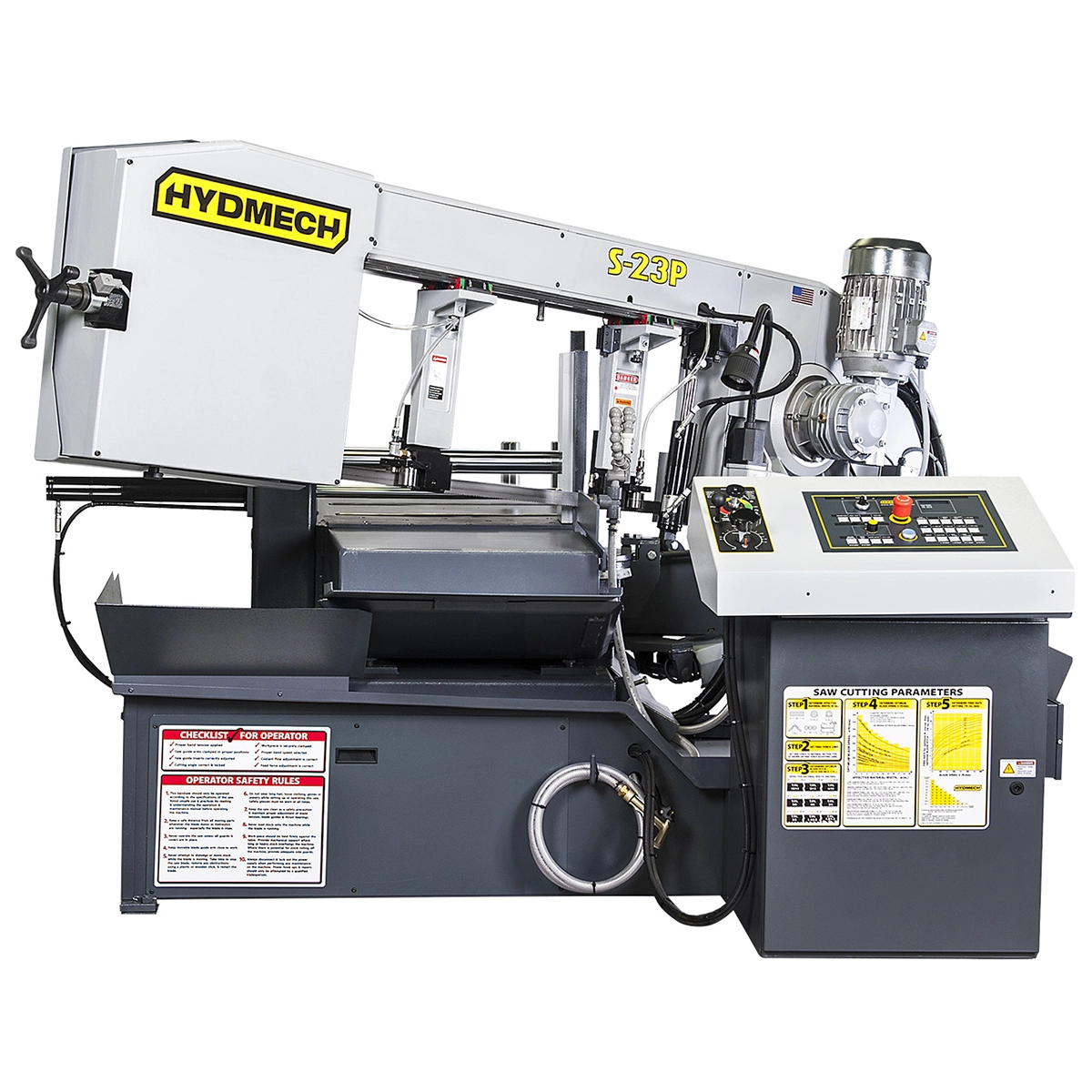

NEW HYD-MECH S-23P

16″ x 20″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-23P Specifications:
16″ x 20″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-23P Standard Features:
Semi-automatic operator PLC control
Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
Full capacity, full stroking hydraulic material vise
8.8 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
19 1/4” out feed table and 43” infeed table
Blade breakage switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron blade guide arms. Idler side guide arm is adjustable and supported by linear rail.
Easy access electrical panel
Hydraulic positive down feed sawing head with infinite down feed adjustments
Mechanical band tensioning with digital readout
Pre-set replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
16″ x 20″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-23P Optional Features:
Full capacity hydraulic overhead bundling
Idler conveyors
Work stop – 34″
Mist lubrication
Remote console – 10′ cord
16″ x 20″ New HydMech Semi-Automatic Pivot Style Horizontal Band Saw Model S-23P Optional Accessories:

90° rectangle (h x w): 16″ x 20″
90° round: 16″
45° rectangle (h x w): 16″ x 14″
45° round: 14″
30° rectangle (h x w): 16″ x 9.5″
30° round: 9.5″
Blade Drive: 8.8 HP VFD
Blade Speed: 75-350 SFM
Blade Size: 1.25″ x 16′ 10″
Table Height: 33″
Voltages Available: 208, 240, 480, 575 v
Weight: 2,900 lbs
Dimensions (w x l x h): 101″ x 80″ x 61″
Coolant Tank Capacity: 9 gal
Work Load: 5,000 lbs
