NEW HYD-MECH M-16A

Name: NEW HYD-MECH M-16A
Brand: HYD-MECH
SKU: 494737
Availability: InStock

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Horizontal Band Saws

Manufacturer:

HYD-MECH

Model:

M-16A

Stock #:

9859

Description

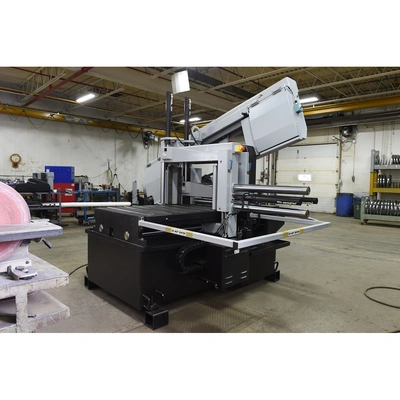

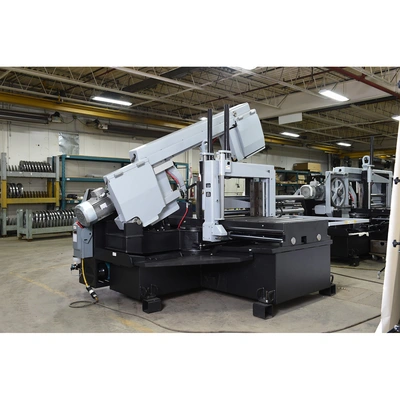

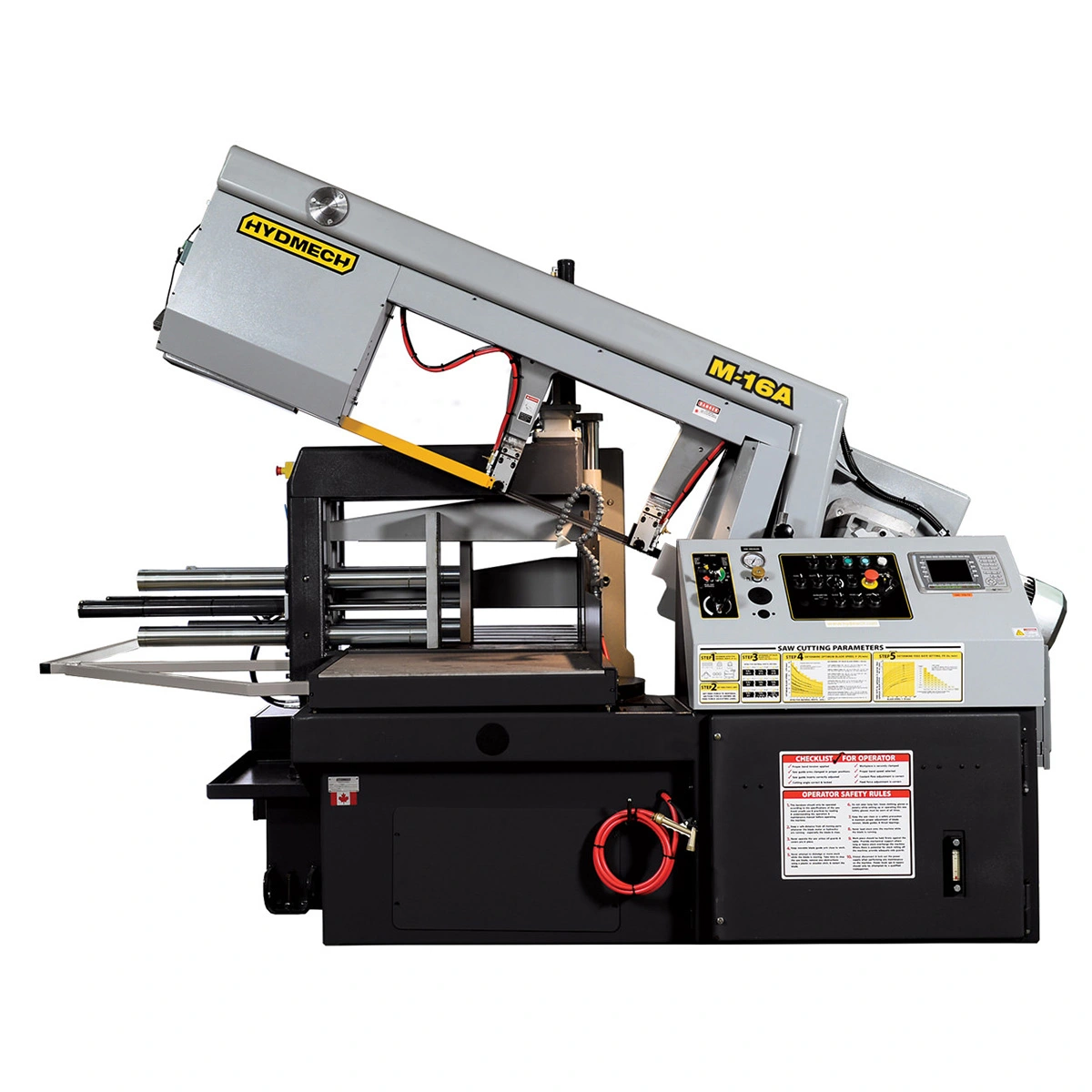

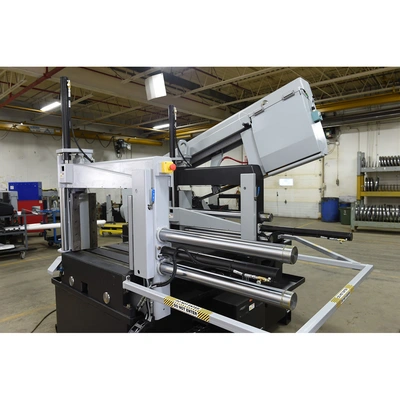

16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Specifications:

16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Standard Features:

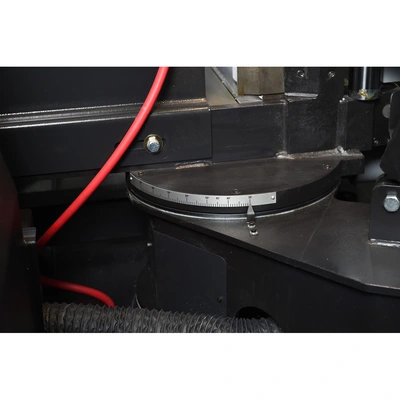

Automatic programmable mitering with “go to” angle functionality
Automatic multi-indexing up to 33” in a single stroke
Full capacity, full stroking hydraulic vises

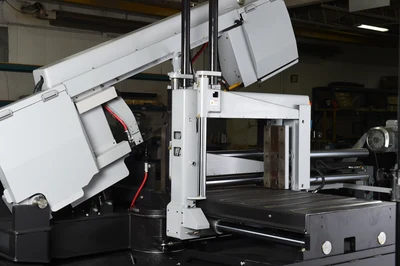

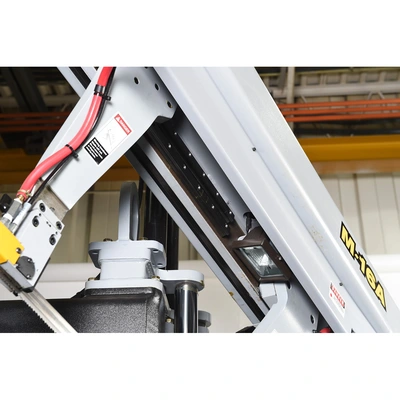

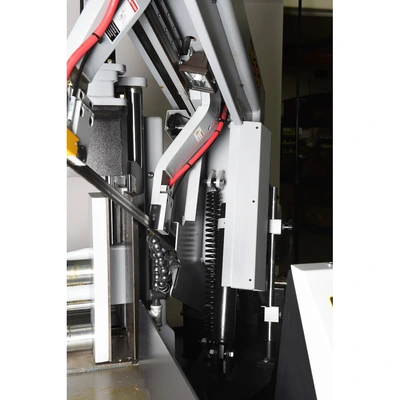

Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

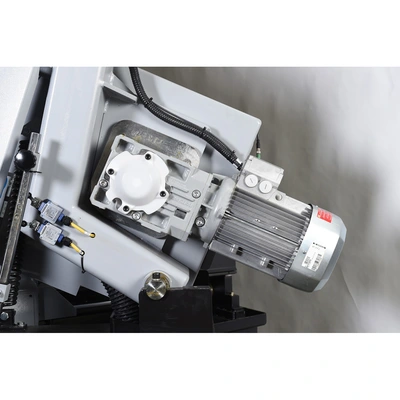

7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Blade chamber separates material from cut part

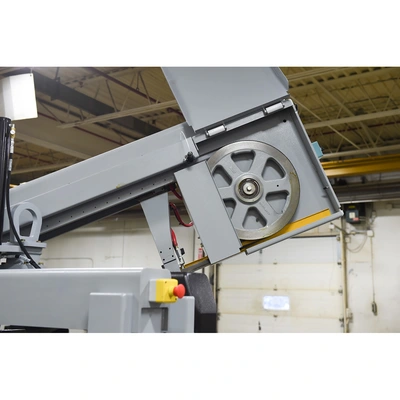

Cast iron band wheels

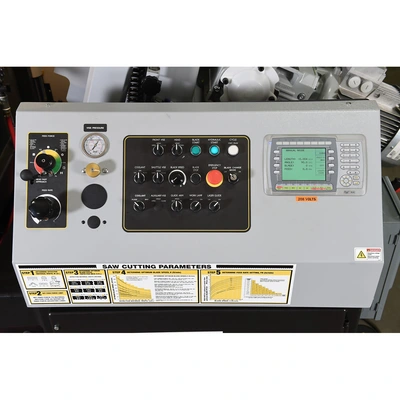

8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue

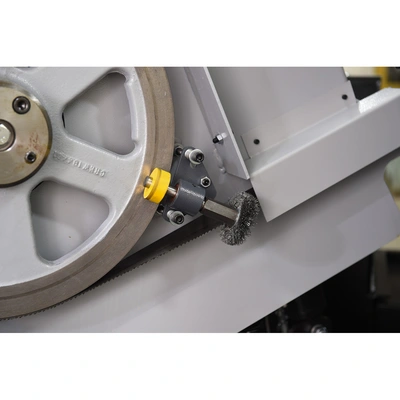

Replaceable blade brush
Robust steel base
Variable vise pressure

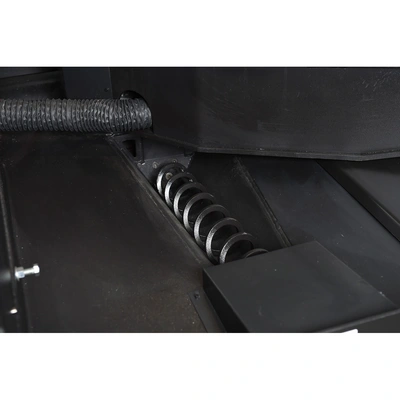

Automatic chip removal auger

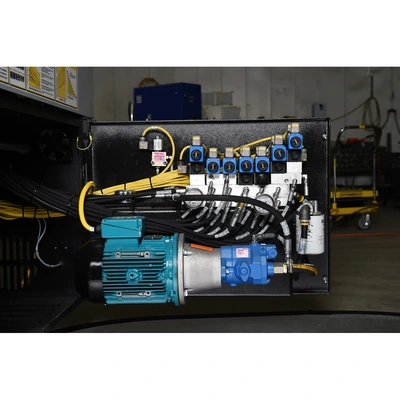

Easy access electrical panel and hydraulics
Hydraulic positive down feed
Blade breakage switch
Hardened replaceable wear plates on material vises
Hydraulic band tensioning
Hydraulic carbide guide tensioning
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Out of stock switch

16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Optional Features:
Blade deviation
Full capacity hydraulic overhead bundling
Chip bucket

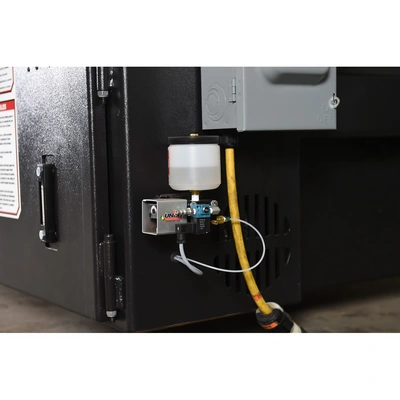

Mist lubrication
Remote console – 10′ cord
Vertical rollers
Idler conveyors
Powered conveyors

16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Optional Features:

Specifications

90° rectangle (h x w): 16″ x 25″
90° round: 16″
45° rectangle (h x w): 16″ x 15″
45° round: 16″
30° rectangle (h x w): 16″ x 9″
30° round: 11″
Blade Drive: 7.5 HP VFD
Blade Speed: 50-350 SFM
Blade Size: 1.25″ x 18′ 6″
Table Height: 32″
Voltages Available: 208, 240, 480, or 575 v
Weight: 7,400 lbs
Dimensions (w x l x h): 132″ x 90″ x 66″
Coolant Tank Capacity: 9 Gallons
Work Load: 8,000 lbs
