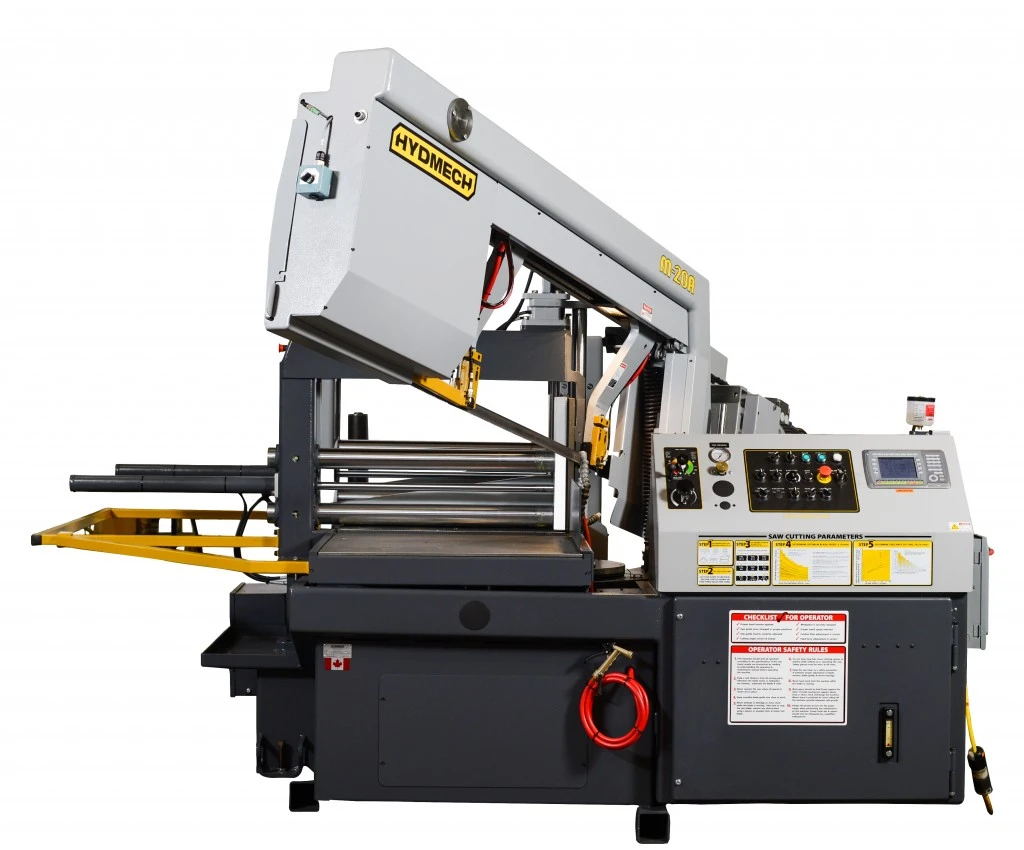

NEW HYD-MECH M-20A

20″ x 30″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-20A Specifications:

Standard Features:
Automatic programmable mitering with “go to” angle functionality
Automatic multi-indexing up to 33” in a single stroke
Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics Blade breakage switch
Hardened replaceable wear plates on material vises
Hydraulic band tensioning
Hydraulic carbide guide tensioning
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Out of stock switch
Variable vise pressure

20″ x 30″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-20A Optional Features:
Blade deviation
Full capacity hydraulic overhead bundling
Chip bucket
Mist lubrication
Remote console – 10’ cord
Outboard vise clamping options available upon request
Vertical rollers
Idler conveyors
Powered conveyors

20″ x 30″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-20A Optional Accessories:

90° rectangle (h x w): 20″ x 30″
90° round: 20″
45° rectangle (h x w): 20″ x 19″
45° round: 20″
30° rectangle (h x w): 20″ x 12″
30° round: 14″
Blade Drive: 10 HP VFD
Blade Speed: 50-350 SFM
Blade Size: 1.50″ x 20′ 6″
Table Height: 32″
Voltages Available: 208, 240, 480, or 575 v
Weight: 7,700 lbs
Dimensions (w x l x h): 129″ x 90″ x 110″
Coolant Tank Capacity: 9 Gallons
Work Load: 8,000 lbs
