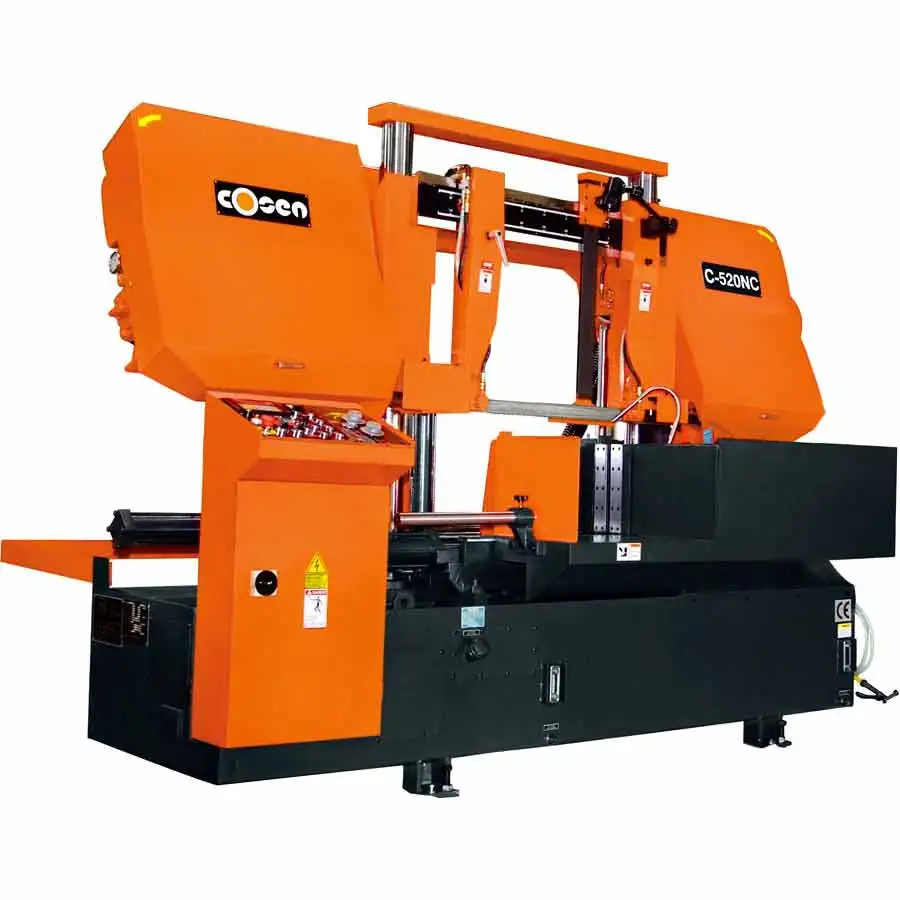

NEW COSEN C-520NC

The Cosen Model C-520NC comes with Smart NC-100 (SNC-100) technology which provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen’s C-520NC production machine, making it the perfect saw for mass production settings.
20.25″ x 20.25″ New Cosen Horizontal Band Saw Model C-520NC Features:
Hydraulic Dual Column Design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7″ HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999″ max length
Optional Accessories:
Chip Auger … $3095.00
Top Clamps … $3095.00
Vise Pressure Regulator … $1295.00
