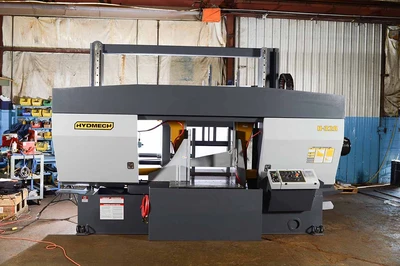

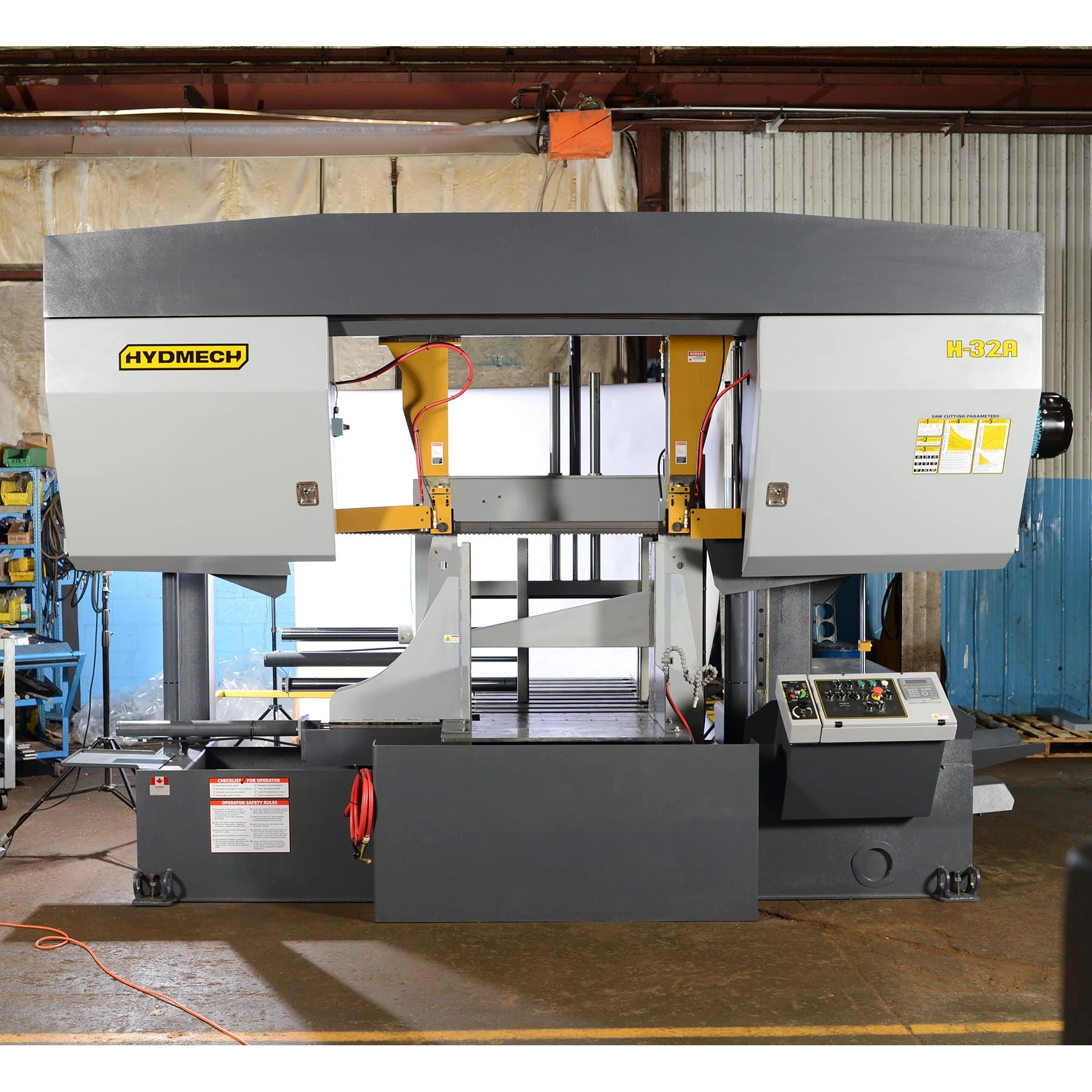

NEW HYD-MECH H-32A

32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Specifications:
32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Standard Features:
One piece design – no alignment necessary

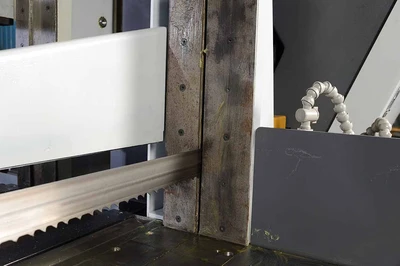

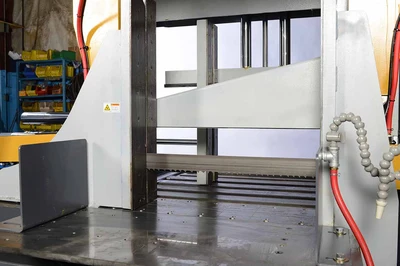

Spilt front vise (can be replaced by request with retractable datum vise at no charge)

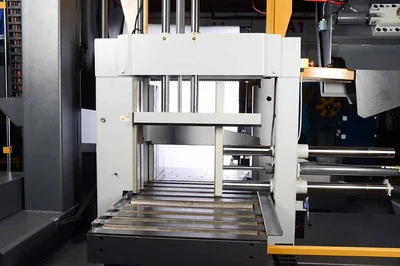

Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

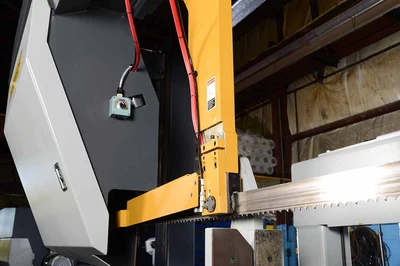

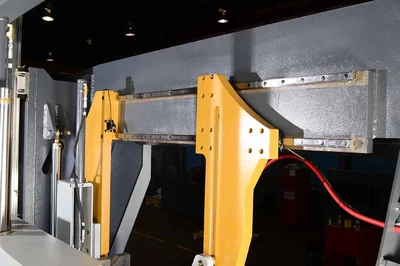

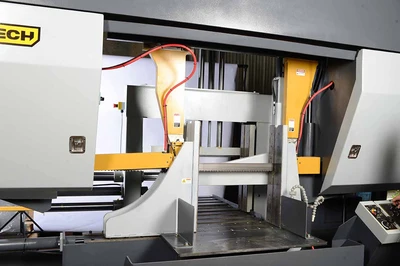

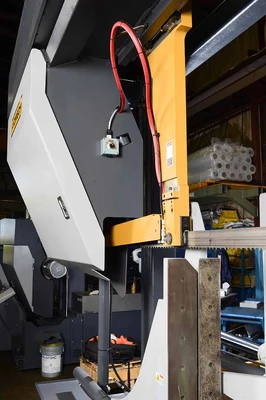

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Automatic chip removal auger

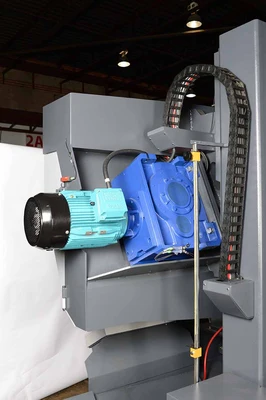

20 HP VFD. True direct blade drive – no belts/pulleys

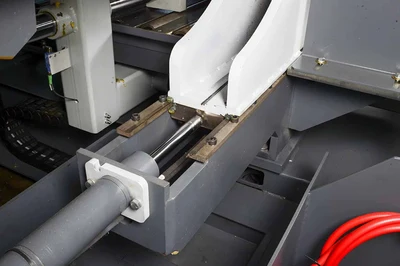

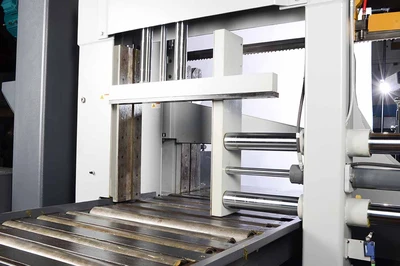

Full capacity, full stroking hydraulic vises
Hydraulic positive down feed

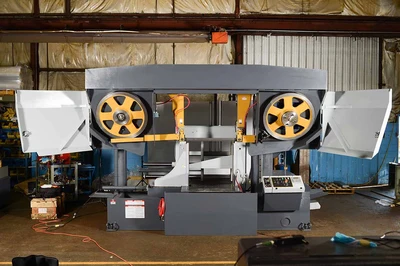

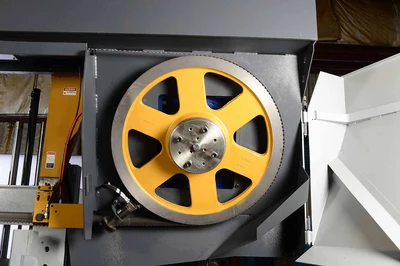

Cast iron band wheels
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.

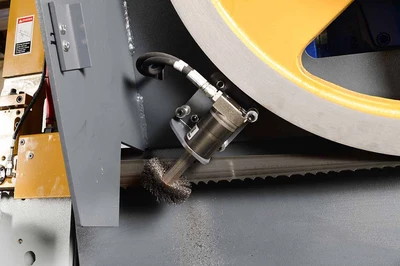

Replaceable blade brush
Robust steel base
Blade breakage switch
Variable vise pressure
Out of stock switch
Easy access electrical panel and hydraulics

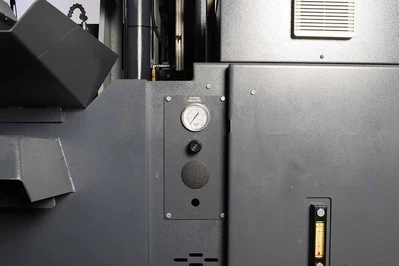

Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks

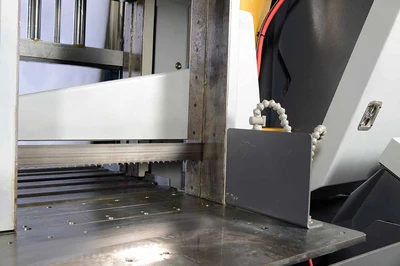

Flood coolant with wash down hose
Work light
Laser light

32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Optional Features:
Full capacity hydraulic overhead bundling
6° canted head
Blade deviation
Mist lubrication
Outboard vise clamping options available upon request
Remote console – 15’ cord
Roller discharge table
Vertical alignment rollers
Idler conveyors
Powered conveyors
32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Optional Accessories:

90° rectangle (h x w): 32″ x 32″
90° round: 32″
90° square: 32″
6° canted head rectangle (h x w): 28″ x 32″
6° canted head round: 28″
6° canted head square: 28″
Blade Drive: 20 HP
Blade Speed: 40-300 SFM
Blade Size: 2 5/8″ x 30′ 4″
Automatic Multi-Indexing: 0-34″
Table Height: 31″ (37″ w/ canted head)
Voltages Available: 480v (208, 240, 575 Optional Power transformer required)
Weight: 19,500 lbs
Dimensions (w x l x h): 182″ x 92″ x 120″
Coolant Tank Capacity: 40 gallons
Hydraulic Tank Capacity: 9.5 gallons
