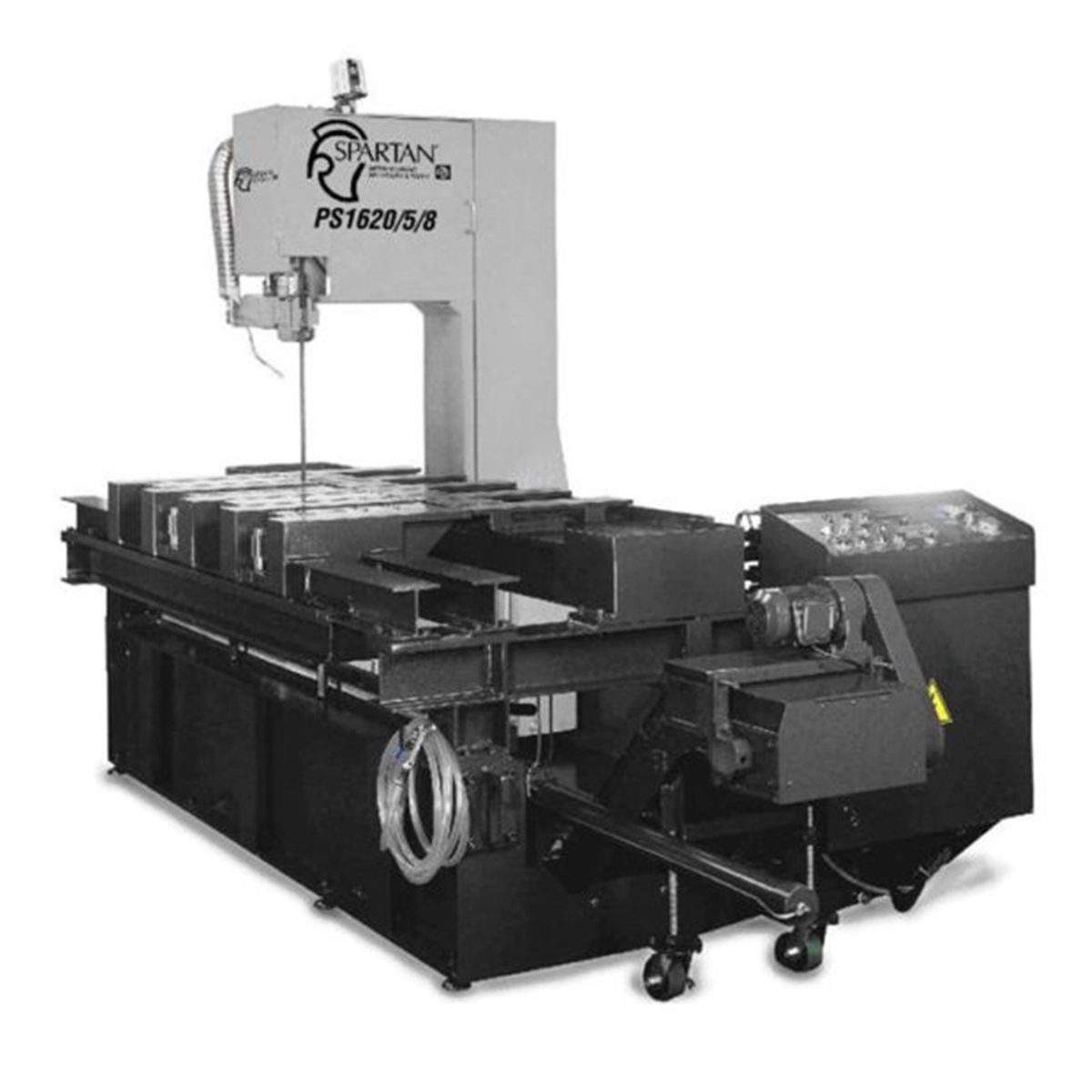

16” x 20” New Marvel Vertical Plate Saw PS 1620/5/8
Overview
Description
16” x 20” New Marvel Vertical Plate Saw PS 1620/5/8 Specifications:
16” x 20” New Marvel Vertical Plate Saw PS 1620/5/8 Standard Features:
Adjustable Hydraulic Guide Arm
Shuttle vise (optional)
Full Stroke Hydraulic Vise
Optional Automatic Controls
Automatic Chip Conveyor
Adjustable Back Stops
Hydraulic Roller Packs
Saw Head Moves on Precision Guide Rails
16” x 20” New Marvel Vertical Plate Saw PS 1620/5/8 Optional Accessories:
Laser Alignment Light
Out-of-square Detector
Hydraulically Lifted Table W/ball Transfer 5’
Hydraulically Lifted Table W/ball Transfer 8’
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouse and office is located just minutes north of Columbus, Ohio. With over 25 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or fill out the Request A Quote form on the right side of this page.
Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, LinkedIn and Instagram
Specifications
Capacity: 16” (400 mm) Height x 20” (500 mm) Width x 59” (1.5 meters) Length
Weight of Machine – 5: 13,200 lbs
Weight of Machine – 8: 17,600 lbs
Blade Tension: 40,000 PSI
Speed Range: 65 – 325 FPM (20-100m/min.) Inverter controlled infinitely variable blade speeds, with a heavy-duty worm gear transmission
Blade Size: 1.5” x .050” x 15′ 3.875” (41mm x 1.3mm x 4670mm)
Work Height: 24″
Motors: Blade Drive: 7.5 H.P., Feed Drive: 1 H.P., Hydraulic Pump: 2 H.P., Coolant Pump: .25 H.P.
Weight Capacity: 40,000 lbs
