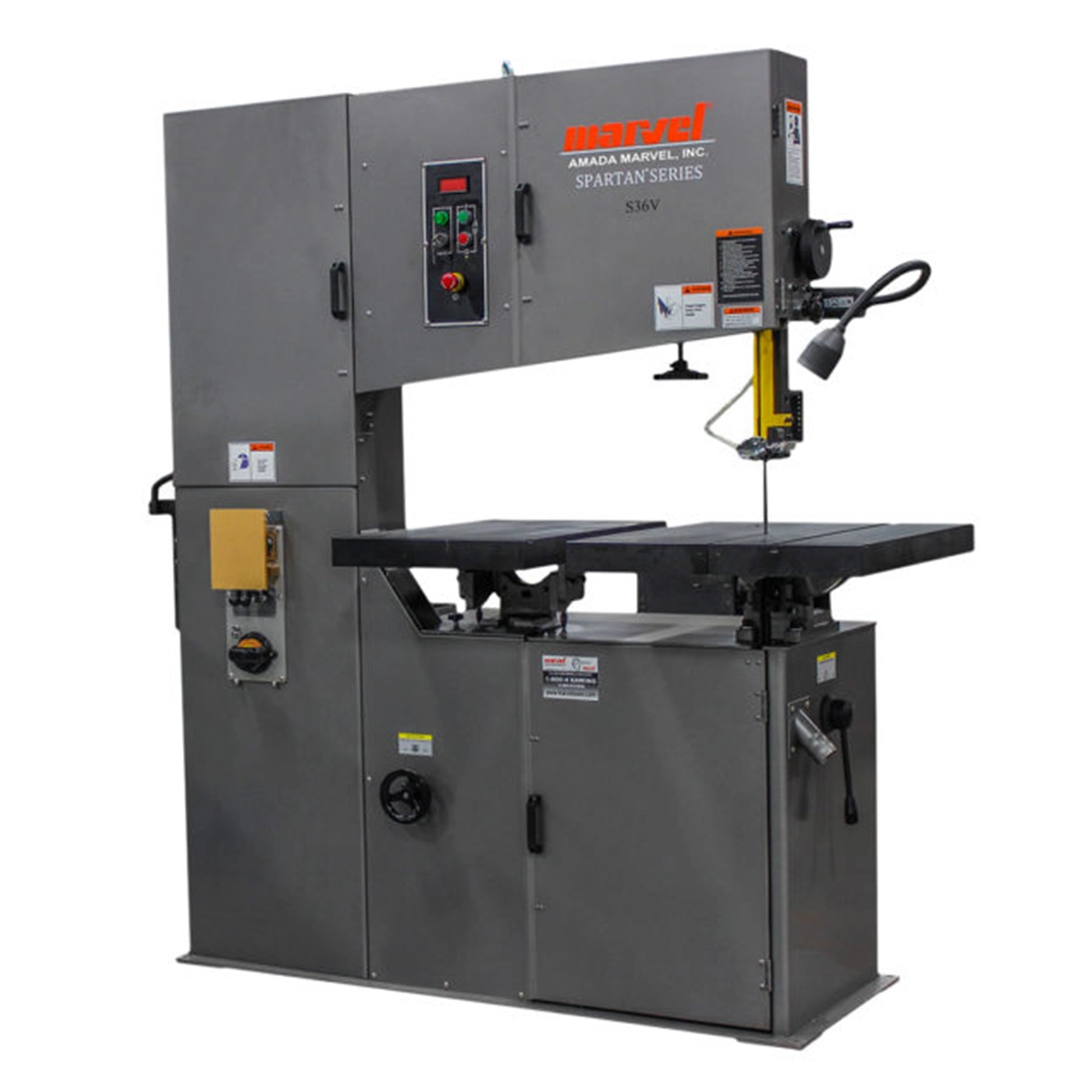

36″ x 20″ Marvel Spartan High Speed Vertical Contour Saw S-36V

36″ x 20″ Marvel Spartan High Speed Vertical Contour Saw S-36V Specifications:

36″ x 20″ Marvel Spartan High Speed Vertical Contour Saw S-36V Standard Features:
Blade Tension: The tension indicator assures fast, easy and accurate settings. The upper wheel has up to 3” (76 mm) of take-up.
 Blade Wheels: Balanced cast iron blade wheels are pre-loaded with ball bearing hubs to assure long life even when running at high speed.
Upper Guide Arm: Adjustable for varying material sizes. The guide arm is moved via a handwheel and rack and pinion device. Once the correct height is set, the arm can then be locked in place. The maximum height is 12” (305 mm).
Table: The table tilts 45 degrees right and 10 degrees left. Table size is 23.5” x 27.5” (597-699 mm) and 17.5” x 27.5” (445-699 mm). Work height is 40” (1016 mm).
Blade Welder: The blade welder has a capacity of 0.125”-0.75” (3-19 mm). With the annealer, grinder, and blade shear, complete blades can be easily made to whatever length is required. A blade can also be broken and re-welded for hole cutting.
Blade: 0.125″-1″ (3-25mm) Amada MGLB blade. This is the standard blade that is included with machine purchase.
20 MGLB, 16’5’’ long x 1/2” wide, 14 tooth pitch blades ship standard with every new saw purchase included in net price unless otherwise specified on purchase order. Please specify alternative blade type at time of purchase.
Work Light
Spray System for Blowing Chips, Misting, and Lubrication
Electric Tachometer
Electrical Door Interlocks
Rip Fence

Knob Twist Speed Adjustment
Wheel Dia. (2) 20-1/3” (516.4 mm), (1) 14-1/2” (368.3 mm)
Miter Gauge

Circle Cutting Attachment

Magnifying Glass

Manual Screw Feed

Cutting Capacity: 36″ x 20″
Throat Depth: 36″
Table Size (W x L): 23-1/2″ x 27-1/2″, 17-1/2″ x 27-1/2″
Table Tilt: Right 45° Left 10°
Blade Width: 1/8″ – 1″
Blade Length: 198-1/4″
Blade Welder Capacity: 1/4″ – 3/4″
Blade Speed: 50-415 and 550-5000 ft/min
Tension Control: Manual
Saw Blade Motor: 3 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz, Voltage must be specified when ordering
Power Requirement: kVA
Machine Dimensions (W x L x H): 69″ x 32″ x 81″
Table Height: 40″
Machine Weight: 1,760 lbs
