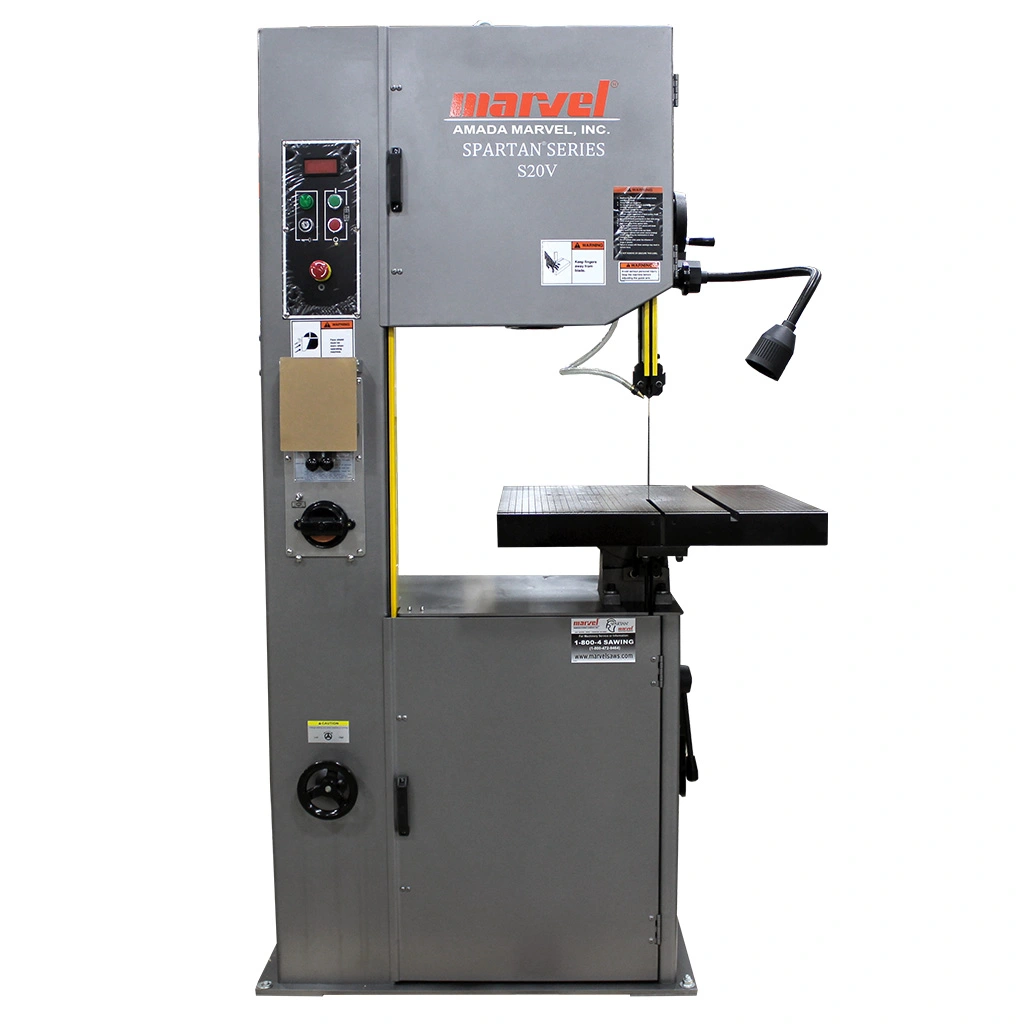

12″ x 20″ New Marvel Spartan Vertical Contour Band Saw Model S-20V Specifications:
12″ x 20″ New Marvel Spartan Vertical Contour Band Saw Model S-20V Features:
Blade Tension: The tension indicator assures fast, easy and accurate settings. The upper wheel has up to 3” (76 mm) of take-up.
Blade Wheels: Balanced cast iron blade wheels are pre-loaded with ball bearing hubs to assure long life even when running at high speed.
Upper Guide Arm: Adjustable for varying material sizes. The guide arm is moved via a handwheel and rack and pinion device. Once the correct height is set, the arm can then be locked in place. The maximum height is 12” (305 mm).
Table: The table tilts 45 degrees right and 10 degrees left. Table size is 23.5” x 27.5” (597-699 mm) and 17.5” x 27.5” (445-699 mm). Work height is 40” (1016 mm).
Blade Welder: The blade welder has a capacity of 0.125”-0.75” (3-19 mm). With the annealer, grinder, and blade shear, complete blades can be easily made to whatever length is required. A blade can also be broken and re-welded for hole cutting.
Blade: 0.125″-1″ (3-25mm) Amada MGLB blade. This is the standard blade that is included with machine purchase.
Rip Fence
Work Light
Miter Gauge
Chip Blower
Magnifying Glass
Manual Feed Screw
Electric Tachometer
Circle Cutting Attachment
Electrical Door Interlocks
Wheel Cast-Iron Rubber Crown
Cutting Capacity: 12″ x 20″
Throat Depth: 12″
Table Size (W x L): 23-1/2″ x 27-1/2″
Table Tilt: Right 45° Left 10°
Blade Width: 1/8″ – 1″
Blade Length: 160″
Blade Welder Capacity: 1/4″ – 3/4″
Blade Speed: 50-415 and 550-5000 ft/min
Tension Control: Manual
Saw Blade Motor: 3 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz, Voltage must be specified when ordering
Power Requirement: kVA
Machine Dimensions (W x L x H): 43″ x 32″ x 80″
Table Height: 40″
Machine Weight: 1,300 lbs
