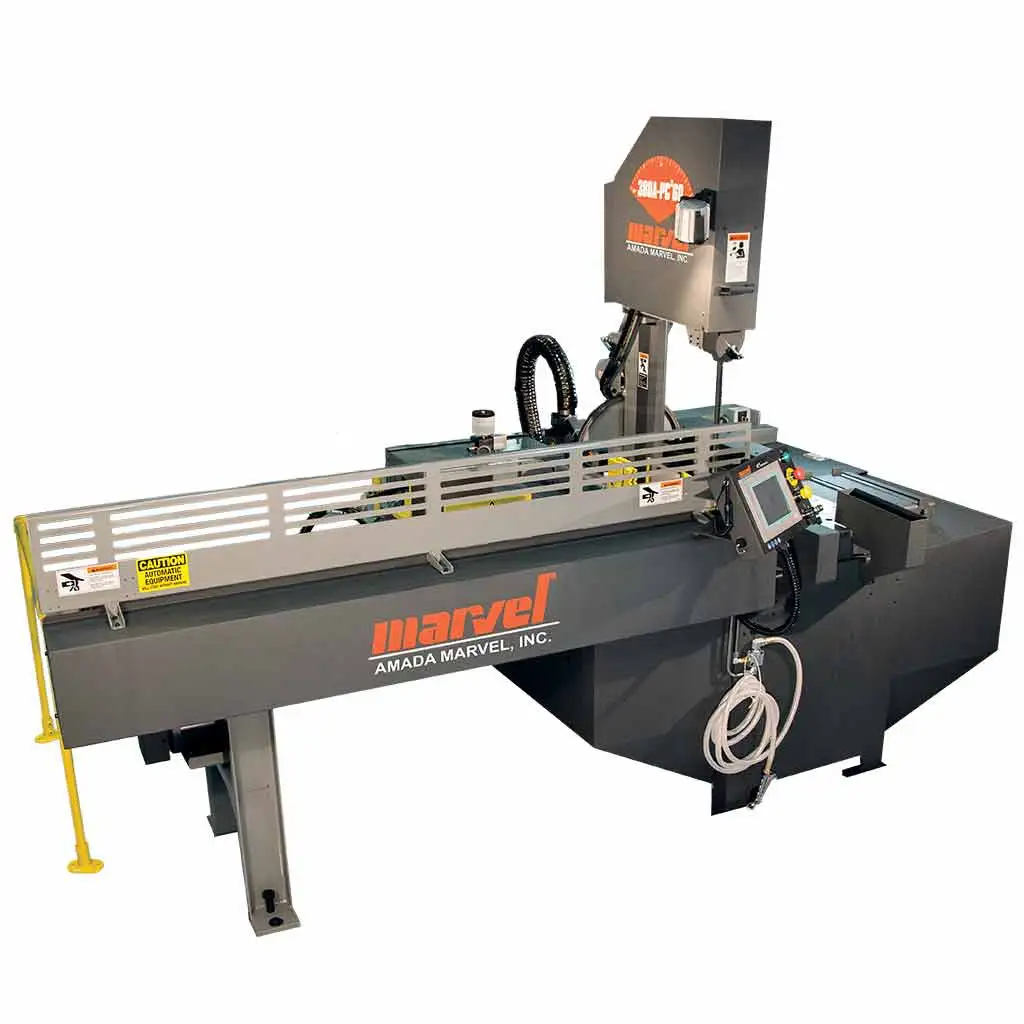

NEW MARVEL 380APC

The New Marvel Vertical Tilt-Frame Band Saw Model 380APC features the 48” double ball screw bar feed design with following support rollers, shuttle speeds up to 60fpm and repeatability tolerances of +/- .005“. The 380 bar feed uses preloaded recirculating linear guides with the electronic measuring scale implanted within the linear rail. The vises are two stage half stroking. The vise jaws are easily re-positioned on the clamping cylinder to cover a range of either 15” – 7.5” or 8.5” to 0.5”. The vise controls are conveniently located on the PC3 touch screen control.
15″ x 20″ New Marvel Vertical Tilt-Frame Band Saw Model 380APC Specifications:

15″ x 20″ New Marvel Vertical Tilt-Frame Band Saw Model 380APC Features:
SPEED RANGE: 60 – 400 fpm (18 – 122 m/min), blade speed can be automatically set when material is selected
TILTING COLUMN: For miter cutting up to 60° left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered with encoder feedback and PC3 Controller
0° – 3° CANTED COLUMN: Adjustable 0 or 3-degree forward approach angle, for notching, or increased efficiency in cutting of structural materials. Capacity at 0° 15″ x 20″. Capacity at 3° 14.5″ x 20″
JAMMED BLADE PROTECTION: Automatically senses resistance as the column returns and stops to prevent blade damage
BLADE GUIDE: Patent pending Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self-tensioning
FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time
VISES: Hydraulic 60° jaws are standard with Optional Variable Vise Pressure as well as square jaws
PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 9” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library
AUTOMATIC BAR FEED: 48″ double ball screw bar feed design with following support rollers, shuttle speeds up to 70fpm and repeatability tolerances of +/- .005″. The 380APC bar feed uses preloaded recirculating linear guides
EAGLE BEAK VTR BLADE: Eagle Beak VTR blade 16′ long x 1.25″ wide, with 3/6 tooth pitch. This is the standard blade that is included with machine purchase

Round 0° (diameter): 14.5″
Round at 45° right (diameter): 13.5″
Round at 45° left (diameter): 12.75″
Round at 60° right (diameter): 8.75″
Round at 60° left (diameter): 7.75″
Rectangle at 0° (W x H): 14.5″ x 20″
Rectangle at 45° right (W x H): 14.5″ x 13.5″
Rectangle at 45° left (W x H): 14.5″ x 12.75″
Rectangle at 60° right (W x H): 14.5″ x 8.75″
Rectangle at 60° left (W x H): 14.5″ x 7.75″
Maximum vise opening: 15.25″
Work load capacity: 1,000 lbs
Blade size (L x T x W): 16′ x 0.042″ x 1-1/4″
Blade speed: 60-400ft/min by Inverter
Tension control: Hydraulic
Cutting control: Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade feed force: 0 to 300 lbs
Type: Main Vise (Optional second vise is available to install)
Control: Hydraulic, Half Stroking with 6.7″ High x 11.4″ Wide 60° Faceplates
Saw blade: 5 HP
Hydraulic pump: 2 HP
Cutting fluid pump: 1/8 HP
Tilt gear: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Tank capacity: 26 gal
Pump type: Electric
Tank capacity: 14 gal
Pressure setting: 725 psi
Chip disposal: Chip conveyor
Index mechanism: Shuttle vise
Material index: 380APC: Double Ball Screw by Electrically Driven
380APCS: AC Servo Motor with Double Ball Screw
Feed stroke: 48″
Remnant Length: 19″ plus length of parts
Machine dimensions (W x L x H): 158.3″ x 111.8″ x 93.7″
Table Height (Above Floor): 40″
Machine Weight: 5,900 lbs
