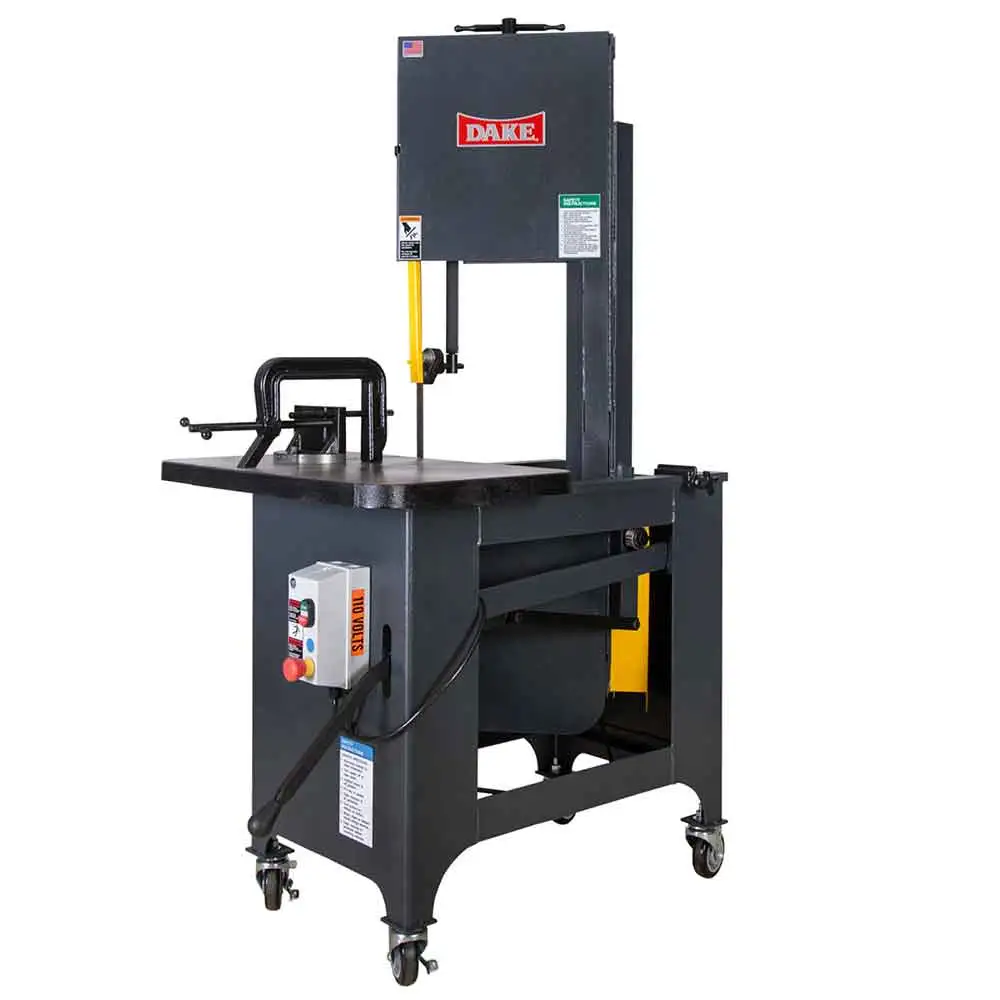

The Dake Work-A-Matic vertical bandsaw is a gravity feed saw that allows for hands-free operation.
Gravity feed. The blade feeds into the material by gravity, which allows for hands-free operation.
Fast set up. Effortless changes between a cut off saw, contour saw and rip saw. Fast set up makes it ideal for production.
Low voltage controls with thermal overload and E-stop for emergency stop and start situations.
Frame and base are heavy duty welded steel for rigidity. Built to handle the toughest environments.
Variable feed rate system with hydraulic feed regulator that features a convenient front mounted flow control valve.
Four blade speeds and infinitely adjustable blade pressure.
Enclosed guarding for step pulley and bottom wheel assembly.
C-Clamp assembly
One standard blade
Steel base
Cutting chart
Head lock
Miter gauge
Hydraulic feed control
Heavy duty locking caster
Work lamp
Part Number: 988040
Horsepower: 1
Voltage: 110V, Single phase
Blade Width: 1/4″ – 3/4″
Blade Length: 120″
Blade Speed: 70/140/270/540 fpm
Blade Travel: 9″
Band Wheels Number: 2
Band Wheels Size: 14″ diameter
Mitering: 45º
Maximum Work Height: 14-1/2″
Work Table Dimensions: 29″ x 18″
Worktable Tilt: Fixed
Worktable Height: 36-1/2″
Machine Height: 66″
Machine Floor Space: 29″ x 40″
Weight: 810 lbs
