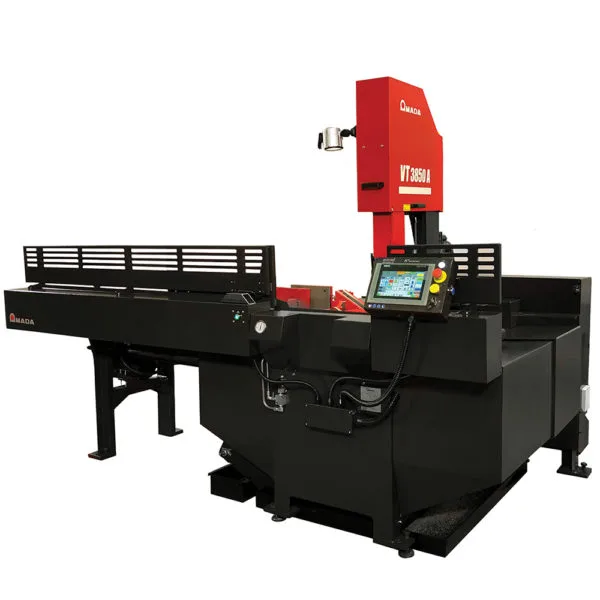

NEW AMADA VT3850A

The 15” x 20” New Amada Vertical Tilt Frame Band Saw Model VT3850A features 5 H.P. Automatic Indexing, ± 60° Miter Hydraulic Metal Cutting High-Speed Bandsaw with a Programmable Control and Direct Force Sensing Electric Ball Screw Feed.
15” x 20” New Amada Vertical Tilt Frame Band Saw Model VT3850A (380APC) Specifications:

15” x 20” New Amada Vertical Tilt Frame Band Saw Model VT3850A (380APC) Features:
SPEED RANGE: 60 – 400 fpm (18 – 122 m/min), blade speed can be automatically set when material is selected

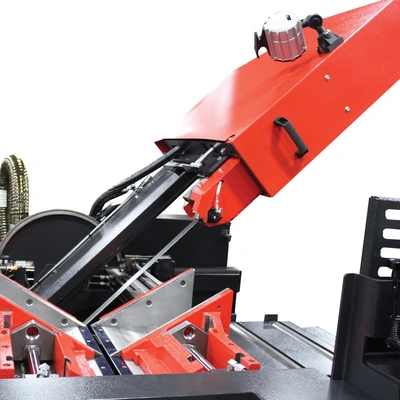

TILTING COLUMN: For miter cutting up to 60° left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered with encoder feedback and PC3 Controller
0° – 3° CANTED COLUMN: Adjustable 0 or 3-degree forward approach angle, for notching, or increased efficiency in cutting of structural materials. Capacity at 0° 15″ x 20″. Capacity at 3° 14.5″ x 20″
JAMMED BLADE PROTECTION: Automatically senses resistance as the column returns and stops to prevent blade damage

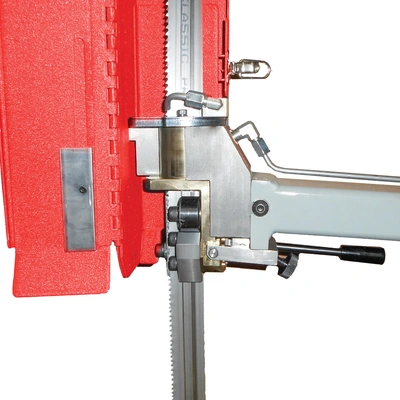

BLADE GUIDE: Patent pending Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self-tensioning
FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time

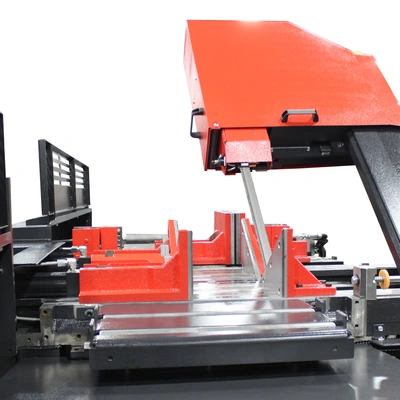

VISES: Hydraulic 60° jaws are standard with Optional Variable Vise Pressure as well as square jaws

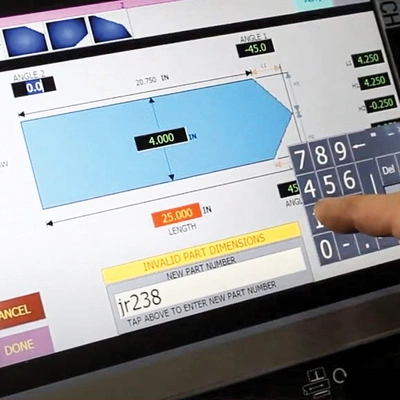

PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 9” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library

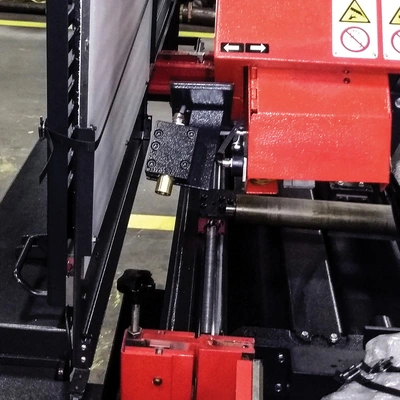

AUTOMATIC BAR FEED: 48″ double ball screw bar feed design with following support rollers, shuttle speeds up to 70fpm and repeatability tolerances of +/- .005″. The VT3850 bar feed uses preloaded recirculating linear guides
EAGLE BEAK VTR BLADE: Eagle Beak VTR blade 16′ long x 1.25″ wide, with 3/6 tooth pitch. This is the standard blade that is included with machine purchase
15” x 20” New Amada Vertical Tilt Frame Band Saw Model VT3850A (380APC)

Round 0° (diameter): 14.5″
Round at 45° right (diameter): 13.5″
Round at 45° left (diameter): 12.75″
Round at 60° right (diameter): 8.75″
Round at 60° left (diameter): 7.75″
Rectangle at 0° (W x H): 14.5″ x 20″
Rectangle at 45° right (W x H): 14.5″ x 13.5″
Rectangle at 45° left (W x H): 14.5″ x 12.75″
Rectangle at 60° right (W x H): 14.5″ x 8.75″
Rectangle at 60° left (W x H): 14.5″ x 7.75″
Maximum vise opening: 15.25″
Work load capacity: 1,000 lbs
Blade size (L x T x W): 16′ x 0.042″ x 1-1/4″
Blade speed: 60-400ft/min by Inverter
Tension control: Hydraulic
Cutting control: Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade feed force: 0 to 300 lbs
Type: Main Vise (Optional second vise is available to install)
Control: Hydraulic, Half Stroking with 6.7″ High x 11.4″ Wide 60° Faceplates
Saw blade: 5 HP
Hydraulic pump: 2 HP
Cutting fluid pump: 1/8 HP
Tilt gear: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Tank capacity: 26 gal
Pump type: Electric
Tank capacity: 14 gal

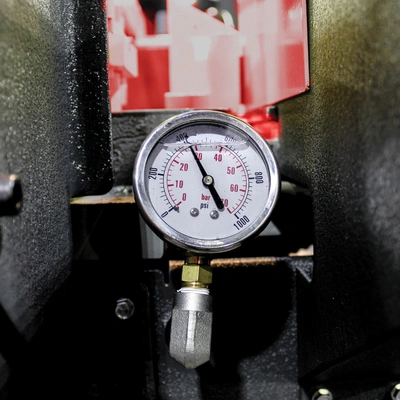

Pressure setting: 725 psi
Chip disposal: Chip conveyor
Index mechanism: Shuttle vise
Material index: VT3850A: Double Ball Screw by Electrically Driven
VT3850S: AC Servo Motor with Double Ball Screw
Feed stroke: 48″
Remnant Length: 19″ plus length of parts
Machine dimensions (W x L x H): 158.3″ x 111.8″ x 93.7″
Table Height (Above Floor): 40″
Machine Weight: 5,900 lbs
